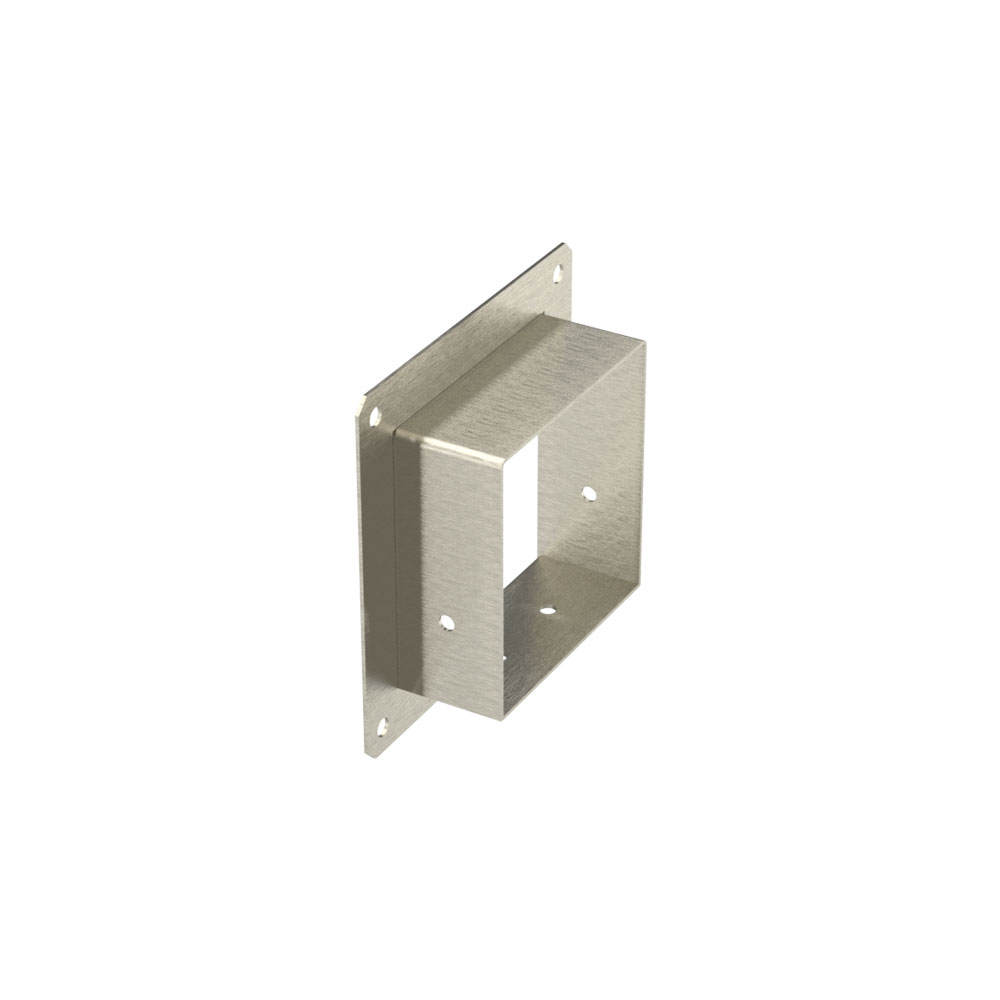

Product description
For mounting ducts to housings, cabinets, machinery etc.
Technical Data
-
Order No.: 1207-0610-00-00
-
Type: Cable duct system type 1207
-
Cross-section: 100 x 100 mm
-
Dimension F: 140 mm
-
Protection type: IP2X
-
Material: Stainless steel no. 1.4301
-
Sheet thickness: 1,5 mm
-
Weight: 0.3 kg
Notice
- This accessory is provided with pre-drilled holes for the attachment screws of the U-brackets or connection brackets.
- U-brackets or connection brackets are required for assembly to other accessories.
- The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.
- Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
- 1 adapter flange
1207-9001-05-08
Screw with Nut
Thread
M5
Length of thread
8 mm
Material
Stainless steel
Surface
unfinished
1207-9004-05-08
Screw with Washer
Thread
M5
Length of thread
8 mm
Material
Stainless steel
Surface
untreated
1207-0010-05-00
Cable Duct
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Length
500 mm
Material
Stainless steel no. 1.4301
1207-0010-10-00
Cable Duct
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Length
1000 mm
Material
Stainless steel no. 1.4301
1207-0010-20-00
Cable Duct
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Length
2000 mm
Material
Stainless steel no. 1.4301
1207-0310-13-00
Elbow
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Angle
45°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-0310-90-00
Elbow
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-0410-00-00
T-Section
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
