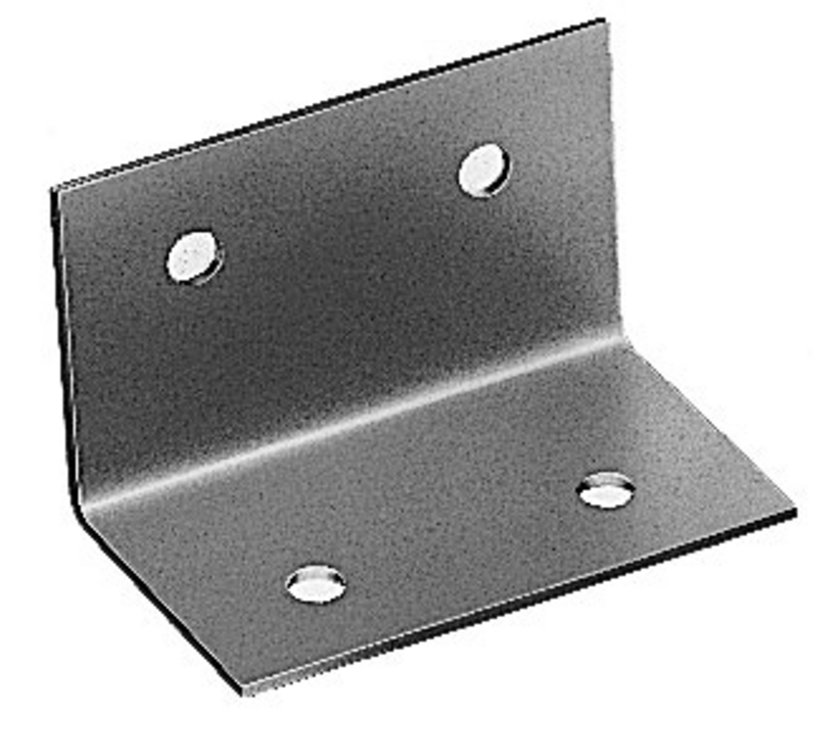

Connection Bracket

1204-0106-30-00

Connection Bracket

Product description

For assembly of cable ducts and accessories.

Technical Data

  • Order No.: 1204-0106-30-00
  • Type: Cable duct system type 1204
  • Cross-section: 60 x 60 mm/2,36 x 2,36"
  • Type: With pre-drilled holes
  • Material: Sheet steel
  • Surface: electrolytically-galvanised
  • Sheet thickness: 1,5 mm/0,0,6"

Notice

  • For assembly of straight cable ducts to elbows and T-sections.
  • For assembly of two elbows or T-sections directly side by side.
  • The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.
  • Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
  • 1 connection bracket
Screw with Nut
1204-9001-05-08
Screw with Nut
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
further information
Cable Duct
1204-0006-05-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
500 mm
Material
Sheet steel
further information
Cable Duct
1204-0006-10-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
1000 mm
Material
Sheet steel
further information
Cable Duct
1204-0006-20-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2000 mm
Material
Sheet steel
further information
T-Section
1204-0406-00-00
T-Section
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
90°
Routing direction
variable
Material
Sheet steel
further information
Save as PDF Save as PDF Direct enquiry

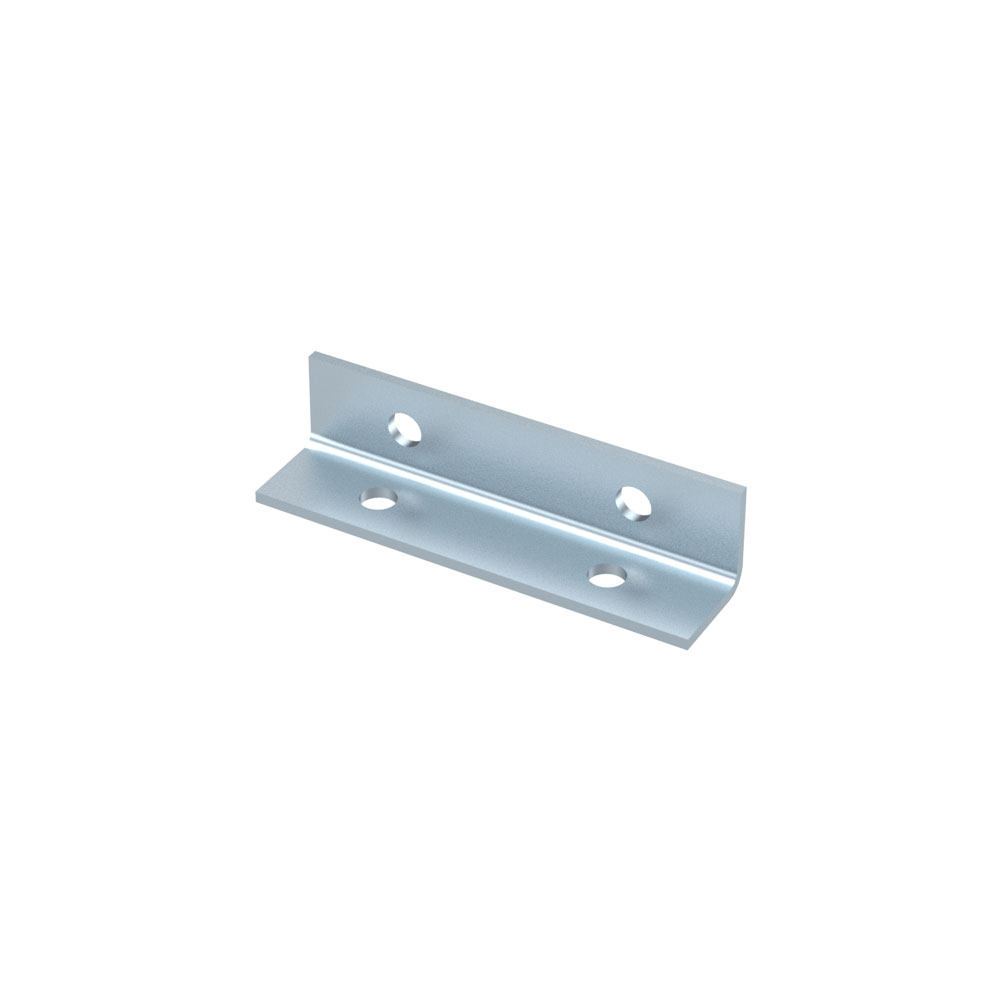

Connection Bracket
Connection Bracket
For assembly of cable ducts and accessories.
notice
1204-0106-30-01
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
With threads
1204-0106-40-00
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
45°
With pre-drilled holes
1204-0106-41-00
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
45°
With threads
1204-0106-50-90
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
90°
With pre-drilled holes
1204-0106-51-90
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
90°
With threads
1204-0106-60-00
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
22,5°
With pre-drilled holes
1204-0106-61-00
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
22,5°
With threads
1204-0110-30-00
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
With pre-drilled holes
1204-0110-30-01
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
With threads
1204-0110-40-35
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
45°
With pre-drilled holes
1204-0110-41-35
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
45°
With threads
1204-0110-50-90
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
90°
With pre-drilled holes
1204-0110-51-90
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
90°
With threads
1204-0110-60-57
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
22,5°
With pre-drilled holes
1204-0110-61-57
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
22,5°
With threads
1204-0115-30-01
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91"
With threads
1204-0115-41-35
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91"
45°
With threads
1204-0115-51-90
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91"
90°
With threads
1204-0115-61-57
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91"
22,5°
With threads
1207-0106-30-00
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
With pre-drilled holes
1207-0106-30-01
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
With threads
1207-0106-40-00
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
45°
With pre-drilled holes
1207-0106-41-00
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
45°
With threads
1207-0106-50-90
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
90°
With pre-drilled holes
1207-0106-51-90
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
90°
With threads
1207-0106-60-00
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
22,5°
With pre-drilled holes
1207-0106-61-00
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
22,5°
With threads
1207-0110-30-00
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
With pre-drilled holes
1207-0110-30-01
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
With threads
1207-0110-40-35
Cable duct system type 1207
45°
With pre-drilled holes
1207-0110-41-35
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
45°
With threads
1207-0110-50-90
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
90°
With pre-drilled holes
1207-0110-51-90
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
90°
With threads
1207-0110-60-57
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
22,5°
With pre-drilled holes
1207-0110-61-57
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
22,5°
With threads
1207-0115-30-01
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91"
180°
With threads
1207-0115-41-35
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91"
45°
With threads
1207-0115-51-90
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91"
22,5°
With threads
1207-0115-61-57
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91"
22,5°
With threads
