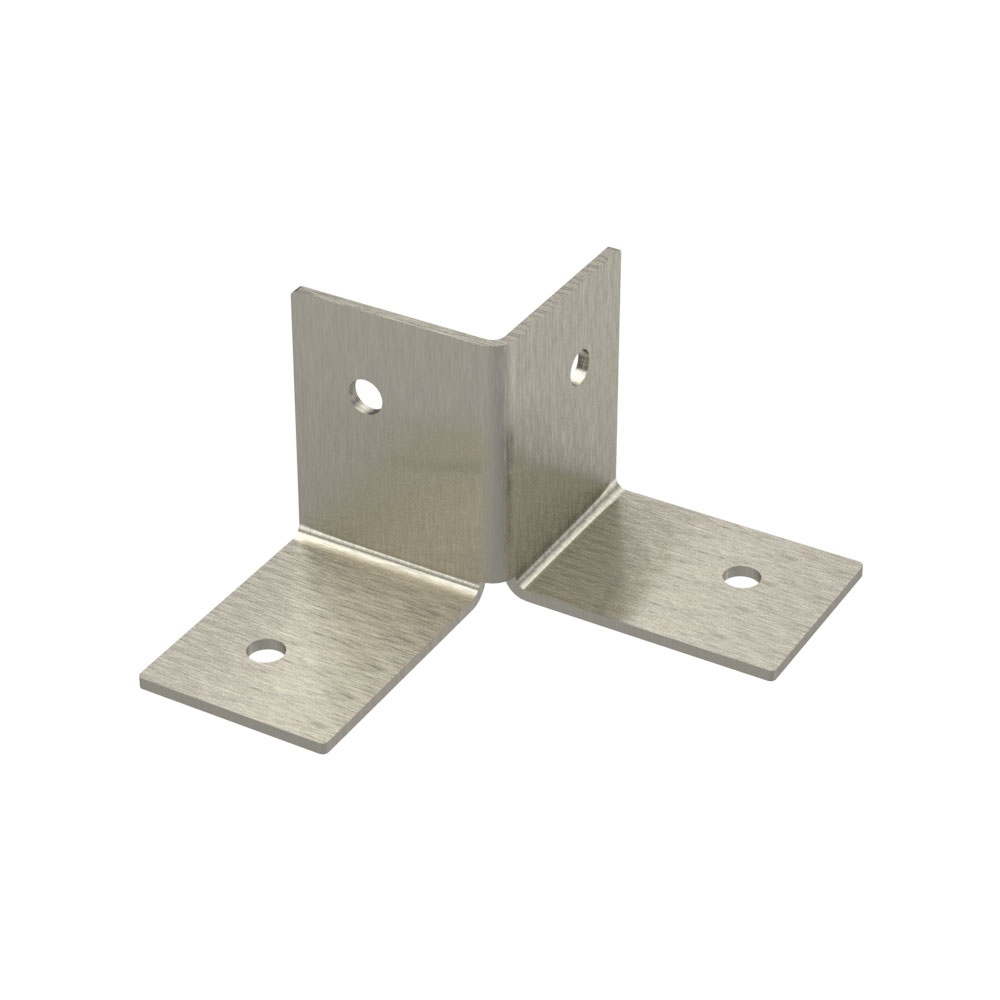

Connection Bracket
Connection Bracket
Connection Bracket

1207-0110-50-90

Connection Bracket

Product description

For assembly of cable ducts and accessories.

Technical Data

  • Order No.: 1207-0110-50-90
  • Type: Cable duct system type 1207
  • Cross-section: 100 x 100 mm
  • Angle: 90°
  • Type: With pre-drilled holes
  • Material: Stainless steel no. 1.4301
  • Surface: Externally brushed
  • Sheet thickness: 1,5 mm
  • Weight: 0.09 kg

Notice

  • 1 connection bracket
Cable Duct
1207-0010-05-00
Cable Duct
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Length
500 mm
Material
Stainless steel no. 1.4301
further information
Cable Duct
1207-0010-10-00
Cable Duct
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Length
1000 mm
Material
Stainless steel no. 1.4301
further information
Cable Duct
1207-0010-20-00
Cable Duct
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Length
2000 mm
Material
Stainless steel no. 1.4301
further information
Elbow
1207-0310-13-00
Elbow
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Angle
45°
Routing direction
variable
Material
Stainless steel no. 1.4301
further information
Elbow
1207-0310-90-00
Elbow
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
further information
T-Section
1207-0410-00-00
T-Section
Type
Cable duct system type 1207
Cross section
100 x 100 mm
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
further information
We need your consent
This content is provided by WSCAD GmbH. If you activate the content, personal data may be processed and cookies may be set.
Save as PDF Save as PDF Direct enquiry
Connection Bracket
Connection Bracket
For assembly of cable ducts and accessories.
notice
1204-0106-30-00
Cable duct system type 1204
60 x 60 mm
With pre-drilled holes
1204-0106-30-01
Cable duct system type 1204
60 x 60 mm
With threads
1204-0106-40-00
Cable duct system type 1204
60 x 60 mm
45°
With pre-drilled holes
1204-0106-41-00
Cable duct system type 1204
60 x 60 mm
45°
With threads
1204-0106-50-90
Cable duct system type 1204
60 x 60 mm
90°
With pre-drilled holes
1204-0106-51-90
Cable duct system type 1204
60 x 60 mm
90°
With threads
1204-0106-60-00
Cable duct system type 1204
60 x 60 mm
22,5°
With pre-drilled holes
1204-0106-61-00
Cable duct system type 1204
60 x 60 mm
22,5°
With threads
1204-0110-30-00
Cable duct system type 1204
100 x 100 mm
With pre-drilled holes
1204-0110-30-01
Cable duct system type 1204
100 x 100 mm
With threads
1204-0110-40-35
Cable duct system type 1204
100 x 100 mm
45°
With pre-drilled holes
1204-0110-41-35
Cable duct system type 1204
100 x 100 mm
45°
With threads
1204-0110-50-90
Cable duct system type 1204
100 x 100 mm
90°
With pre-drilled holes
1204-0110-51-90
Cable duct system type 1204
100 x 100 mm
90°
With threads
1204-0110-60-57
Cable duct system type 1204
100 x 100 mm
22,5°
With pre-drilled holes
1204-0110-61-57
Cable duct system type 1204
100 x 100 mm
22,5°
With threads
1204-0115-30-01
Cable duct system type 1204
150 x 150 mm
With threads
1204-0115-41-35
Cable duct system type 1204
150 x 150 mm
45°
With threads
1204-0115-51-90
Cable duct system type 1204
150 x 150 mm
90°
With threads
1204-0115-61-57
Cable duct system type 1204
150 x 150 mm
22,5°
With threads
1207-0106-30-00
Cable duct system type 1207
60 x 60 mm
With pre-drilled holes
1207-0106-30-01
Cable duct system type 1207
60 x 60 mm
With threads
1207-0106-40-00
Cable duct system type 1207
60 x 60 mm
45°
With pre-drilled holes
1207-0106-41-00
Cable duct system type 1207
60 x 60 mm
45°
With threads
1207-0106-50-90
Cable duct system type 1207
60 x 60 mm
90°
With pre-drilled holes
1207-0106-51-90
Cable duct system type 1207
60 x 60 mm
90°
With threads
1207-0106-60-00
Cable duct system type 1207
60 x 60 mm
22,5°
With pre-drilled holes
1207-0106-61-00
Cable duct system type 1207
60 x 60 mm
22,5°
With threads
1207-0110-30-00
Cable duct system type 1207
100 x 100 mm
With pre-drilled holes
1207-0110-30-01
Cable duct system type 1207
100 x 100 mm
With threads
1207-0110-40-35
Cable duct system type 1207
45°
With pre-drilled holes
1207-0110-41-35
Cable duct system type 1207
100 x 100 mm
45°
With threads
1207-0110-51-90
Cable duct system type 1207
100 x 100 mm
90°
With threads
1207-0110-60-57
Cable duct system type 1207
100 x 100 mm
22,5°
With pre-drilled holes
1207-0110-61-57
Cable duct system type 1207
100 x 100 mm
22,5°
With threads
1207-0115-30-01
Cable duct system type 1207
150 x 150 mm
180°
With threads
1207-0115-41-35
Cable duct system type 1207
150 x 150 mm
45°
With threads
1207-0115-51-90
Cable duct system type 1207
150 x 150 mm
22,5°
With threads
1207-0115-61-57
Cable duct system type 1207
150 x 150 mm
22,5°
With threads
