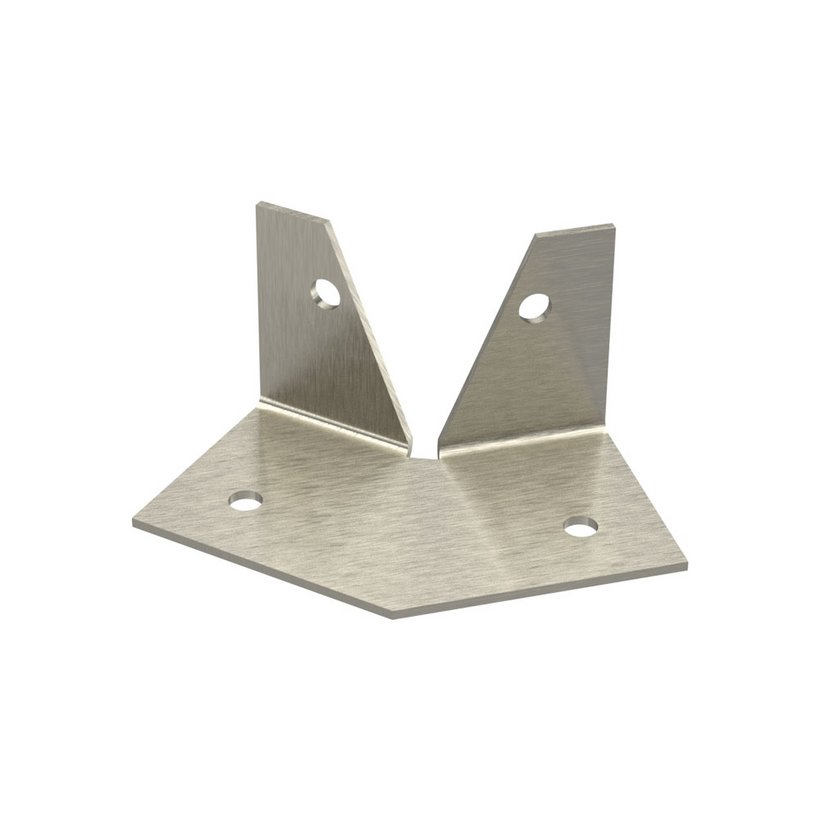

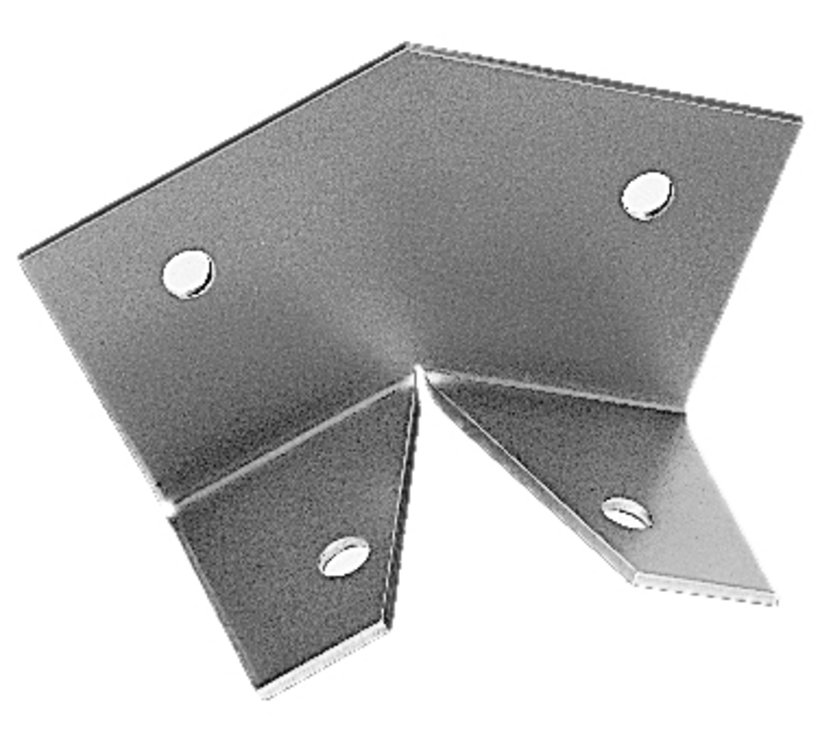

Connection Bracket

1207-0110-40-35

Connection Bracket

Product description

For assembly of cable ducts and accessories.

Technical Data

  • Order No.: 1207-0110-40-35
  • Type: Cable duct system type 1207
  • Angle: 45°
  • Type: With pre-drilled holes
  • Material: Stainless steel no. 1.4301
  • Surface: Externally brushed
  • Sheet thickness: 1,5 mm/0,0,6"
  • Weight: 0.09 kg

Notice

  • For assembly of straight cable ducts to elbows and T-sections.
  • For assembly of two elbows or T-sections directly side by side.
  • The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.
  • Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
  • 1 connection bracket
Cable Duct
1207-0010-05-00
Cable Duct
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Length
500 mm
Material
Stainless steel no. 1.4301
further information
Cable Duct
1207-0010-10-00
Cable Duct
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Length
1000 mm
Material
Stainless steel no. 1.4301
further information
Cable Duct
1207-0010-20-00
Cable Duct
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Length
2000 mm
Material
Stainless steel no. 1.4301
further information
Elbow
1207-0310-13-00
Elbow
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Angle
45°
Routing direction
variable
Material
Stainless steel no. 1.4301
further information
Elbow
1207-0310-90-00
Elbow
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
further information
T-Section
1207-0410-00-00
T-Section
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
further information
Save as PDF Save as PDF Direct enquiry
Connection Bracket
Connection Bracket
For assembly of cable ducts and accessories.
notice
1204-0106-30-00
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
With pre-drilled holes
1204-0106-30-01
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
With threads
1204-0106-40-00
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
45°
With pre-drilled holes
1204-0106-41-00
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
45°
With threads
1204-0106-50-90
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
90°
With pre-drilled holes
1204-0106-51-90
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
90°
With threads
1204-0106-60-00
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
22,5°
With pre-drilled holes
1204-0106-61-00
Cable duct system type 1204
60 x 60 mm/2,36 x 2,36"
22,5°
With threads
1204-0110-30-00
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
With pre-drilled holes
1204-0110-30-01
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
With threads
1204-0110-40-35
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
45°
With pre-drilled holes
1204-0110-41-35
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
45°
With threads
1204-0110-50-90
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
90°
With pre-drilled holes
1204-0110-51-90
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
90°
With threads
1204-0110-60-57
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
22,5°
With pre-drilled holes
1204-0110-61-57
Cable duct system type 1204
100 x 100 mm/3,94 x 3,94"
22,5°
With threads
1204-0115-30-01
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91"
With threads
1204-0115-41-35
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91"
45°
With threads
1204-0115-51-90
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91"
90°
With threads
1204-0115-61-57
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91"
22,5°
With threads
1207-0106-30-00
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
With pre-drilled holes
1207-0106-30-01
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
With threads
1207-0106-40-00
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
45°
With pre-drilled holes
1207-0106-41-00
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
45°
With threads
1207-0106-50-90
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
90°
With pre-drilled holes
1207-0106-51-90
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
90°
With threads
1207-0106-60-00
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
22,5°
With pre-drilled holes
1207-0106-61-00
Cable duct system type 1207
60 x 60 mm/2,36 x 2,36"
22,5°
With threads
1207-0110-30-00
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
With pre-drilled holes
1207-0110-30-01
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
With threads
1207-0110-41-35
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
45°
With threads
1207-0110-50-90
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
90°
With pre-drilled holes
1207-0110-51-90
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
90°
With threads
1207-0110-60-57
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
22,5°
With pre-drilled holes
1207-0110-61-57
Cable duct system type 1207
100 x 100 mm/3,94 x 3,94"
22,5°
With threads
1207-0115-30-01
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91"
180°
With threads
1207-0115-41-35
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91"
45°
With threads
1207-0115-51-90
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91"
22,5°
With threads
1207-0115-61-57
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91"
22,5°
With threads
