Mounting plate
- Depth adjustable
- häwa "click"
- C-edge
Product description
Safe and quick fixing by means of häwa "click" locking device!
Mounting plate up to cabinet width 1200 mm with C-edge. For cabinet width 1600/2000 mm, the mounting plate is reinforced with U-sections.
Protective ground connection according to DIN EN 61439-1 with ground screw.
Technical Data
-
Order No.: 0348-6018-00-13
-

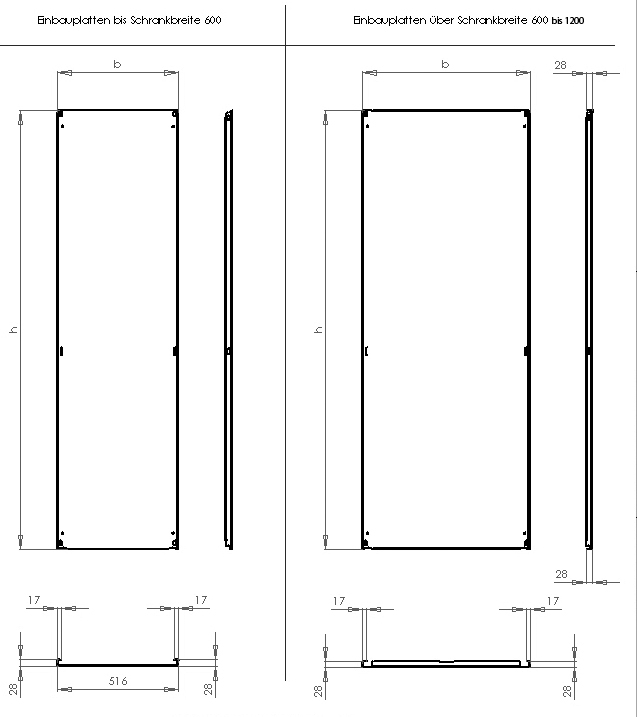

Dimension: Width : 516 mm Height : 1680 mm Suitabel for width : 600 mm Suitable for height : 1800 mm
-
Surface: Galvanized
-
Material: Sheet steel
-
Weight: 19.2 kg
-
Protective ground connection: according to DIN EN 61439-1
-
Sheet thickness: Moungting panel: 2,5 mm
Notice
- The mounting instructions are included in all operation manuals of H3X5 and H3X0 cabinets.
- Mounting plate complete with hardware and ground connector screw. When transporting or operating in harsh environments (vibrations, shock), fix the mounting plate at the lower locking bracket with M8x16 serrated locking screws.
- Mounting plate complete with mounting bracket set type 3080-7111-91-06 and grounding stud.
