Product description
Safe and quick fixing by means of häwa "click" locking device!

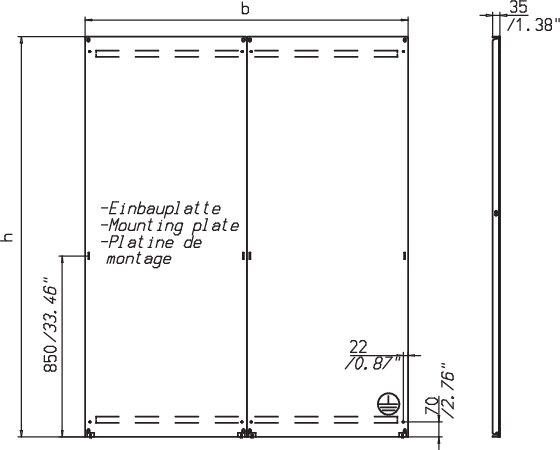

Mounting plate up to cabinet width 1200 mm with C-edge. For cabinet width 1600/2000 mm, the mounting plate is reinforced with U-sections.
Protective ground connection according to DIN EN 61439-1 with ground screw.
Technical Data
-
Order No.: 0348-2020-00-13
-
Dimension: Width : 1916 mm Height : 1880 mm Suitabel for width : 2000 mm Suitable for height : 2000 mm
-
Surface: Galvanized
-
Material: Sheet steel
-
Weight: 99 kg
-
Protective ground connection: according to DIN EN 61439-1
-
Sheet thickness: Moungting panel: 3 mm
Notice
- The mounting instructions are included in all operation manuals of H3X5 and H3X0 cabinets.
- Mounting plate complete with hardware and ground connector screw. When transporting or operating in harsh environments (vibrations, shock), fix the mounting plate at the lower locking bracket with M8x16 serrated locking screws.
- Mounting plate complete with mounting bracket set type 3080-7111-91-06 and grounding stud.
0390-2020-40-07

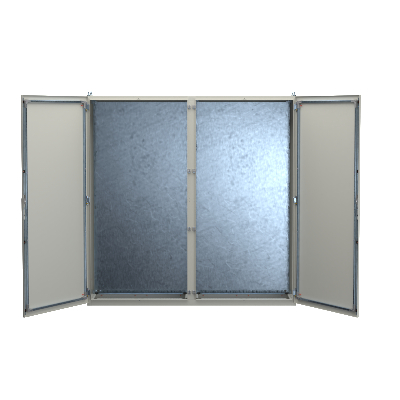

Free-Standing cabinets Sheet steel H390, double door
Width
2000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
Designed according to IP55
Approval
CE
0390-2020-40-17
Free-Standing cabinets Sheet steel H390, double door
Width
2000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
Designed according to IP55
Approval
CE
