Product description

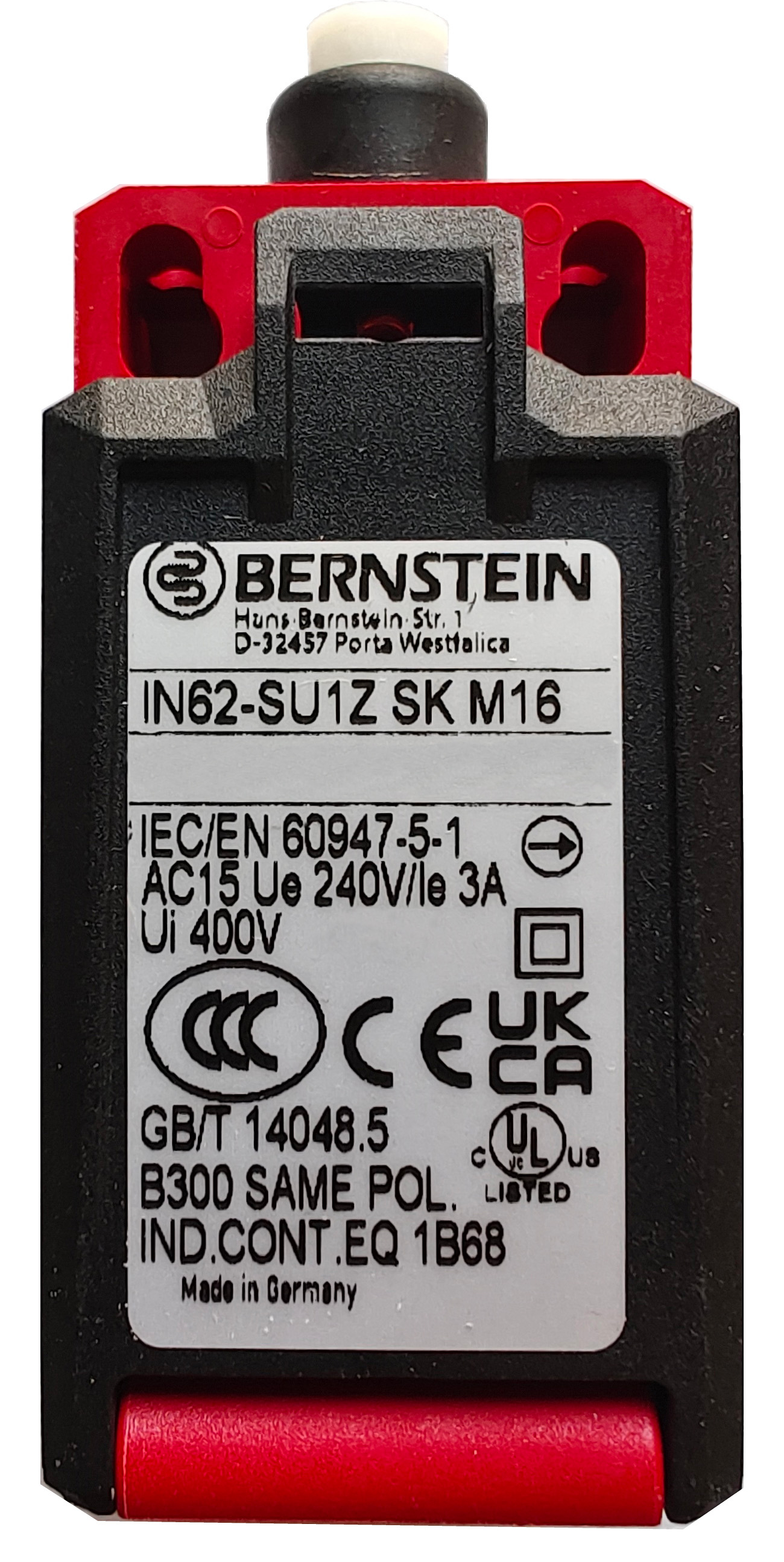

The sturdy plastic position switch is designed for use in mechanical and plant engineering applications. The switching unit(1 NC/1 NO) can reliably switch even the smallest currents of 1 mA at 24 VDC. The switch is operated exclusively via a plunger. Mounting hardware (M4 screws and nuts) is included in the scope of delivery.
The switch is operated via a plunger. Mounting hardware (M4 screws and nuts) is included in the scope of delivery.
Technical Data
-
Order No.: 3080-0041-61-00
-
Contact type: 1 Normally open, 1 normally closed
-
SPANNUNG_DIC: 240 V AC (50 Hz/60 HZ), 24 V DC
-
Cable entry: M16x1,5
-
Conventional thermal current: lthe 5 A
-
Utilization category: AC 15, U/l 240 V/3 A
-
Type: Plunger
Notice
- You can find the technical data sheet and the operating and installation instructions under “Downloads.”
- 1 position switch with M16 twist nipple and mounting hardware
Assembly instructions:
CAD data and other file formats:
