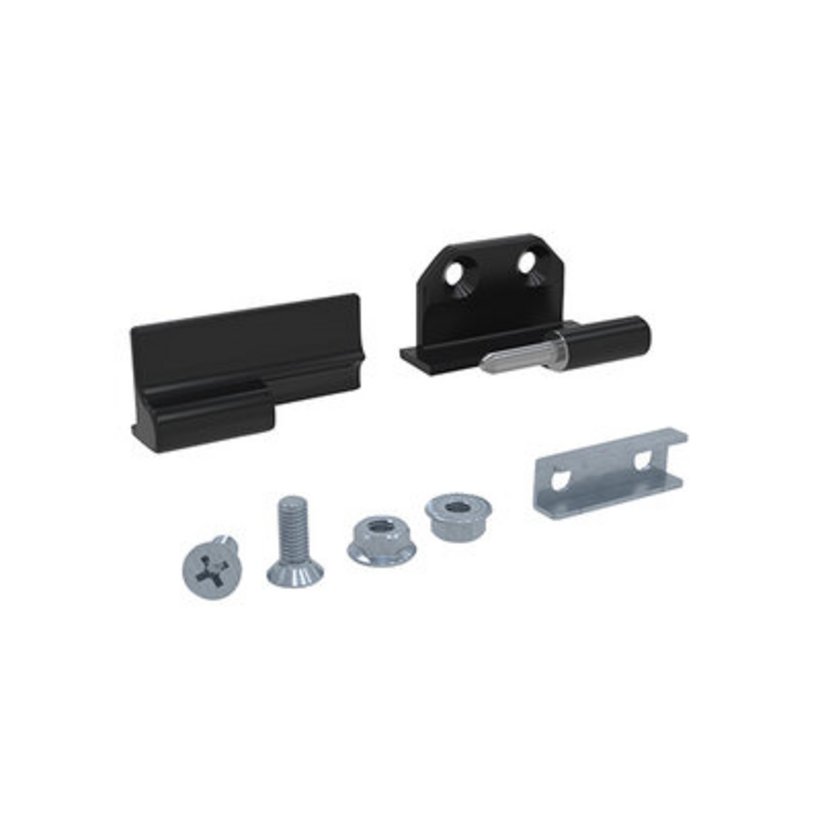

Product description
Door thickness max. 4 mm
Attachment to cabinet (2x M6)
Attachment to door (2x M6), required drillings 2x ø 10 mm
Technical Data
-
Order No.: 3080-7218-95-43
-
Material: zinc die-casting
-
Surface: black powder coated
-
Material and Surface: hinge pin: stainless steel 1.4305
fixing material: galvanized steel -
Type: for doors hinged to the left side
Notice
- 180° screw-on hinge, right stop: 3080-7218-95-33
- Chromed version on request
- 1 Hinge with fixing material
