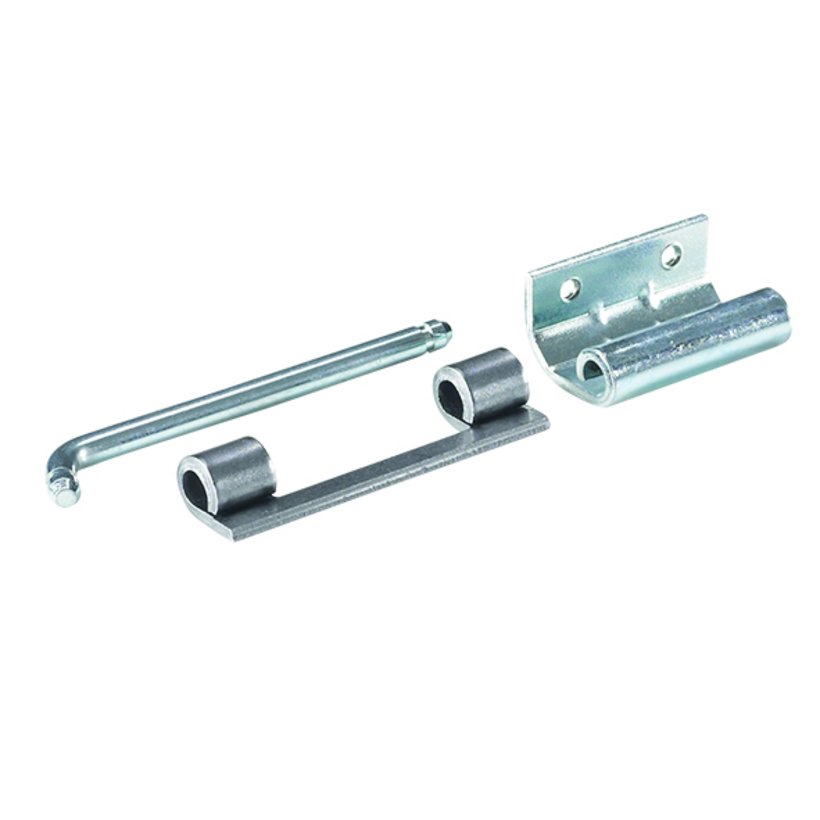

Hinge 120°, L-shaped, detachable

3080-0220-69-00

Hinge 120°, L-shaped, detachable

  • Fixation on frame connector: for screwing or welding
  • Fixation on door: for welding
  • For overlaying doors

Product description

Internal hinge.

Applicable on the right and on the left.

Opening angle of door 120°.

Technical data

  • Article number: 3080-0220-69-00
  • PRODUKTGRUPPENNAMEEBENE4: Concealed hinges
  • Material: Sheet steel
  • Surface: untreated

Notice

  • Hinge pin with safety disk DIN 6799 size 4, can be protected from falling out. Safety disk is not contained in scope of delivery. Hinge for a 4 mm higher door splay on request.
  • 1 hinge with hinge pin.
CAD data and other illustrations:
Hinge 120°, L-shaped, detachable
Hinge 120°, L-shaped, detachable
Internal hinge.
Applicable on the right and on the left.
Opening angle of door 120°.

Remember
Sheet steel
untreated
Stainless steel no. 1.4301
Unfinished
