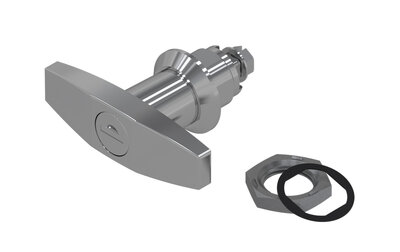

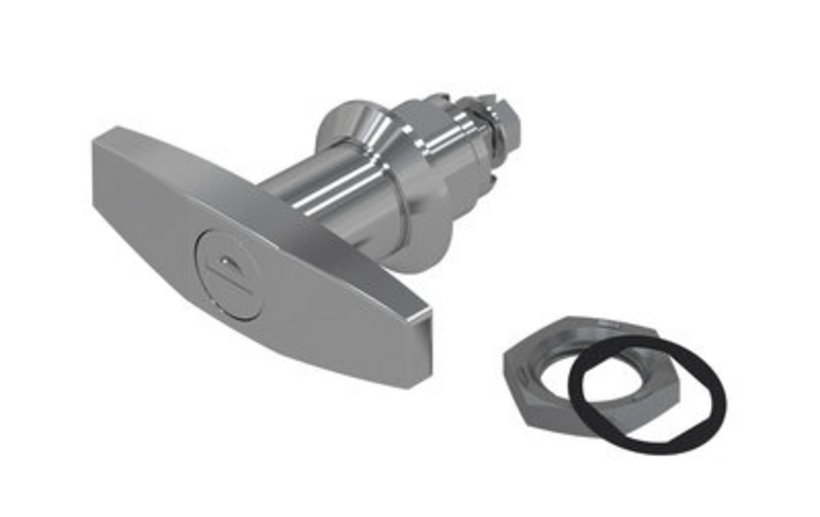

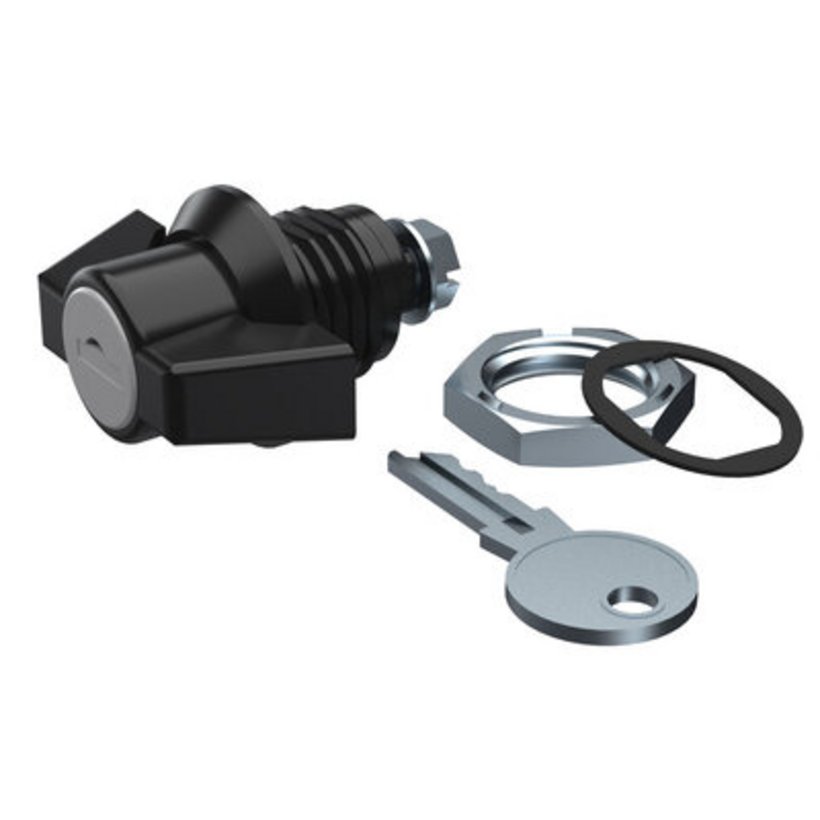

Toggle quarter turn latch lock D1
Product description
Screw-in toggle quarter turn latch lock for housing with installation holes 22.5 x 20.1 mm and 23.1 x 20.2 mm
Applicable as right or left hand lock.
Technical Data
-
Order No.: 3070-7502-13-30
-
Material: Housing + nuts: zinc die-casting
Toggle: polyamide -
Surface: Housing: black
Toggle: black -
Closing stroke: 90 °
-
Installation opening: 22,5 x 20,1 mm or 23,1 x 20,2 mm
Notice
- Please determine the required dimension "b" of the crank to select the suitable latch.
- Suitable locking tongue, see accessories.
- Toggle quarter turn latch lock with seal and grounding nut
- 2 keys
3070-0304-23-00
Hook latch for quarter turn latch locks
Locking height
18 mm
Material
Sheet steel
Type
Small version
3070-0304-28-00
Hook latch for quarter turn latch locks
Locking height
18 mm
Material
Sheet steel
Type
Big version
3070-0314-06-00
Latch for slide bars
b-Dimension
6 mm
Material
Sheet steel
With or without bolt
with
