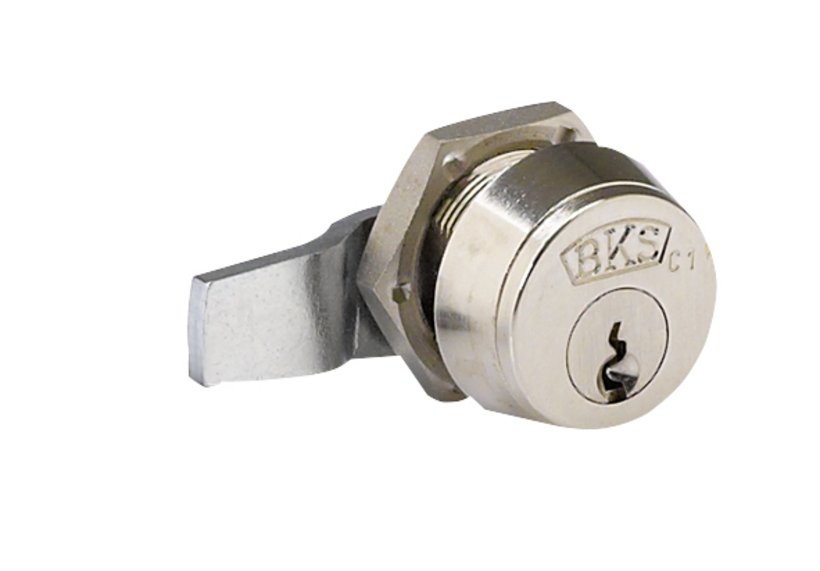

Product description
Screwable
Key can only be extracted in closed state
Technical Data
-
Order No.: 3070-7393-01-17
-
Surface: nickel-plated
-
Direction of closing: Clockwise closing
-
Latch length: 34 mm
-
Closing stroke: 90 °
-
Locking: E1
-
Protection type: IP40
-

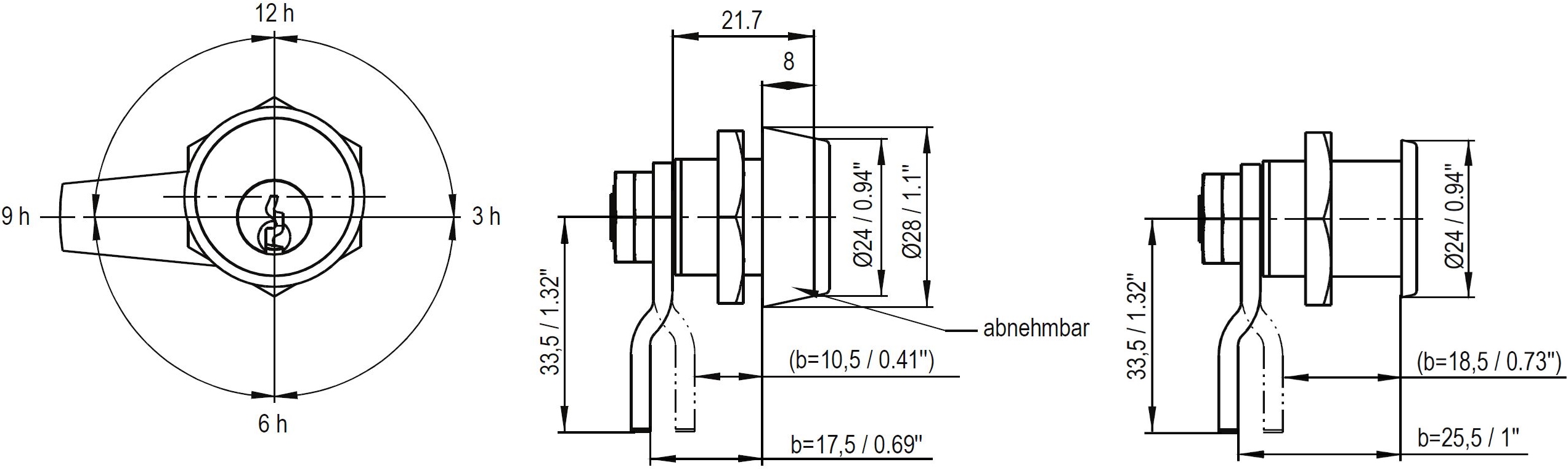

Dimension B: 10,5 / 17,5 / 18,5 / 25,5 mm
Notice
- The key necessary for the installation has to be requested at VW-AG.
- Closes from 6 to 9 o'clock. After turning the locking tongue: from 12 to 3 o'clock.
- Different closing heights (dimension b) can be achieved by combining the options with/without tapered ring and the installation type of the depressed center latch (see downloads)

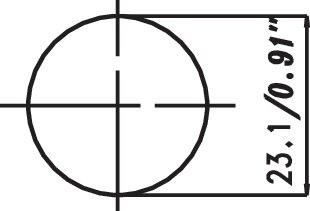

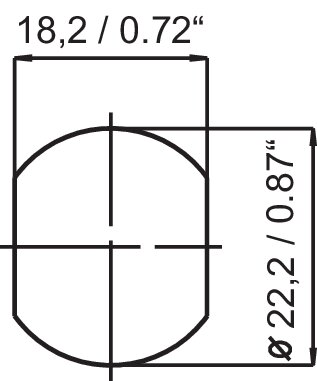

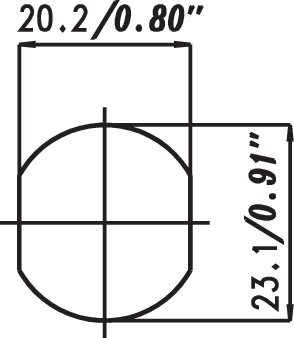

- Use the toothed lock washer type 3055-6797-22-00 as anti-rotation disk for the "alternative installation openings" specified in the download.Other versions are available upon request (different VW locks and different “dimension b”)
- 1 cylinder lock with fixing nut and latch, but without key
