2367-3616-09-00

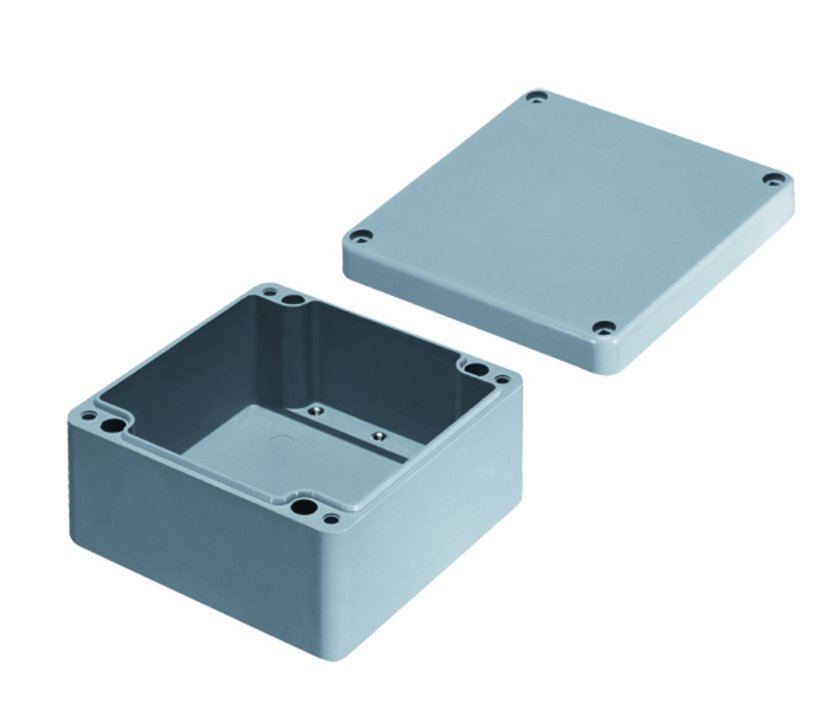

Polyester housings 2367
- Protection class: IP66
- Ideal for extreme environmental stress
- Captive lid screws
Product description
Enclosure made of high quality polyester with glass fiber, reinforcement for durable protection against aggressive factors, extreme environmental stress, rough operation, low temperatures and moisture operation.
Seal: incorporated in the lid EPDM seal.
Closure: stainless steel lid screws corrosion-resistant and captive by rotating rib, cross-slot headed scres.
Bar at the lower narrow side; for height = 75 mm 2 pieces, and from height = 120 mm, press-fitted threaded bushes M4 or M6 for fastening a mounting plate or mounting rail.
Technical Data
-
Order No.: 2367-3616-09-00
-
Material: polyester
-
Width: 360 mm
-
Height: 160 mm
-
Depth: 90 mm
-
Surface: similar to RAL 7001
-
Temperature range: the seal: -40 °C up to +100 °C/-104 °F up to +212 °F
-
Protection type: IP66
-
Bar on the narrow side for fastening a mounting plate or mounting rail.: 0
- Enclosures complete
2360-3616-00-62
Mounting plate for Polyester housings
Suitable for width
360 mm
Suitable for height
160 mm
Assembly instructions:
CAD data and other file formats:
