3353-4060-01-00

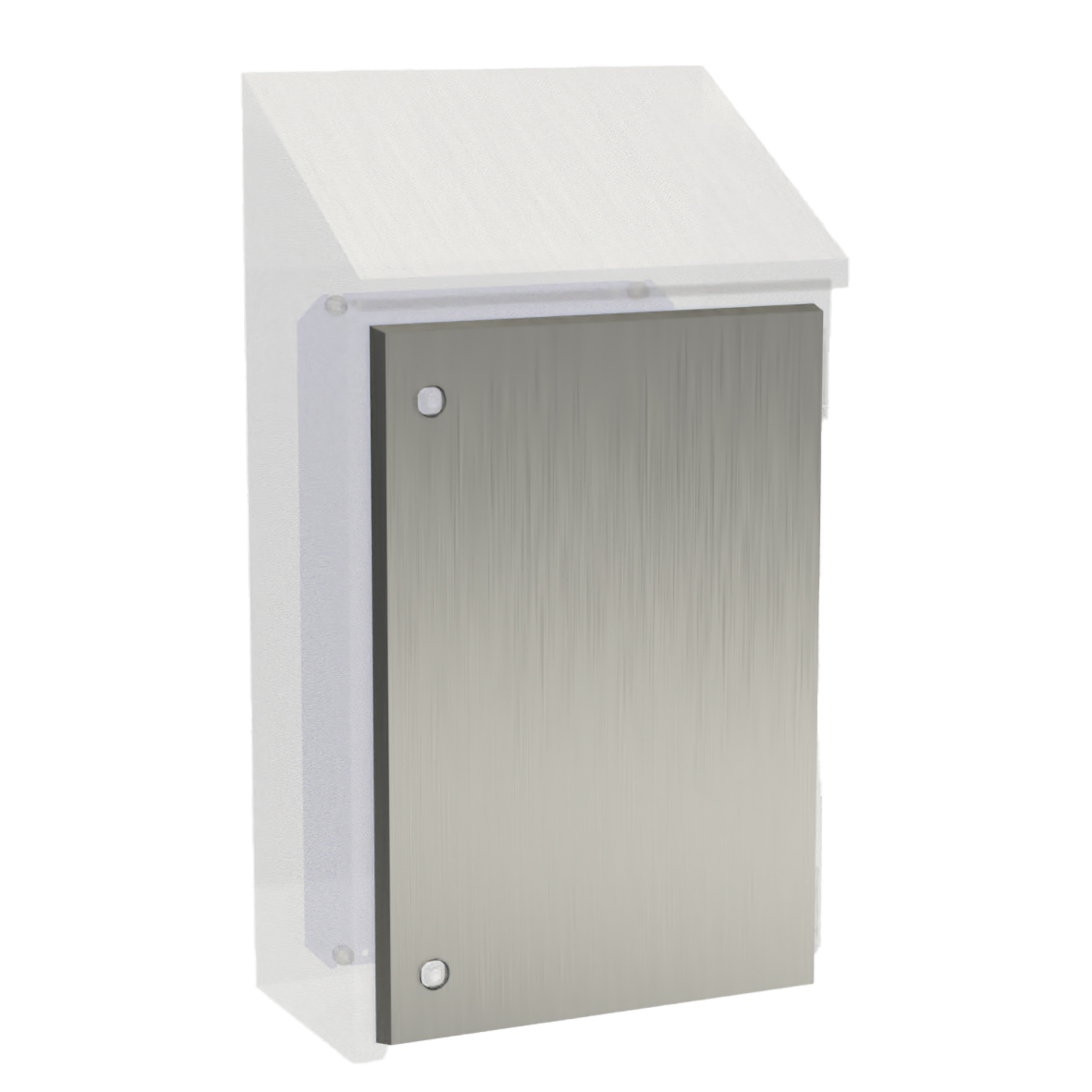

Door for enclosures type HE3353
Product description
Replacement door for Hygienic Equipment enclosures type HE3353.
protective ground connection according to DIN EN 61439-1.
with reinforcement brackets.
Technical Data
-
Order No.: 3353-4060-01-00
-
Material: Stainless steel no. 1.4301
-
Sheet thickness: 1,5 mm
-
Protective ground connection: according to DIN EN 61439-1
-
Surface: externally brushed, surface roughness < 0.8 µm
Notice
- Please order the hygiene sealing, 2 hygiene locks and 2 hinges separately – see accessories.
- 1 door without lock and hinges, without hygiene sealing
3353-4060-00-88
Hygiene sealing for enclosures type HE3353
Material
Silicone FDA 177.2600 conform
Surface
similar to RAL 5017
3353-4060-25-10
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 420/420 mm
Height: (nominal dimensions/external dimensions): 620/764 mm
Depth: (nominal dimensions/external dimensions): 250/254 mm
Height: (nominal dimensions/external dimensions): 620/764 mm
Depth: (nominal dimensions/external dimensions): 250/254 mm
R:20221_17349
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 420/420 mm
Height: (nominal dimensions/external dimensions): 620/764 mm
Depth: (nominal dimensions/external dimensions): 250/254 mm
Height: (nominal dimensions/external dimensions): 620/764 mm
Depth: (nominal dimensions/external dimensions): 250/254 mm
