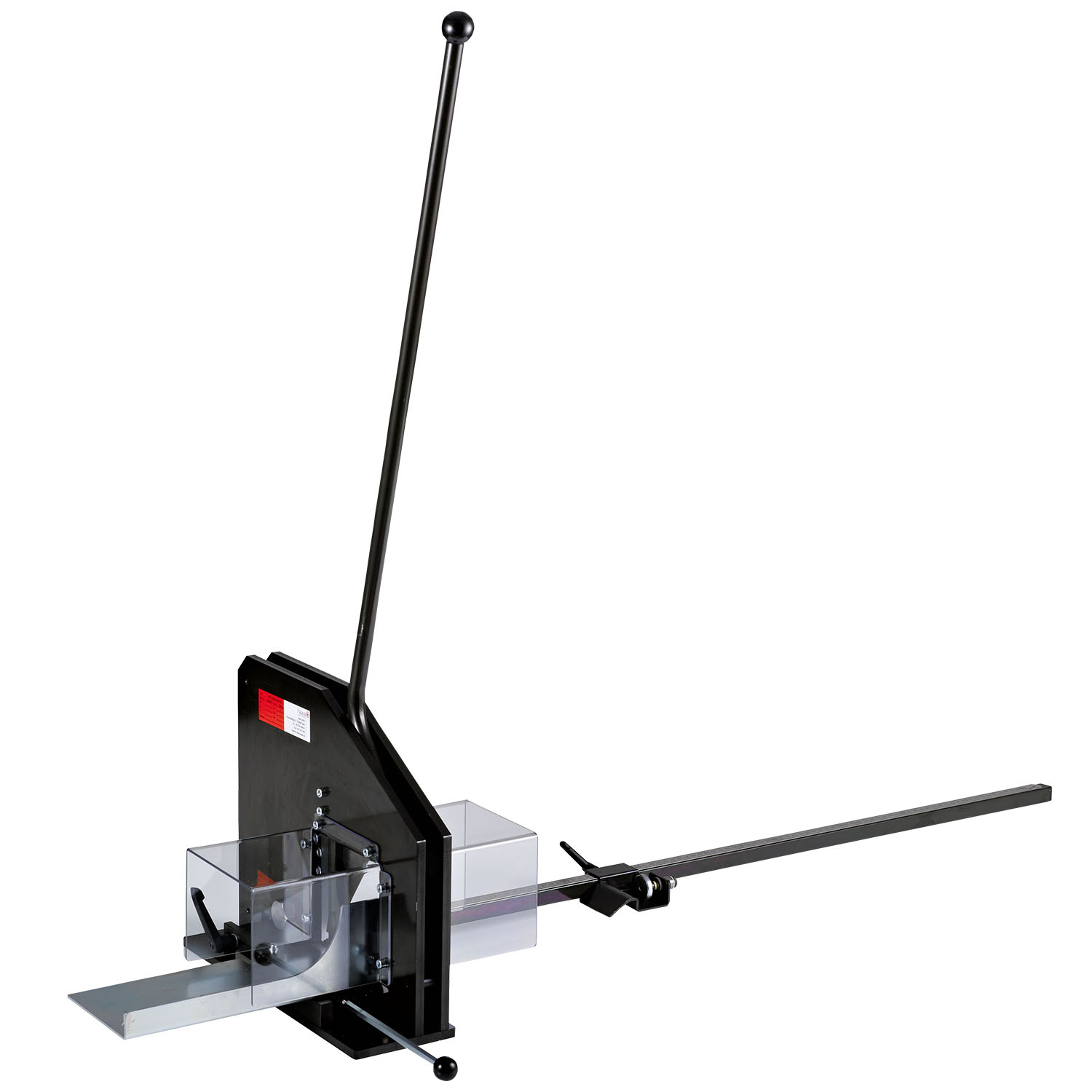

Wiring Duct Cutter Type 2677

2677-0100-01-00

Wiring Duct Cutter Type 2677

  • Burr-free cutting to length
  • Max. cable duct width 125x130 mm; 4.92"x5.12"
  • Contact guard

Product description

Long operating lever at the shear blades for waste-free cutting of wiring ducts and covers, minimum effort required to operate machine.

The shear blades ensure a noiseless, emission-free cutting without scraps.

Transparent finger guards on both sides provide a safe contact guard also during cutting process.

Cutter with spring length stop for a long-lasting lifetime of the shear blades.

Technical data

  • Article number: 2677-0100-01-00
  • EINSATZBEREICH: For cutting wiring ducts to length
  • Material: Plastic
  • MATERIALSTAERKE_DICT: Cable duct dimensions: up to 125x130x2 mm / 4.92x5.11x0.7”
  • Length stop: Continuously adjustable up to 1000 mm / 39.37”
  • Weight: 20 kg

Notice

  • Fur cutting cable ducts and covers up to a material thickness of 2 mm and a web height of 12 mm.
  • Wiring duct cutter with shear blades, hand lever and length stop 1 m/39.37”.
Length Stop for Cutting for Cable Duct Cutter
2677-0700-01-00
Length Stop for Cutting for Cable Duct Cutter
Product range
For workshop equipment
Setting range to
1000 mm
Length stop for cutting for cable duct cutter with additional height, adjustable floor support
2677-0700-02-00
Length stop for cutting for cable duct cutter with additional height, adjustable floor support
Product range
For workshop equipment
Type
with additional height adjustable floor support
Setting range to
2000 mm
Shear Blades for Cable Duct Cutter 2677
2677-0300-05-00
Shear Blades for Cable Duct Cutter 2677
Product range
For workshop equipment
Shear Blades for Cable Duct Cutter 2677
2677-0300-05-00
Shear Blades for Cable Duct Cutter 2677
Product range
For workshop equipment
Length Stop for Cutting for Cable Duct Cutter
2677-0700-01-00
Length Stop for Cutting for Cable Duct Cutter
Product range
For workshop equipment
Setting range to
1000 mm

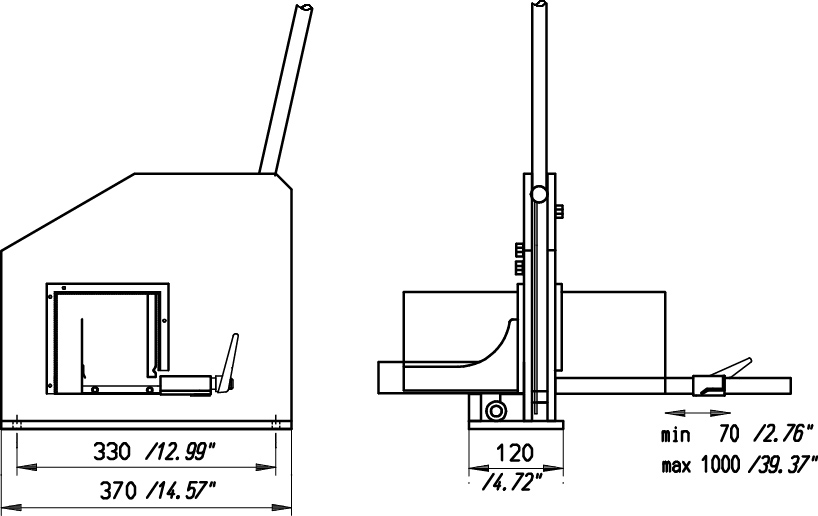

CAD data and other illustrations:
Wiring Duct Cutter Type 2677
Wiring Duct Cutter Type 2677
Long operating lever at the shear blades for waste-free cutting of wiring ducts and covers, minimum effort required to operate machine.
The shear blades ensure a noiseless, emission-free cutting without scraps.
Transparent finger guards on both sides provide a safe contact guard also during cutting process.
Cutter with spring length stop for a long-lasting lifetime of the shear blades.

Art No.
Material
Material thickness
Processing
Remember
Plastic
Cable duct dimensions: up to 125x130x2 mm / 4.92x5.11x0.7”
