2671-0100-01-00

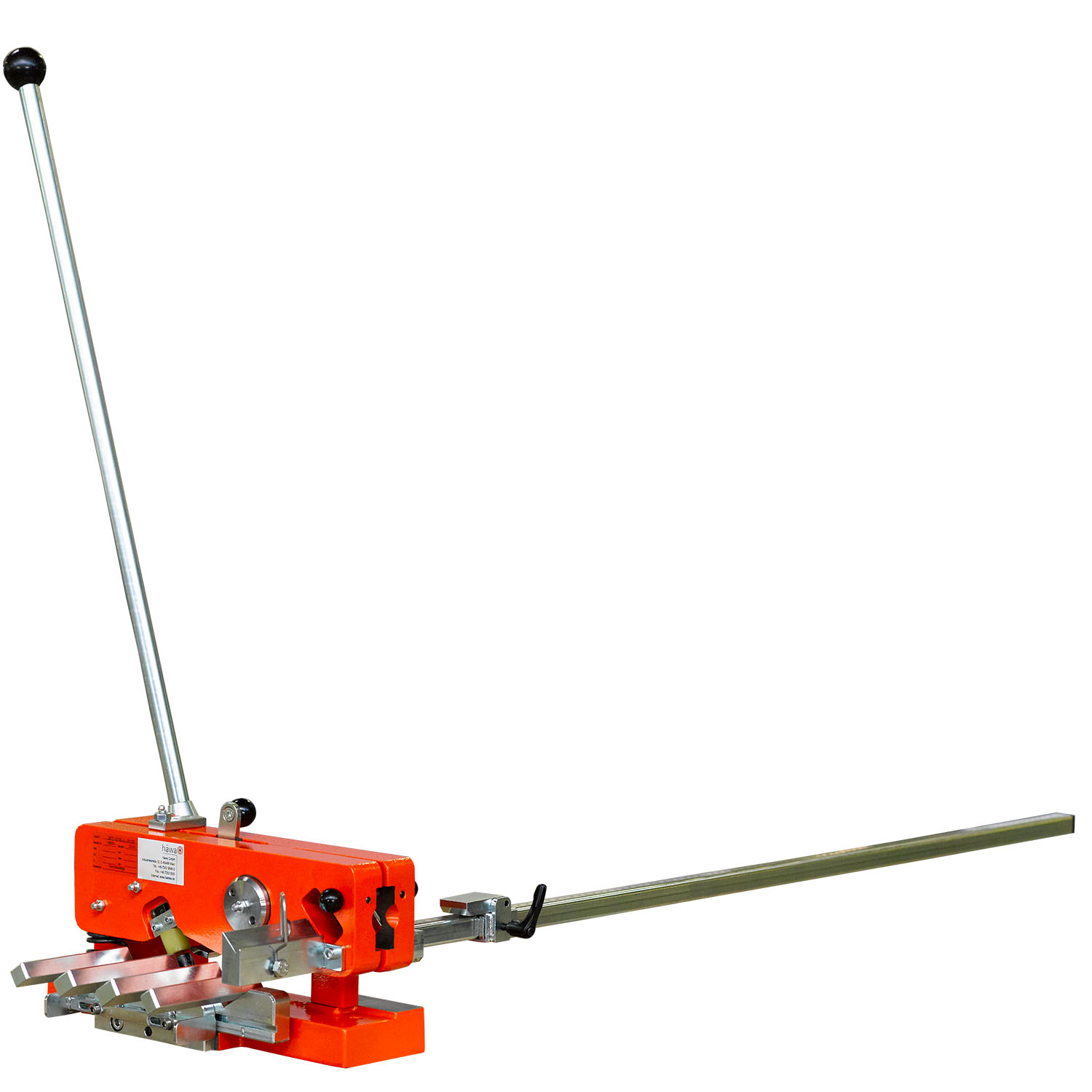

Manually Operated Profile Shears/DIN Rail Cutter 2671
- Low-noise and burr-free cutting to length
- Max. rail dimensions 35x18x2 mm /1.38x0.71x0.08”
- With punch function
Product description
Long operating lever for waste-free cutting of sheet steel and aluminum profile rails, minimum effort required to operate machine
Easy shear blade exchange
Precise feeding of profile rails for cutting to length and punching
Punching with integrated fixed stop (9 mm / 0.34“ distance)
See accessories for adjustable stops
Technical data
-
Article number: 2671-0100-01-00
-
EINSATZBEREICH: Cutting to length + punching of DIN rails
-
holes: Up to ø 7 mm / 0.28“ or oblong hole 6.3x9 mm / 0.25x0.35“
-
Material: Sheet steel, aluminum
-
MATERIALSTAERKE_DICT: DIN rail dimensions: Sheet steel up to 35x18x2 mm / 1.38x0.71x0.08”; aluminum up to 35x18x2 mm / 1.38x0.71x0.08”
-
Length stop: For cutting to length: Continuously adjustable up to 1000 mm / 39.37”
-
Weight: 28.5 kg
- Profile shears/ DIN rail cutter with hand lever and 1 m /39.37“ length stop for cutting to length
- Feeder for cutting and punching
- Fixed stop for punching
2671-0000-10-00
Length Stop for Cutting for Profile Shears/DIN Rail Cutter
Product range
For workshop equipment
Version
For Profile Shears/DIN Rail Cutter 2671
Setting range from
55 mm
Setting range to
1000 mm
2671-0700-02-00
Length Stop for Cutting for Profile Shears/DIN Rail Cutter
Product range
For workshop equipment
Version
For Profile Shears/DIN Rail Cutter 2671
Type
with additional height adjustable floor support
Setting range from
55 mm
Setting range to
2000 mm
2671-0700-01-00
Length Stop for Punching for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
Setting range from
25 mm
Setting range to
500 mm
2671-0700-03-00
Length Stop for Punching for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
Setting range from
25 mm
Setting range to
1000 mm
2671-7400-01-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail G32 32 x 15 x 1.5
2671-7400-02-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail 35 x 15 x 1.5
2671-7400-03-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail 35 x 7.5 x 1
2671-7400-04-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail 35 x 15 x 2,3
2671-7400-05-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail 15 x 5 x 1
2671-7400-06-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail 35 x 10 x 1,5
2671-7400-07-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail C30 30 x 15 x 1,5
2671-7400-08-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail C35 35/16/18 - 1,5
2671-7400-09-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
2671-7400-09-01
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
2671-7700-03-42
Punching Tools for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
Size ø
4.2 mm
Max. sheet metal thickness
2 mm/0,08"
2671-7700-04-53
Punching Tools for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
Size ø
5.3 mm
Max. sheet metal thickness
2 mm/0,08"
2671-7700-02-65
Punching Tools for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
Long hole
6,3x8 mm/0,25x0,31"
Max. sheet metal thickness
2 mm/0,08"
2671-0900-21-20
Rubber Wiper for Section Shears 2671
Product range
For workshop equipment
Version
Suitable for all punching tools of section shears 2671
2671-0000-10-00
Length Stop for Cutting for Profile Shears/DIN Rail Cutter
Product range
For workshop equipment
Version
For Profile Shears/DIN Rail Cutter 2671
Setting range from
55 mm
Setting range to
1000 mm
Mounting instructions:
CAD data and other illustrations:
