Round punch kits

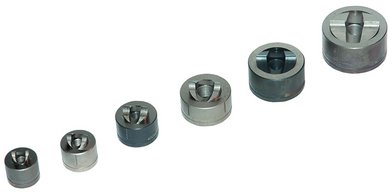

Round Punch Plus Kit, Metric from M16 to M50

For punching with "mobile devices".
It is possible to punch stainless steel and sheet steel
Low tool wear through optimum cutting geometry.
Owing to the design of the punch cutting edges, the power required for punching is reduced by up to 40 %.
Easy removal of the partly split waste piece.
Quick, precise and burr-free punching.
For operating the punch, you require 9.5 mm (3/8”) / 11.1 mm and 19 mm (3/4”) draw studs.

Order No.	Product range	Size	Max. sheet metal thickness	Draw stud	notice
2682-7816-50-26	for mobile devices	metric round punch in mm: ø 16.2; ø 20.2; ø 25.2; ø 32.2; ø 40.2; ø 50.2	Stainless steel 2,5 mm; 13 ga	ø 9,5 mm; 3/8" / ø 11,1 mm; 7/16" / ø 19 mm; 3/4"

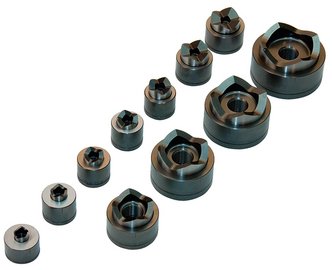

Round Punch Kit, Metric from M12 to M50

For punching with pumps or with draw studs for manual operation.
Low tool wear through optimum cutting geometry.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
For operating the punch, you require 9.5 mm (3/8”) and 19 mm (3/4”) draw studs.

						notice
2623-7812-50-00	for mobile devices	metric: metric round punches in mm: ø 12,2/0,48"; 16,2/0,64"; 20,2/0,8"; 25,2/0,99"; 32,2/1,27"; 40,2/1,58"; 50,2/1,97"	Steel 3 mm; 11 ga	ø 9,5 mm; 3/8" / ø 19 mm; 3/4"	without draw studs
2683-7812-50-20	for mobile devices	metric: metric round punches in mm: ø 12,2/0,48"; 16,2/0,64"; 20,2/0,8"; 25,2/0,99"; 32,2/1,27"; 40,2/1,58"; 50,2/1,97"	Steel 3 mm; 11 ga	ø 9,5 mm; 3/8" / ø 19 mm; 3/4"	with draw studs

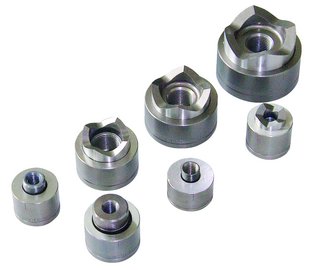

Round Punch Kit, from PG7 to PG21 + ø 30.5 mm

For punching with pumps or with draw studs for manual operation.
Low tool wear through optimum cutting geometry.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
For operating the punch, you require a 9.5 mm (3/8”) draw stud.

						notice
2623-7812-30-00	for mobile devices	PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm	Steel 3 mm; 11 ga	ø 9,5 mm / 3/8"	without draw studs
2683-7812-30-20	for mobile devices	PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm	Steel 3 mm; 11 ga	ø 9,5 mm / 3/8"	with draw studs

Round Punch Kit from PG7 to PG48 + ø 30.5 mm

For punching with pumps or with draw studs for manual operation.
Low tool wear through optimum cutting geometry.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
For operating the punch, you require 9.5 mm (3/8”) and ø 19 mm (3/4”) draw studs.

						notice
2623-7812-60-00	for mobile devices	PG round punches in PG: 7;9;11;13;16;21;29;36;42;48 and ø 30.5 mm	Steel 3 mm; 11 ga	ø 9,5 mm; 3/8" / ø 19 mm; 3/4"	without draw studs
2683-7812-60-30	for mobile devices	PG round punches in PG: 7;9;11;13;16;21;29;36;42;48 and ø 30.5 mm	Steel 3 mm; 11 ga	ø 9,5 mm; 3/8" / ø 19 mm; 3/4"	with draw studs
