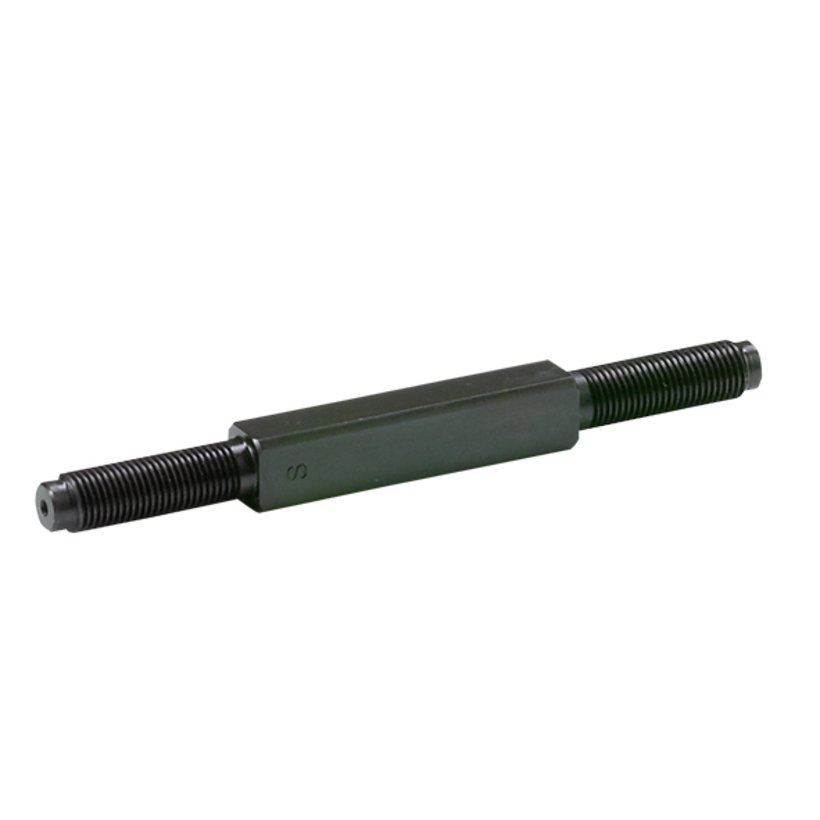

Draw Studs for Shaped Punches
Product description
For punching sheet metals with pumps.
The shaped part of the bolt prevents the punch from rotating to the die.
Technical data
-
Article number: 2623-0712-11-00
-
Product family: for mobile devices
-
PRODUKTGRUPPENNAMEEBENE6: Draw studs and nuts for shaped punches
-
Actuating thread: Ø 9,5/9,5 mm/3/8"/3/8"
-
Screw length: 120 mm
-
Molded part: Vierkant 11x12 mm/0.43x0.47"
-
Pre-drilling ø: 16 mm
Notice
- You need a punching pump with screw thread 9,5; 3/8".
- 1 Draw Studs
2683-0710-10-02
Nuts for Shaped Punches
Product range
for mobile devices
Thread
9,5 mm/0,37"
Wrench size nut
24 mm
2623-0922-20-00
Square Punch 22.2 mm / 0.87”
Product range
for mobile devices
Size
22,2 x 22,2 mm; 0,87 x 0,87"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
2623-0925-40-00
Square punch 25.4
Product range
for mobile devices
Size
25,4 x 25,4 mm; 1 x 1"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
2623-0922-30-00
Rectangular Punch 22x30
Product range
for mobile devices
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Stainless steel 1 mm; 20 ga
Stainless steel 1 mm; 20 ga
Draw stud
ø 9,5 mm / 3/8"
2623-0922-20-00
Square Punch 22.2 mm / 0.87”
Product range
for mobile devices
Size
22,2 x 22,2 mm; 0,87 x 0,87"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
2623-0925-40-00
Square punch 25.4
Product range
for mobile devices
Size
25,4 x 25,4 mm; 1 x 1"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
