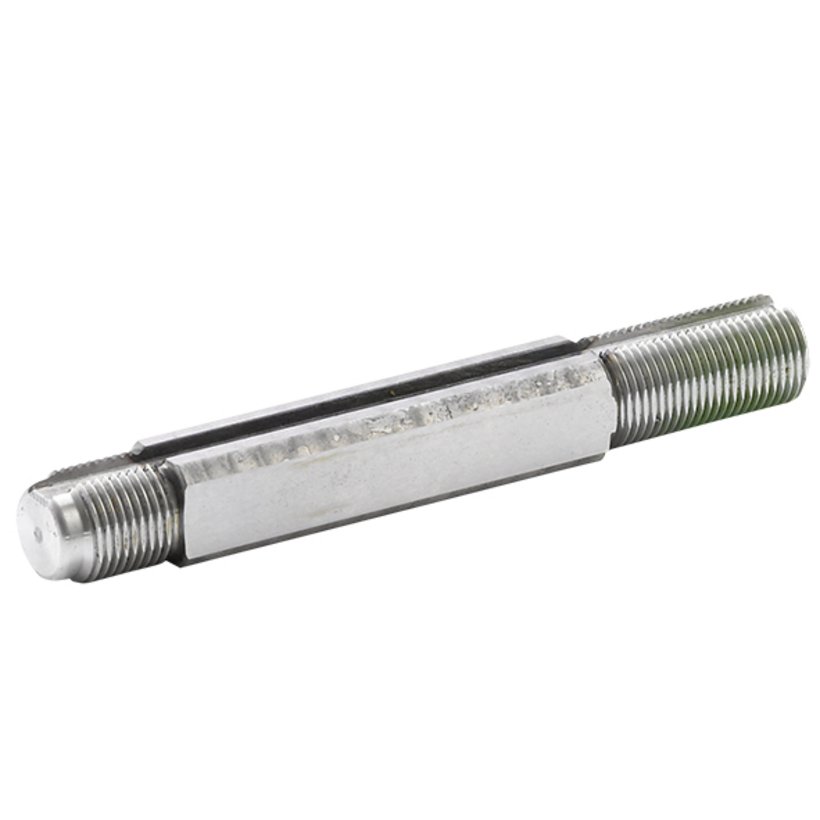

Draw Studs for Shaped Punches
Product description
For punching sheet metals with pumps.
The shaped part of the bolt prevents the punch from rotating to the die.
Technical Data
-
Order No.: 2623-0118-00-00
-
PRODUKTFAMILIE: for mobile devices
-
Draw stud: 19/19 mm
-
Screw length: 143 mm
-
Shaped punches: VK 18x18 mm with slot
-
Pilot hole Ø: 25 mm
Notice
- You need a punching pump with screw thread 19; 3/4 ".
- 1 Draw Studs
2683-0719-19-01
Nuts for Shaped Punches
Product range
for mobile devices
Thread
19 mm
Wrench size nut
34 mm
2683-0925-50-00
Rectangular Punch 25 x 50 mm
Product range
for mobile devices
Size
25 x 50 mm
Max. sheet metal thickness
Steel 2 mm + Stainless steel 1,5 mm
Draw stud
Ø 19 mm
