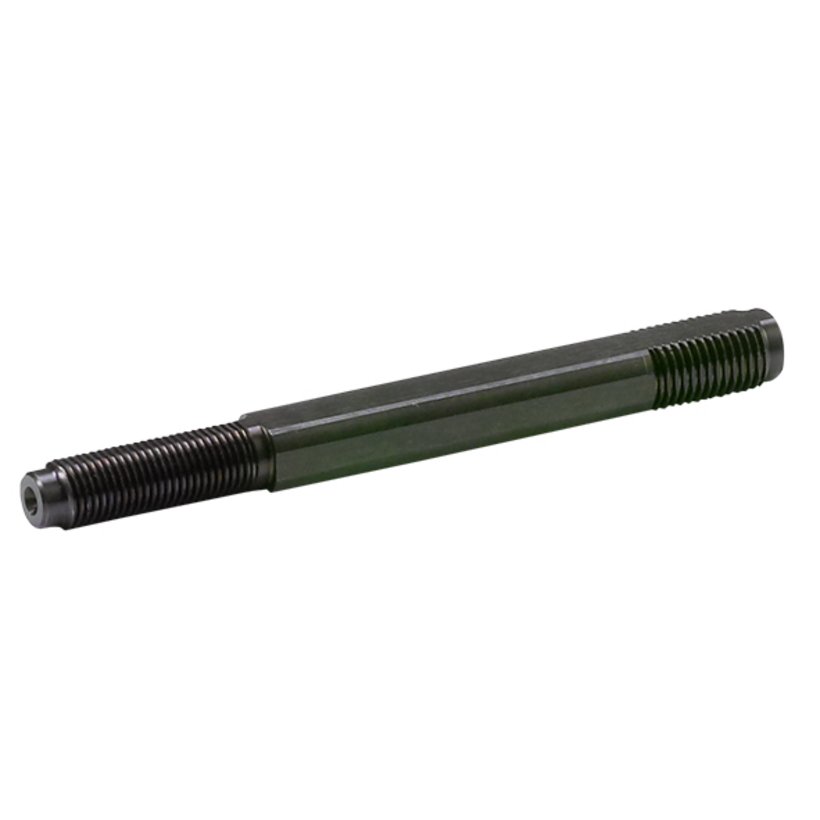

Draw Studs for Shaped Punches
Product description
For punching sheet metals with pumps.
The shaped part of the bolt prevents the punch from rotating to the die.
Technical Data
-
Order No.: 2683-0000-38-12
-
PRODUKTFAMILIE: for mobile devices
-
Draw stud: 9,5/9,5 mm
-
Screw length: 110 mm
-
Shaped punches: SW 12; WAF 0.47" + 3te Fläche
-
Pilot hole Ø: 12.5 mm
Notice
- You need a punching pump with screw thread 9,5; 3/8".
- 1 Draw Studs
2683-0000-00-12
Nuts for Shaped Punches
Product range
for mobile devices
Thread
9,5 mm
Wrench size nut
19 mm
2683-0000-00-50
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
50
Size
11,3 x 58,4 mm
Max. sheet metal thickness
Steel 1,75 mm / Stainless steel 1 mm / Aluminum 2 mm
Draw stud
ø 9,5 mm
