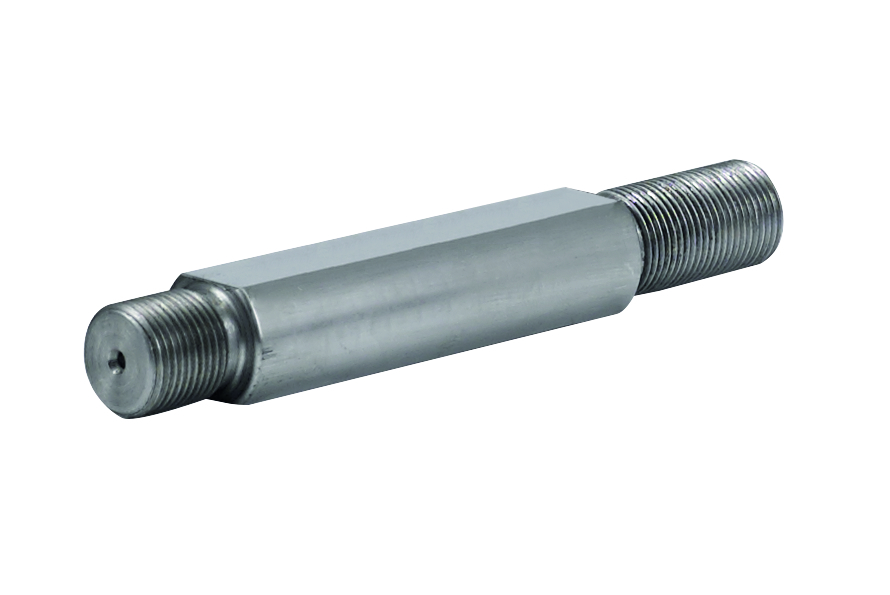

Draw Studs for Shaped Punches
Product description
For punching sheet metals with pumps.
The shaped part of the bolt prevents the punch from rotating to the die.
Technical Data
-
Order No.: 2683-0719-24-16
-
PRODUKTFAMILIE: for mobile devices
-
Draw stud: 19/19 mm
-
Screw length: 153 mm
-
Shaped punches: Ø 25 mm with 2 guide surfaces
-
Pilot hole Ø: 27 mm
Notice
- You need a punching pump with screw thread 19; 3/4 ".
- 1 Draw Studs
2683-0719-19-01
Nuts for Shaped Punches
Product range
for mobile devices
Thread
19 mm
Wrench size nut
34 mm
2683-0125-00-02
Square Punch 125 mm / 4.92“ (ST+VA)
Product range
for mobile devices
Size
125 x 125 mm
Max. sheet metal thickness
Steel 2,5 mm + Stainless steel 2,0 mm
Draw stud
Ø 19 mm
