Reduction Sleeve 19-9.5 (3/4”- 3/8”)
Reduction Sleeve 19-9.5 (3/4”- 3/8”)
Reduces the 19 mm (3/4”) internal thread of the pump by screwing on a 9.5 mm (3/8“) internal thread.

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
for mobile devices
19/9,5 mm/3/4"/3/8"
40 mm

Reduction Sleeve 25-9.5 (3/8”)
Reduction Sleeve 25-9.5 (3/8”)
Reduces a 25x1.5 internal thread by screwing on a 9.5 mm (3/8“) internal thread.

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
for mobile devices
M25x1,5

Spacer Sleeve
Spacer Sleeve
For compensating length differences of punching tools.

Remember
for mobile devices
35 mm
10 mm
8 mm
for mobile devices
35 mm
19.5 mm
10 mm
for mobile devices
36 mm
19.5 mm
18 mm

Spacer Sleeve Set
Spacer Sleeve Set
For compensating length differences when working with round punches with 19 mm (3/4”) thread
3 spacer sleeves with 19.5 mm (3/8“) internal thread
Space sleeve dimensions (external diameter x length): ø32x38 mm / ø36x30 mm / ø42x23 mm

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
for mobile devices

Washer
Washer
The washer increases the die support surface when working with small punches and prevents the pump cylinder from damages. It is required for hydraulic cylinders threaded for 19 mm (3/4”) draw studs and punches up to 20.4 mm punch diameter.

Art No.
Product range
Inner diameter
Outer diameter
Thickness
Remember
for mobile devices
10 mm
40 mm

Support Washer
Support Washer
The washer increases the die support surface when working with small punches and prevents the pump cylinder from damages.

Remember
for mobile devices
63 mm
10 mm
for mobile devices
65 mm
20 mm

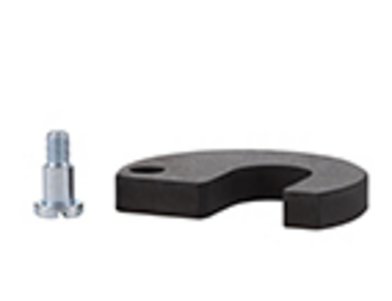

Captive C-Washer with Screw
Captive C-Washer with Screw
Is required for 125 mm (4.92“) square punches used with a pump with less than 22 mm (0.87“) piston stroke. The captive C-washer is used as spacer and compensates the short piston stroke.

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
for mobile devices

Cordless Powerlec Vario
Cordless Powerlec Vario
Replacement battery Li-Ion for Powerlec Vario and cordless Flexipower.

Art No.
Product range
Diameter dimensions
Max. sheet metal thickness
Draw stud
Remember
for mobile devices

Charger Powerlec Vario
Charger Powerlec Vario
Quick charger for 18 V Li-Ion Powerlec Vario and Flexipower batteries.
Charge time of RAL2 battery 18V-3.0Ah: approx. 22 min
Charge time of RAL1 battery 18V-1.5Ah: approx. 15 min

Art No.
Product range
Power supply
Dimension
Weight
Remember
for mobile devices
(LxWxH): 190x156x84 mm
0.85 kg
