2684-0000-20-00

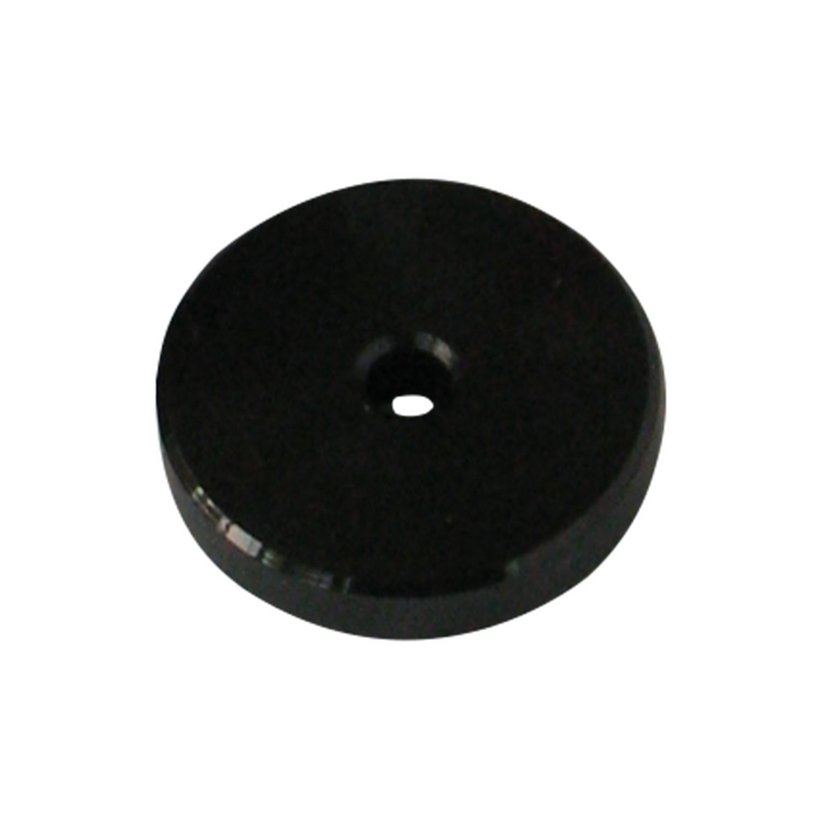

Support Washer
Product description
The washer increases the die support surface when working with small punches and prevents the pump cylinder from damages.
Technical Data
-
Order No.: 2684-0000-20-00
-
PRODUKTFAMILIE: for mobile devices
-
Outer diameter: 63 mm
-
Inner diameter: 10 mm
- 1 support washer
2611-7600-01-00
Hydraulic Cylinder Power 19
Suitable for
Round punches up to ø 135 mm / square punches 103 mm / rectangular punches up to a diagonal size of 145 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Screw receptacle
19 mm draw studs
Cylinder stroke
40 mm
2611-7600-01-00
Hydraulic Cylinder Power 19
Suitable for
Round punches up to ø 135 mm / square punches 103 mm / rectangular punches up to a diagonal size of 145 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm
Screw receptacle
19 mm draw studs
Cylinder stroke
40 mm
