2683-0900-80-01

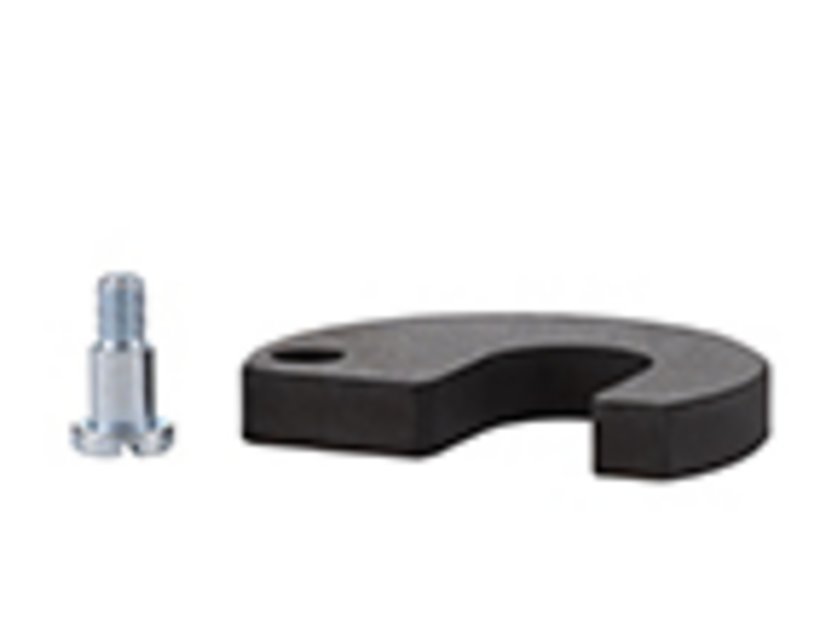

Captive C-Washer with Screw
Product description
Is required for 125 mm (4.92“) square punches used with a pump with less than 22 mm (0.87“) piston stroke. The captive C-washer is used as spacer and compensates the short piston stroke.
Technical data
-
Article number: 2683-0900-80-01
-
Product family: for mobile devices
-
PRODUKTGRUPPENNAMEEBENE6: General accessories
- 1 captive C-washer with screw
2683-0125-00-02
Square Punch 125 mm / 4.92“ (ST+VA)
Product range
for mobile devices
Size
125 x 125 mm; 4.92 x 4.92"
Max. sheet metal thickness
Steel 2,5 mm; 12 ga + Stainless steel 2,0 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
