2626-7200-20-00

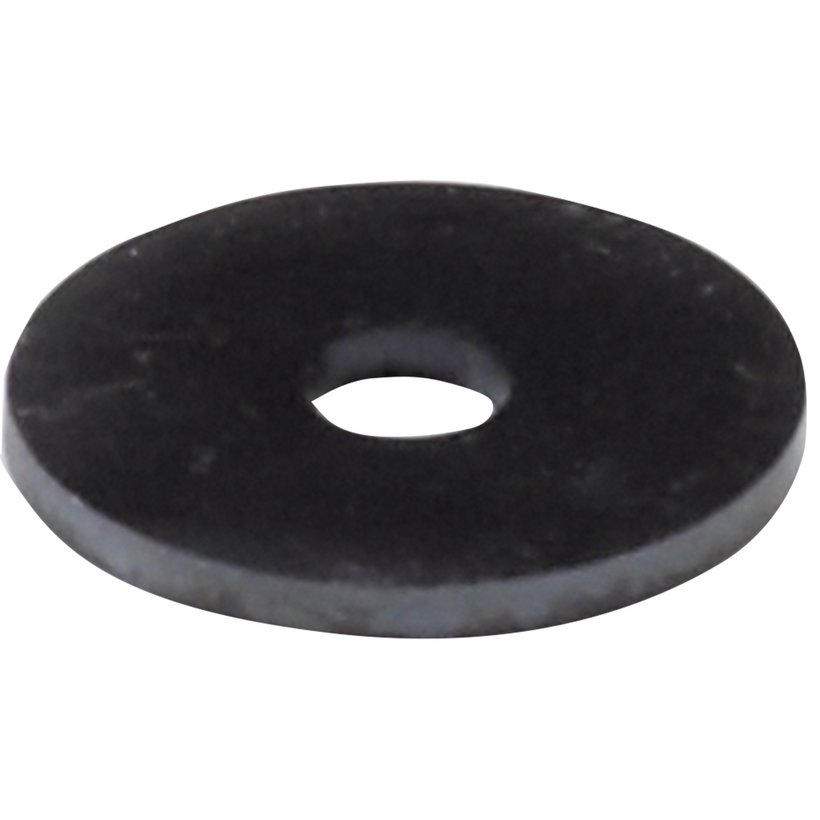

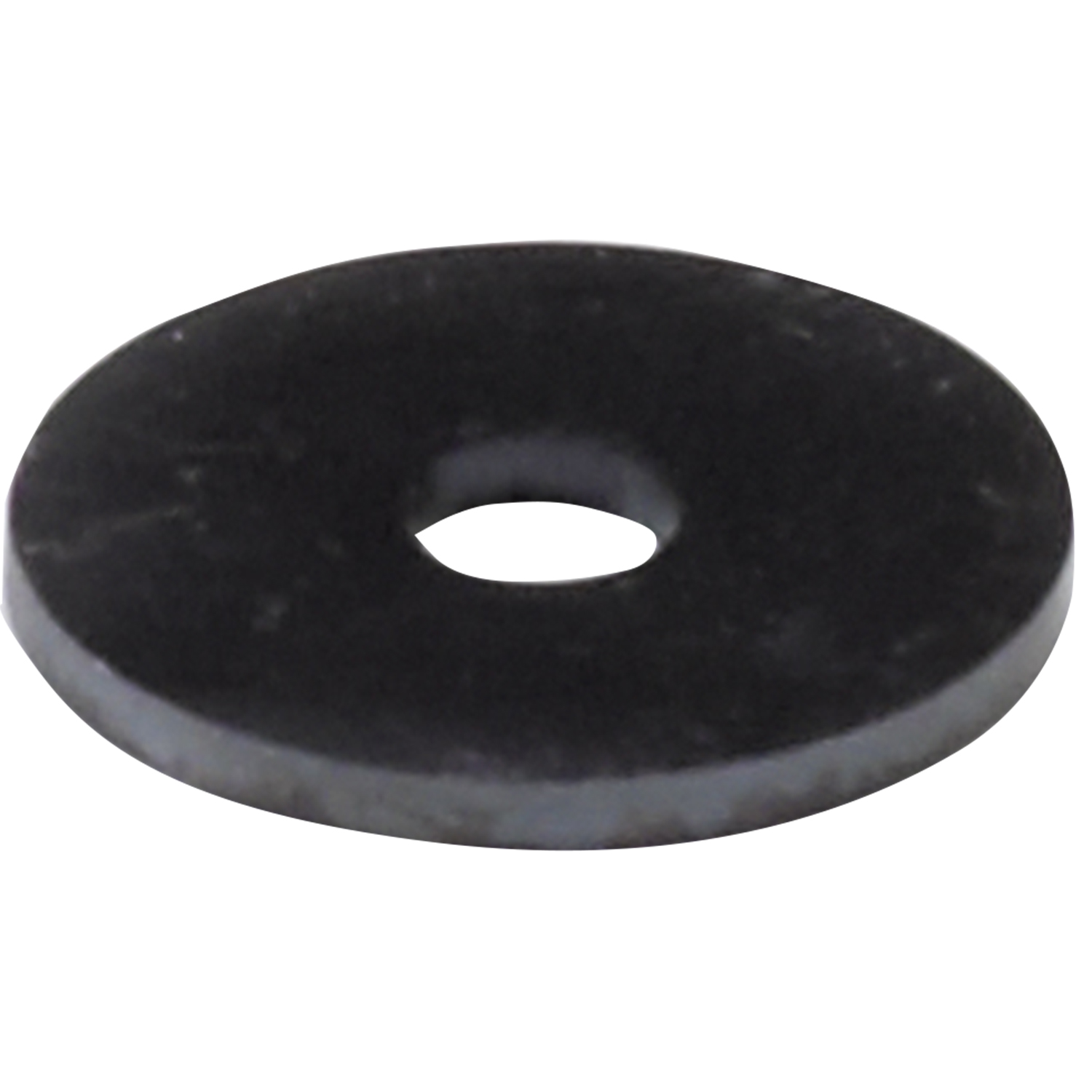

Washer
Product description
The washer increases the die support surface when working with small punches and prevents the pump cylinder from damages. It is required for hydraulic cylinders threaded for 19 mm (3/4”) draw studs and punches up to 20.4 mm punch diameter.
Technical Data
-
Order No.: 2626-7200-20-00
-
PRODUKTFAMILIE: for mobile devices
-
Outer diameter: 40 mm
-
Thickness: 3 mm
-
Inner diameter: 10 mm
- 1 washer
