Product description

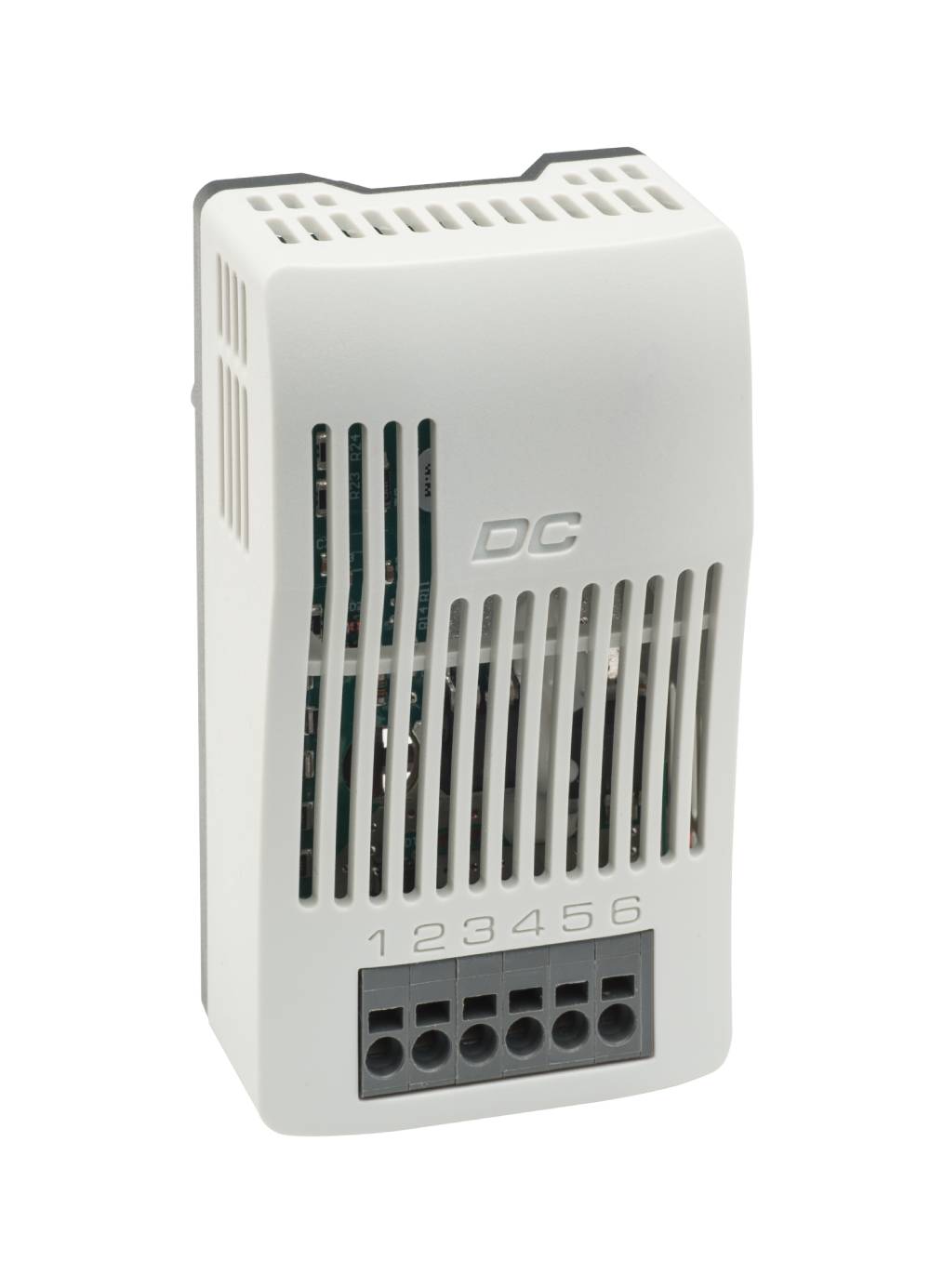

Switching module for controlling DC devices, such as häwa high-performance heaters Type 3186, used together with the electronic hygrotherm Type ETF012 (see “Suitable for”) in low-voltage switchgear assemblies. Can be used as a thermostat or hygrostat. Controlled via potential-free, external contact.
Technical Data
-
Order No.: 3150-1010-00-24
-
Type: Clip fixing
-
Dimension: Width : 53 mm Height : 93 mm Depth : 44 mm
-
Control system: Normally open contact (NO)
-
Nominal voltage: 20 V - 56 V DC
-
Switching current: 15 A (DC)
-
Contact type: MOSFET
-
Electrical connection: 6-pole clamp, stranded wire 1.5 mm² (AWG 16); max. 2.5 mm²
-
Mounting: Clip for 35 mm DIN rail EN 60715
Notice
- You will find a detailed technical data sheet and the operating and mounting instructions under “Downloads.”
- Use wire end ferrules when connecting with stranded wires.
- 1 switching module
3150-0060-02-23-01
Electronic Hygrotherm ETF012
Contact type
Change-over
Setting range
50 to 90% rF, +0 °C to +60 °C
