6319-3010-00-02

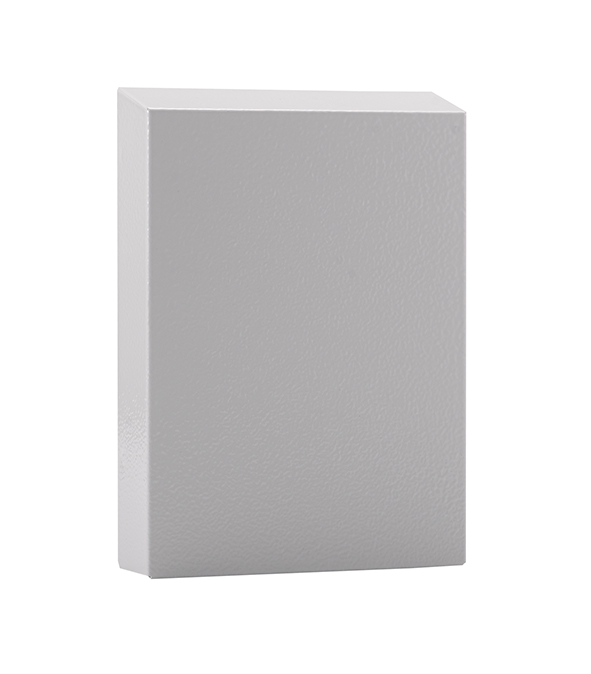

Hose-Proof Hood AC KIT
- Mounting on vertical and flat surfaces
- For UL Type 1, 12, 3R, 4 Enclosures
- For indoor and outdoor use
Product description
The hose-proof hood is used to cover vents in doors and panels for protection against dust and water.
Combined with exhaust filters or filter fans of the FixCool series, the hose-proof hood protects enclosures against environmental pollution as defined by UL Type Rating, Type 3R, 4 and additionally by Type 1 and 12. Furthermore, it provides protection against dust and water according to IP56.
Can be used for all häwa housings.
The hoods can be installed one below the other or side by side on doors, side or rear panels.
With loss protection against unintentional loosening.
Technical Data
-
PRODUCT NUMBER: 6319-3010-00-02
-
Protection type: IP56
-
Type Rating: 1, 12, 3R, 4
-
Type: AC10
-
Material: Sheet steel, PC/ABS
-
Approval: cULus ENCL. ACC.
-
Weight: 1.04 kg
-
Dimension: Width : 148 mm Height : 218 mm Depth : 32 mm
-
Type: FixCool Filter Fans AC10
-
Surface: Polyester powder RAL 7035, texture finish
Notice
- The type rating and IP protection class are only achieved when the filter hood is used together with a suitable exhaust filter or filter fan.
- 1 exhaust filter
- 1 mounting frame with foamed gasket
- 1 filter hood
- Mounting hardware
