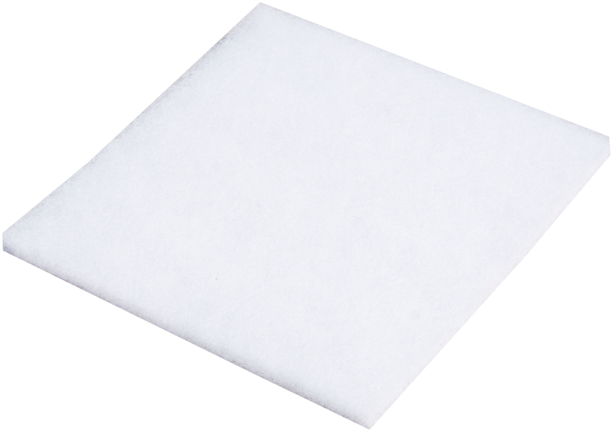

Replacement Filter Pads for filter fans 3156

3156-9003-10-00-00

Replacement Filter Pads for filter fans 3156

Product description

Our filter fans and exhaust filters use high quality filter pads.

The temperature resistant fibrous web pad with progressive fiber construction with improved filtering capacity has a relatively minor air resistance and filters reliably almost all kinds of dust particles.

Technical data

  • Article number: 3156-9003-10-00-00
  • PRODUKTGRUPPENNAMEEBENE4: Replacement Filter Pads
  • Filter class: G3
  • Dimensions: Width : 85 mm  Height : 76 mm
  • Variant: Filter fan FC10 / Exhaust filter AC10

Notice

  • The filter pad should be cleaned at regular intervals, depending on the surrounding environment. The pads can be cleaned by shaking, vacuuming or rinsing in lukewarm clean water. Cleaning the filter pads, assures a long service life.
  • 1 set = 10 pieces
Hose-Proof Hood AC KIT
6319-3010-00-02
Hose-Proof Hood AC KIT
Protection class
IP56
Type Rating
1, 12, 3R, 4
Type
AC10
Material
Sheet steel, PC/ABS
Type
FixCool Filter Fans AC10
Hose-Proof Hood AC KIT
6319-5010-00-02
Hose-Proof Hood AC KIT
Protection class
IP56
Type Rating
1, 12, 3R, 4, 4X
Type
AC10
Material
Stainless steel no. 1.4301, PC/ABS
Type
FixCool Filter Fans AC10
FixCool Filter Fans
3156-0092-00-00-00
FixCool Filter Fans
Protection class
IP54
Cut out dimension
92x92 mm/3,62x3,62"
Typ
AC10
FixCool Filter Fans
3156-0092-00-70-00
FixCool Filter Fans
Protection class
IP54
Cut out dimension
92x92 mm/3,62x3,62"
Typ
AC10
FixCool Filter Fan
3156-0092-11-00-00
FixCool Filter Fan
Nominal voltage
115 V AC
Protection class
IP54
Cut out dimension
92x92 mm/3,62x3,62"
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Typ
FC10
FixCool Filter Fan
3156-0092-11-70-00
FixCool Filter Fan
Nominal voltage
115 V AC
Protection class
IP54
Cut out dimension
92x92 mm/3,62x3,62"
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Typ
FC10
FixCool Filter Fan
3156-0092-23-00-00
FixCool Filter Fan
Nominal voltage
230 V AC
Protection class
IP54
Cut out dimension
92x92 mm/3,62x3,62"
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Typ
FC10
FixCool Filter Fan
3156-0092-23-70-00
FixCool Filter Fan
Nominal voltage
230 V AC
Protection class
IP54
Cut out dimension
92x92 mm/3,62x3,62"
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 35/35 m3/h
with exhaust filter at 50/60 Hz: 24/24 m3/h
Typ
FC10
FixCool Filter Fan
3156-0092-24-00-00
FixCool Filter Fan
Nominal voltage
24 V DC
Protection class
IP54
Cut out dimension
92x92 mm/3,62x3,62"
Unimpeded air flow
unimpeded air flow: 50 m3/h
with exhaust filter: 32 m3/h
Typ
FC10
FixCool Filter Fan
3156-0092-24-70-00
FixCool Filter Fan
Nominal voltage
24 V DC
Protection class
IP54
Cut out dimension
92x92 mm/3,62x3,62"
Unimpeded air flow
unimpeded air flow: 50 m3/h
with exhaust filter: 32 m3/h
Typ
FC10
Hose-Proof Hood FC KIT
6319-3110-10-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC10
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
Hose-Proof Hood FC KIT
6319-3110-20-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC10
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
Hose-Proof Hood FC KIT
6319-3110-30-02
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC10
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 50 m³/h
Type
FixCool Filter Fan FC10
Hose-Proof Hood FC KIT
6319-5110-10-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC10
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
Hose-Proof Hood FC KIT
6319-5110-20-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC10
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 35/35 m3/h
Type
FixCool Filter Fan FC10
Hose-Proof Hood FC KIT
6319-5110-30-02
Hose-Proof Hood FC KIT
Nominal voltage
24 V DC
Protection type
IP56
Type
FC10
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 50 m³/h
Type
FixCool Filter Fan FC10
Replacement Filter Pads for filter fans 3156
Replacement Filter Pads for filter fans 3156
Our filter fans and exhaust filters use high quality filter pads.
The temperature resistant fibrous web pad with progressive fiber construction with improved filtering capacity has a relatively minor air resistance and filters reliably almost all kinds of dust particles.

Remember
Filter fan FC10 / Exhaust filter AC10
85 mm
76 mm
Filter fan FC15 / Exhaust filter AC15
118 mm
110 mm
Filter fan FC20 / Exhaust filter AC20
170 mm
162 mm
Filter fan FC25 / Exhaust filter AC25
215 mm
204 mm
Filter fan FC30 / Exhaust filter AC30
277 mm
270 mm
