Exhaust Filters for Super Flat Filter Fans

3149-0144-00-07

Exhaust Filters for Super Flat Filter Fans

  • Super flat version, external thickness of front grid only 5 mm (0.20“)
  • Front grid removable without tools
  • Safe snap-in mounting

Product description

The front grid can be overpainted to match your color.

Large front grid cut-outs optimize maximum air flow, minimum noise level and visual filter status indication.

Häwa’s super flat filter design makes size variations for specific applications economically feasible.

Environment-friendly, since all parts are made of galvanized sheet steel which can be easily recycled.

Snap-in mounting achieved with catches integrated in the filter frame.

Construction of filter frame using galvanized sheet steel with integrated wire grid, catches, contact brackets assure a high degree of EMI/RFI-shielding.

Technical data

  • Article number: 3149-0144-00-07
  • Protection class: IP42
  • Type Rating: Type 1

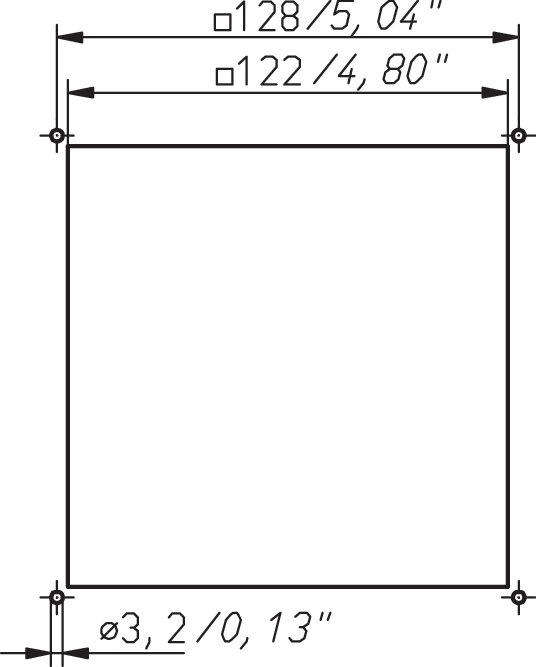

  • Filter fan cut-out size: 122x122 mm/4,80x4,80"
  • type: 0144
  • Material: Sheet steel 1 mm; 19 ga, enclosure galvanized
  • Authorization: cURus
  • Weight: 0.25 kg

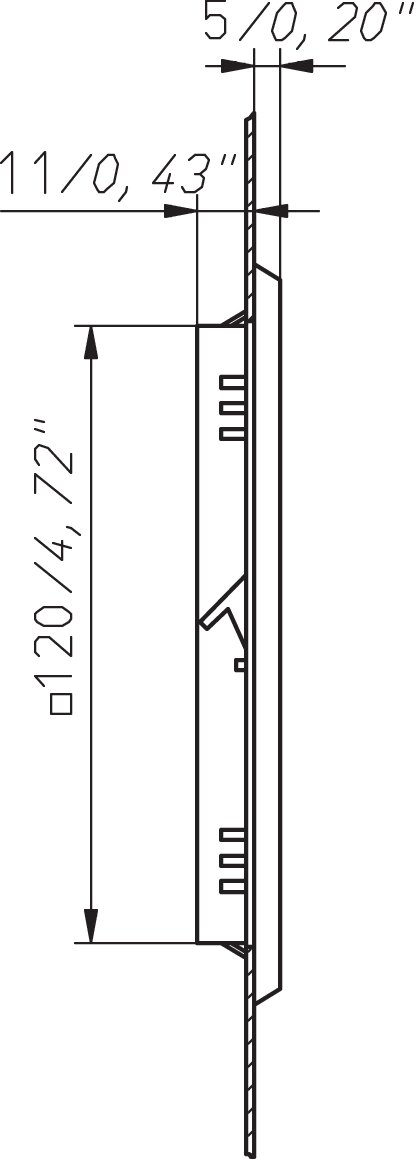

  • Dimensions: Width : 144 mm  Height : 144 mm  Depth : 16 mm
  • Surface: Powder coated RAL 7035
  • 1 super flat exhaust filter with filter pad G3
