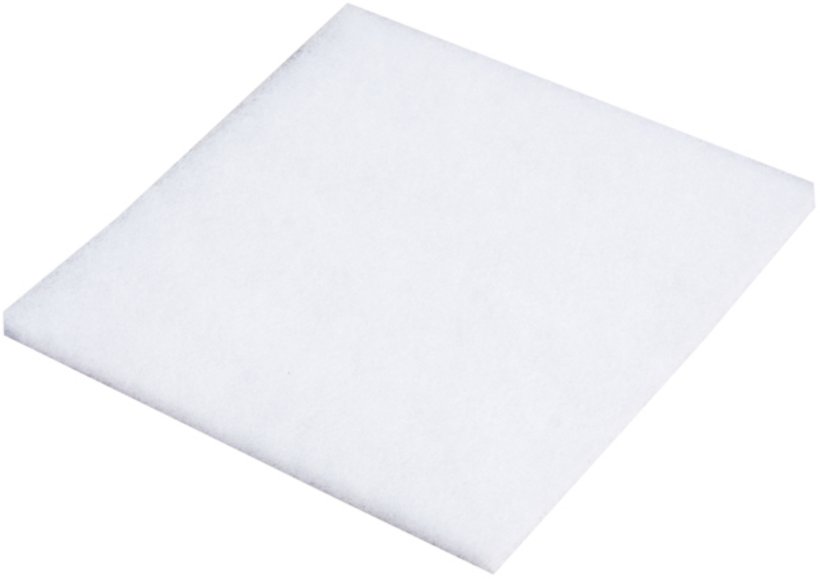

Product description
Our filter fans and exhaust filters use high quality filter pads.
The temperature resistant fibrous web pad with progressive fiber construction with improved filtering capacity has a relatively minor air resistance and filters reliably almost all kinds of dust particles.
Technical Data
-
Order No.: 3156-9003-30-00-00
-
Filter class: G3
-
Dimension: Width : 277 mm Height : 270 mm
-
Type: Filter fan FC30 / Exhaust filter AC30
Notice
- The filter pad should be cleaned at regular intervals, depending on the surrounding environment. The pads can be cleaned by shaking, vacuuming or rinsing in lukewarm clean water. Cleaning the filter pads, assures a long service life.
- 1 set = 10 pieces
6319-3030-00-02
Hose-Proof Hood AC KIT
Protection class
IP56
Type Rating
1, 12, 3R, 4
Type
AC30
Material
Sheet steel, PC/ABS
Type
FixCool Filter Fans AC30
6319-5030-00-02
Hose-Proof Hood AC KIT
Protection class
IP56
Type Rating
1, 12, 3R, 4, 4X
Type
AC30
Material
Stainless steel no. 1.4301, PC/ABS
Type
FixCool Filter Fans AC30
3156-0291-00-00
FixCool exhaust filter
Protection class
IP54
Cut out dimension
291 x 291 mm
Approvals
cURus; cULus
Typ
AC30
3156-0291-00-70
FixCool exhaust filter
Protection class
IP54
Cut out dimension
291 x 291 mm
Approvals
cURus; cULus
Typ
AC30
3156-0291-11-00
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-11-01
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-11-70
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-11-71
FixCool Filter Fan
Nominal voltage
115 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-23-00
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-23-01
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-23-70
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 500/525 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
with exhaust filter at 50/60 Hz: 380/410 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-23-71
FixCool Filter Fan
Nominal voltage
230 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 700/630 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
with exhaust filter at 50/60 Hz: 600/530 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-40-01
FixCool Filter Fan
Nominal voltage
400/460 V AC
Surface finish
RAL 9005
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 850/870 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
3156-0291-40-71
FixCool Filter Fan
Nominal voltage
400/460 V AC
Surface finish
RAL 7035
Cut out dimension
291 x 291 mm
Unimpeded air flow
unimpeded air flow at 50/60 Hz: 850/870 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
with exhaust filter at 50/60 Hz: 620/640 m3/h
Approvals
CE; cURus; cULus
Typ
FC30
6319-3130-11-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC30
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
6319-3130-21-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC30
Material
Sheet steel, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
6319-5130-11-02
Hose-Proof Hood FC KIT
Nominal voltage
115 V AC
Protection type
IP56
Type
FC30
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
6319-5130-21-02
Hose-Proof Hood FC KIT
Nominal voltage
230 V AC
Protection type
IP56
Type
FC30
Material
Stainless steel no. 1.4301, PC/ABS
Unimpeded air flow
unimpeded air flow: 700/630 m3/h
Type
FixCool Filter Fan FC30
