1204-1006-03-00

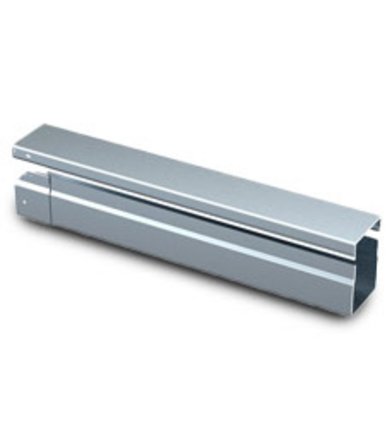

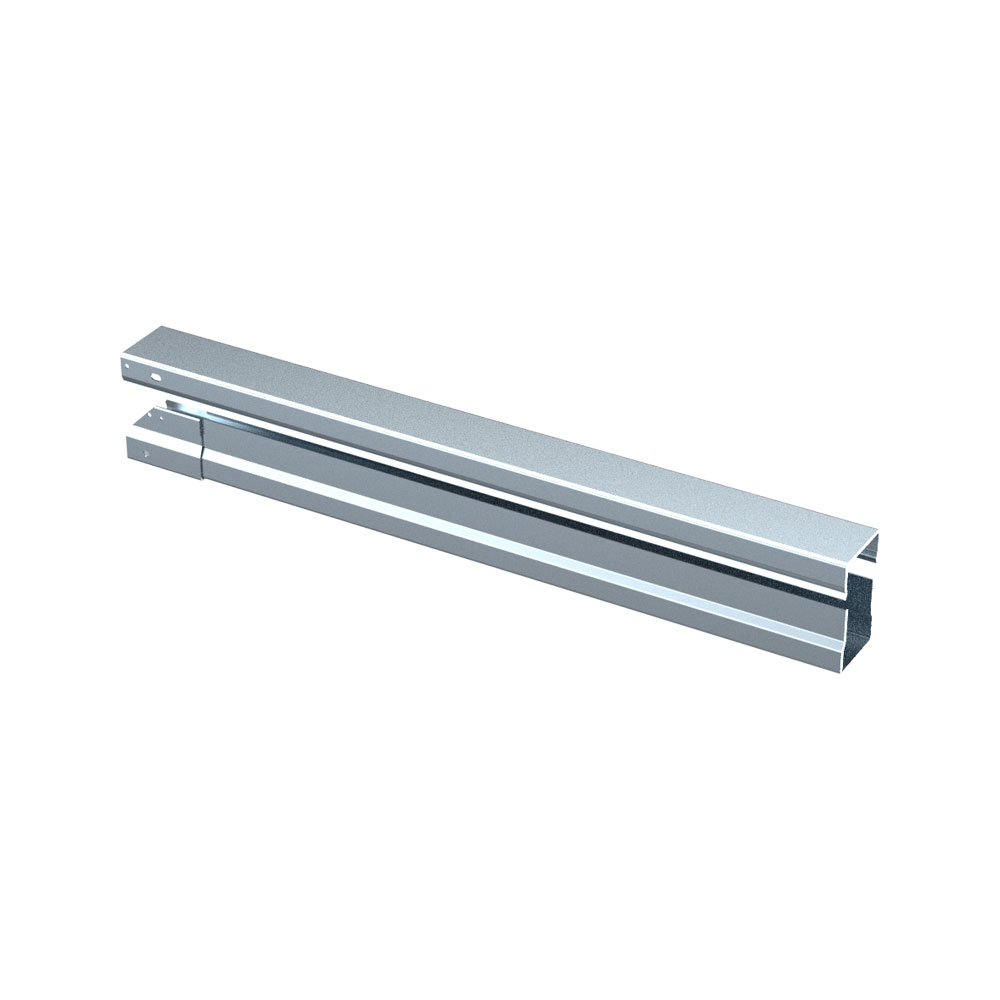

Telescopic Section
- Continuously open insertion
Product description
For length compensations of 75 mm / 2.95” up to 450 mm / 17.71“.
The snap-on cable duct covers require minimum space to open.
If necessary, they can be secured with screws after installation.
The chamfered cable duct ends permit a continuous open insertion.
The cable duct ends are provided with pre-drilled holes for the attachment screws of U-brackets or connection brackets.
Technical data
-
Article number: 1204-1006-03-00
-
type: Cable duct system type 1204
-
Cross section: 60 x 60 mm/2,36 x 2,36"
-
Dimensions: Length: 75 mm - 450 mm
-
Protection class: IP2X
-
Material: Sheet steel
-
Surface: electrolytically-galvanised
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 2.2 kg
Notice
- The telescopic section can only be used with a cable duct.
- The telescopic section must be drilled and screwed together on one side at the final assembly.
- U-brackets or connection brackets are required on one side only for assembly.
- The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.
- Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
- 1 telescopic section with cover
1204-9001-05-08
Screw with Nut
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1204-9004-05-08
Screw with Washer
Thread
M5
Length of thread L
8 mm
Material
Sheet steel
Surface
Galvanized
1204-0006-05-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
500 mm
Material
Sheet steel
1204-0006-10-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
1000 mm
Material
Sheet steel
1204-0006-20-00
Cable Duct
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2000 mm
Material
Sheet steel
1204-0306-13-00
Elbow
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
45°
Routing direction
horizontal
Material
Sheet steel
1204-0306-90-00
Elbow
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
90°
Routing direction
horizontal
Material
Sheet steel
1204-0406-00-00
T-Section
Type
Cable duct system type 1204
Cross section
60 x 60 mm/2,36 x 2,36"
Angle
90°
Routing direction
variable
Material
Sheet steel
Mounting instructions:

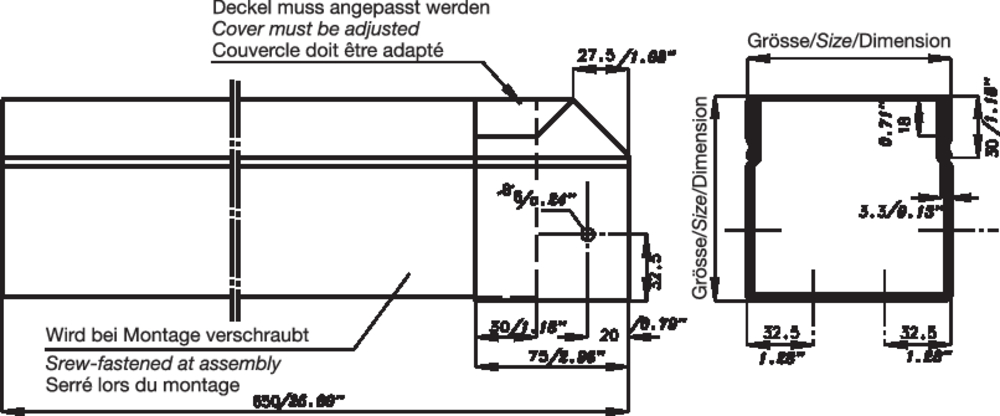

CAD data and other illustrations:
