0396-4002-01-07

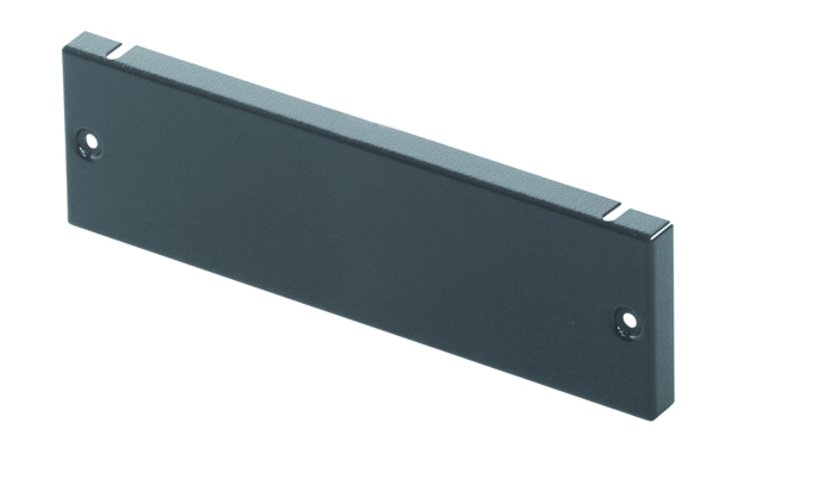

Base cover 100 mm high
- For extended application range of 200 mm high bases
- Closed
Product description
Additional option for 200 mm high base covers
Technical Data
-
Order No.: 0396-4002-01-07
-
Dimension: Suitabel for width : 400 mm
-
Type: 400 mm x X x X
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
-
Sheet thickness: 1,5 mm
Notice
- For W-1600/2000, 2 sets closed base covers are required.
- The bases are provided with attachment screws.
- 1 set (2 pieces) without mounting hardware
0396.4002.50.17
Bases height 200 mm for cabinets type H390 and H395
Suitable for width
400 mm
Suitable for depth
500 mm
Material
Sheet steel
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Socket size
450 mm
Type
closed version
0396.4002.60.17
Bases height 200 mm for cabinets type H390 and H395
Suitable for width
400 mm
Suitable for depth
600 mm
Material
Sheet steel
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Socket size
550 mm
Type
closed version
