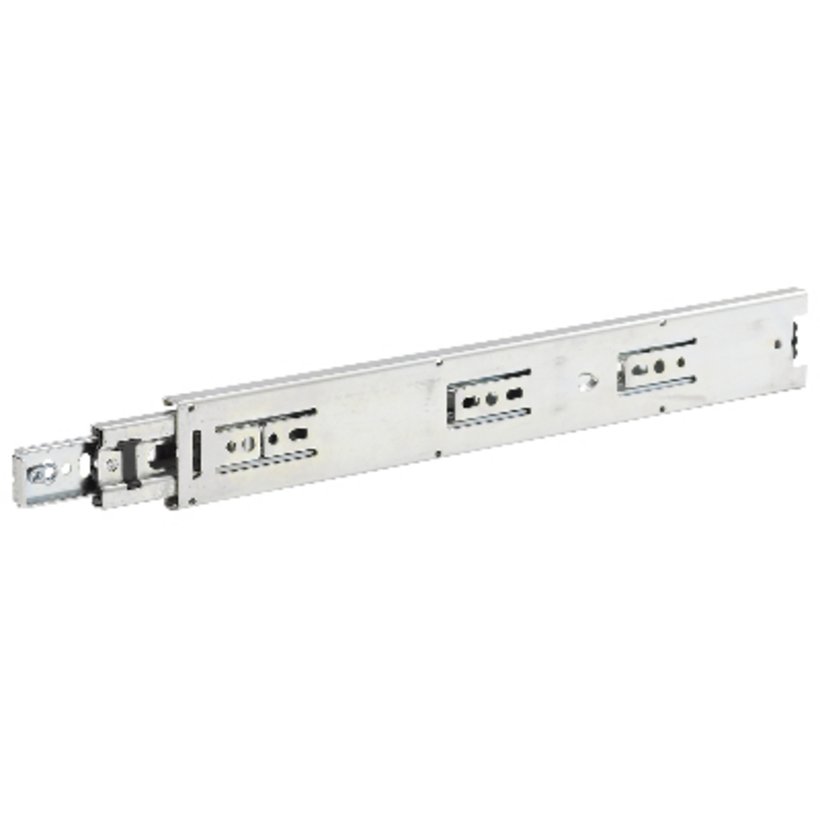

Telescopic slide, full extension, locking device, rapid disengagement

2070-3832-35-00

Telescopic slide, full extension, locking device, rapid disengagement

  • All telescopic slides have a resistance against opening.
  • The slide 2070-3832-35-00 has an additional resistance against closing.

Product description

Robust galvanized steel construction with high precision high-performance bearings.

The extremely flat design of the telescopic slide ensures that you get the best out of the available space (width).

As the slide is symmetric, it can be mounted on either the right or the left side.

Technical data

  • Article number: 2070-3832-35-00
  • PRODUKTGRUPPENNAMEEBENE4: Telescopic slides
  • Material: Sheet steel
  • Surface: Galvanized
  • Load capacity/pair: 49 kg
  • Weight: 1.07 kg
  • Variant: With resistance against closing

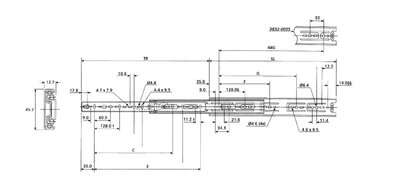

  • Extension length Z: 356 mm
  • Dimension E: 292 mm
  • Dimension F: 224 mm
  • Rail length L: 350 mm

Notice

  • To be able to use the maximum load-bearing capacity as specified, all designated fastening positions must be used. Horizontal mounting is not recommended!
  • 1 pair of telescopic slides without fastening elements. Recommended fasteners: Screw M4 / wood screw 4 mm / euro-screw 6 mm – max. height of screw head 2.5 mm / ø 9.6 mm.
Telescopic slide, full extension, locking device, rapid disengagement
Telescopic slide, full extension, locking device, rapid disengagement
Robust galvanized steel construction with high precision high-performance bearings.
The extremely flat design of the telescopic slide ensures that you get the best out of the available space (width).
As the slide is symmetric, it can be mounted on either the right or the left side.

Remember
350 mm
356 mm
350 mm
356 mm
450 mm
457 mm
500 mm
508 mm
