Product description

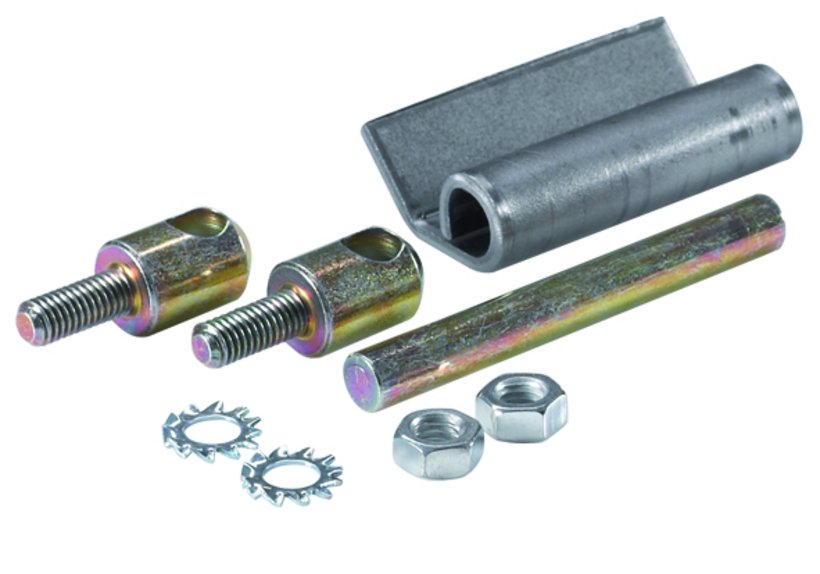

External hinge.
Technical Data
-
Order No.: 3080-9220-10-01
-
Material: Sheet steel
-
Surface: Galvanized
-
Material and Surface: of axis: steel nickel-plated
disks: brass nickel-plated
threaded pin, nuts and serrated lock washer: steel galvanized -

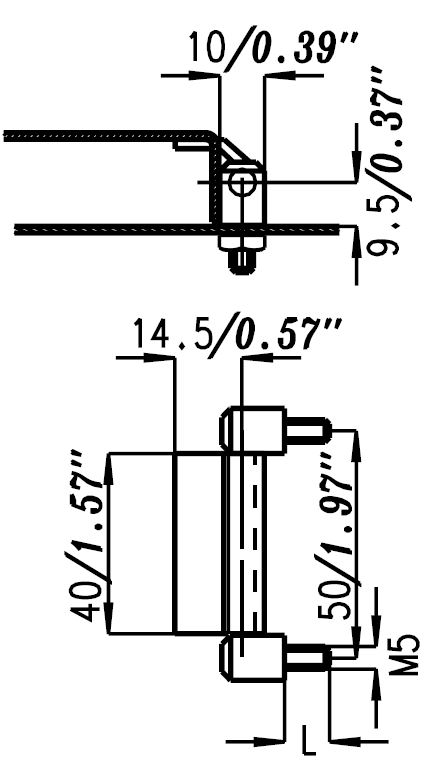

GEWINDELAENGE: 10 mm
-
TUEROEFFFNUNGSWINKEL: 165°
Notice
- You will find single components at Accessories Hinges
- 1 set with 20 hinges and fixing material.
