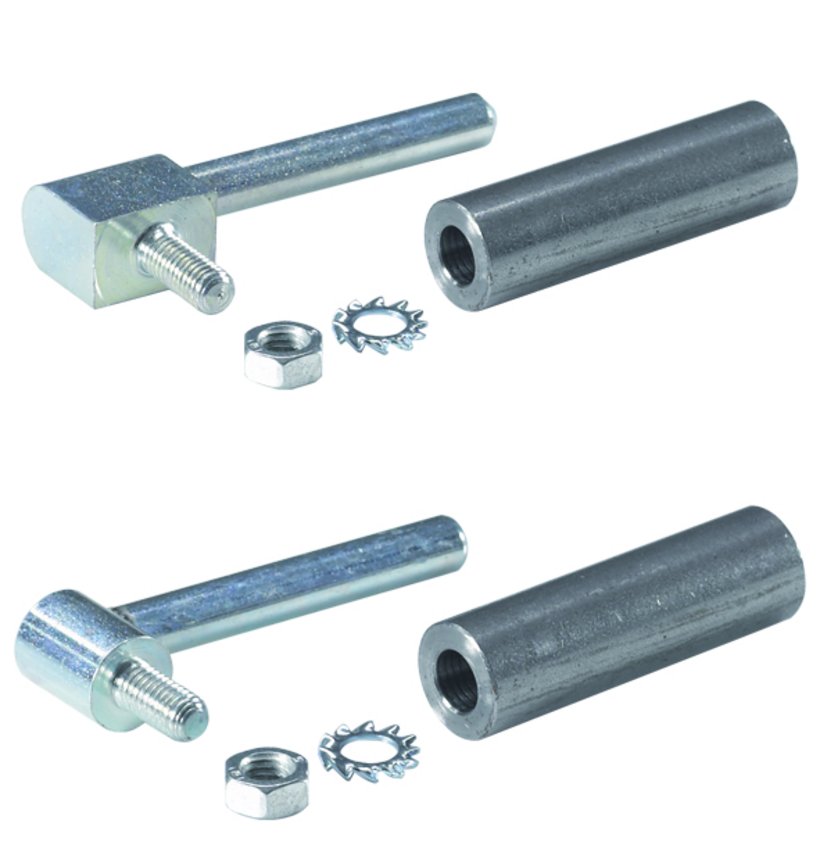

Hinge with weldable socket, detachable

3080-9202-10-02

Hinge with weldable socket, detachable

  • Fixation on frame connector: for screwing on
  • Fixation on door: for spotting on
  • For overlaying doors

Product description

External hinge.

Technical data

  • Article number: 3080-9202-10-02
  • PRODUKTGRUPPENNAMEEBENE4: External hinges
  • Material: Sheet steel
  • Surface: Galvanized
  • Material and surface: of axis: steel nickel-plated; nuts and serrated lock washer: galvanized steel
  • Hinge bearing from: flat material
  • Thread length L: 10 mm

Notice

  • You will find single components at Accessories Hinges
  • 1 set with 20 hinges with fixing material

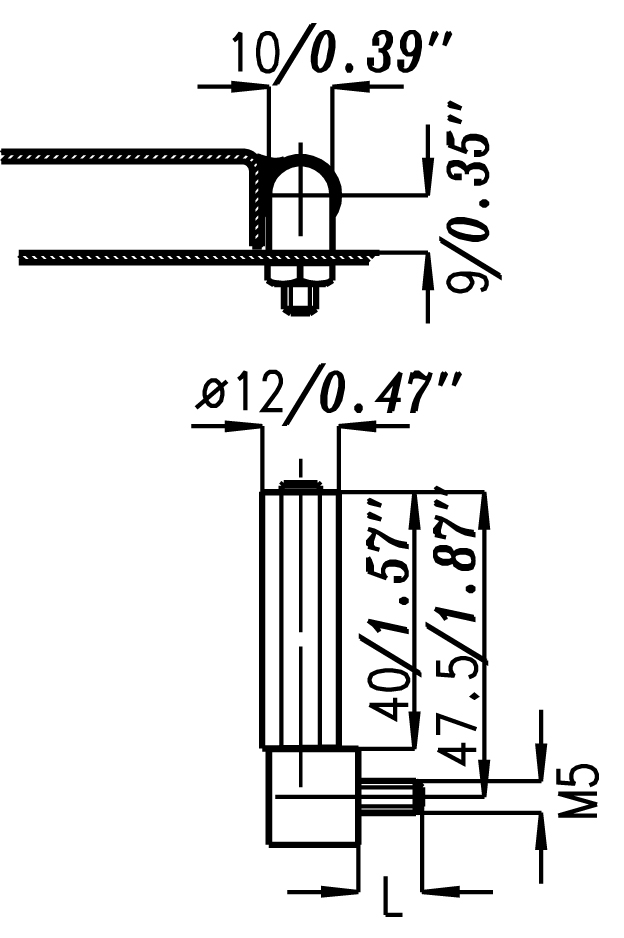

CAD data and other illustrations:
Hinge with weldable socket, detachable
Hinge with weldable socket, detachable
External hinge.

Remember
Sheet steel
Galvanized
10 mm
flat material
Sheet steel
Galvanized
40 mm
flat material
Sheet steel
Galvanized
10 mm
round material
