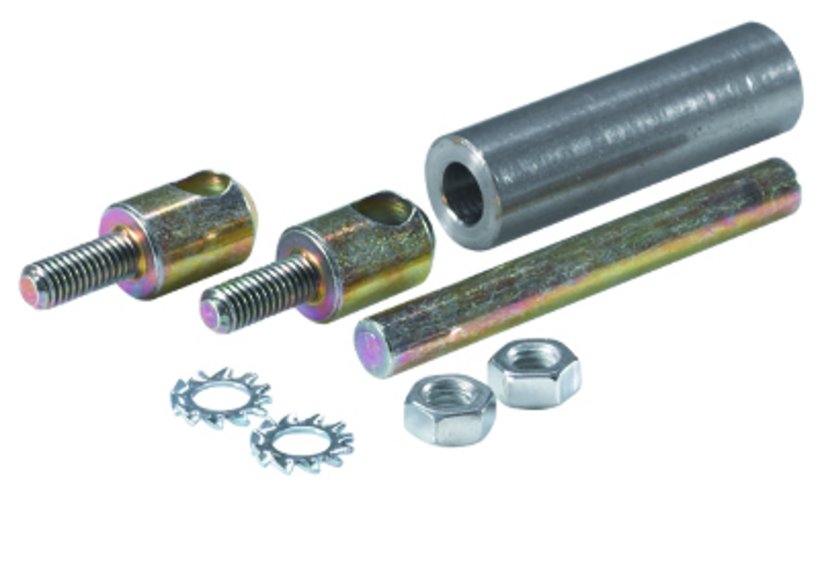

Hinge 180° with weldable socket

3080-9201-10-01

Hinge 180° with weldable socket

  • Fixation on frame connector: for screwing on
  • Fixation on door: for spotting on
  • For overlaying doors
  • For every door height

Product description

External hinge

Hinge mounting from round steel

Technical data

  • Article number: 3080-9201-10-01
  • PRODUKTGRUPPENNAMEEBENE4: External hinges
  • Material: Sheet steel
  • Surface: Galvanized
  • Material and surface: of axis: steel nickel-plated; nuts and serrated lock washer: galvanized steel
  • Thread length L: 10 mm

Notice

  • You will find single components at Accessories Hinges
  • 1 set with 20 hinges with fixing material.

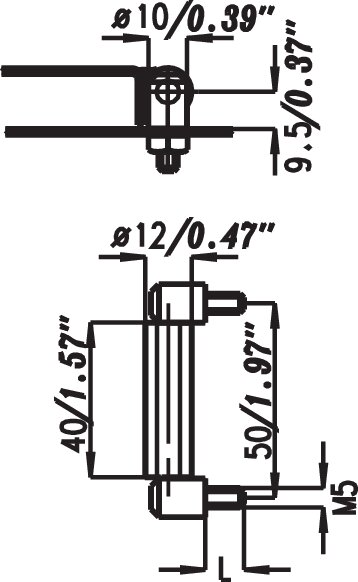

CAD data and other illustrations:
Hinge 180° with weldable socket
Hinge 180° with weldable socket
External hinge
Hinge mounting from round steel

Remember
Sheet steel
Galvanized
10 mm
Sheet steel
Galvanized
40 mm
