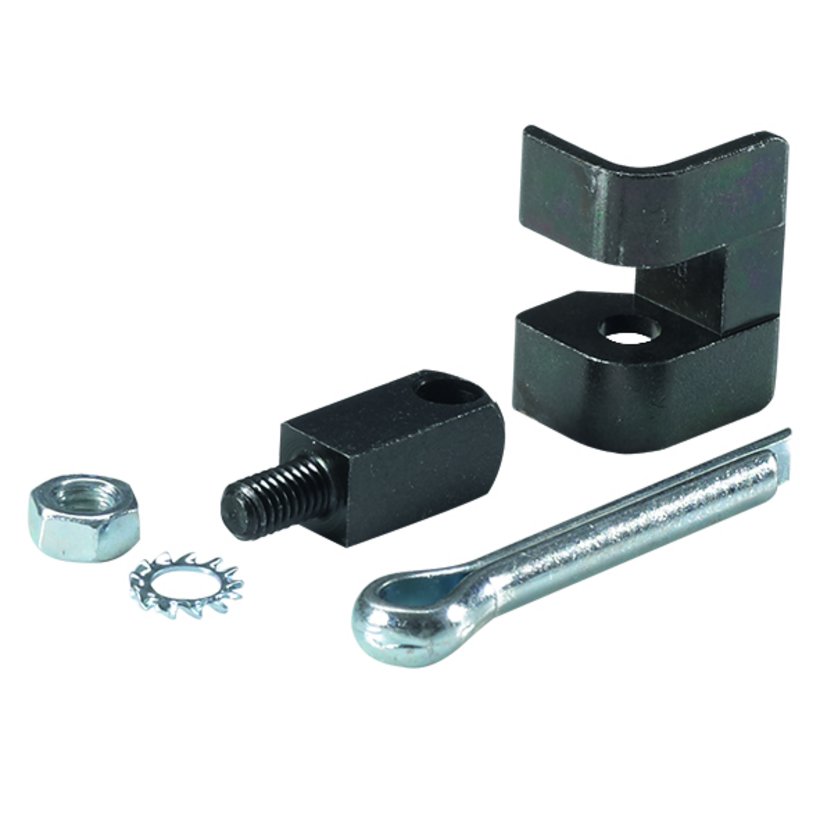

Hinge 180°, detachable

3080-7201-10-10

Hinge 180°, detachable

  • For overlaying and inset doors.

Product description

Fixation on frame connector: for screwing on.

Fixation on door: by splint pin.

Technical data

  • Article number: 3080-7201-10-10
  • PRODUKTGRUPPENNAMEEBENE4: External hinges
  • Material: Hinge support: Plastic
    Hinge bearing and pin: Steel
  • Surface: Hinge support: Black
    Hinge bearing and pin: Galvanized
  • Version: Plastic
  • Gewinde: M5

Notice

  • The hinge can be used for different door heights with, fixing threads M5 or M6 and in different material combinations.
  • Opening angle depending on type of installation 90° up to max. 180°.
  • 1 Hinge complete with suitable serrated lock washer and nut.
CAD data and other illustrations:
Hinge 180°, detachable
Hinge 180°, detachable
Fixation on frame connector: for screwing on.
Fixation on door: by splint pin.

Remember
Plastic
M5
Plastic
M6
Plastic
M5
Plastic
M6
zinc die-casting
M5
zinc die-casting
M6
zinc die-casting
M5
zinc die-casting
M6
Stainless steel
M6
Stainless steel
M6
