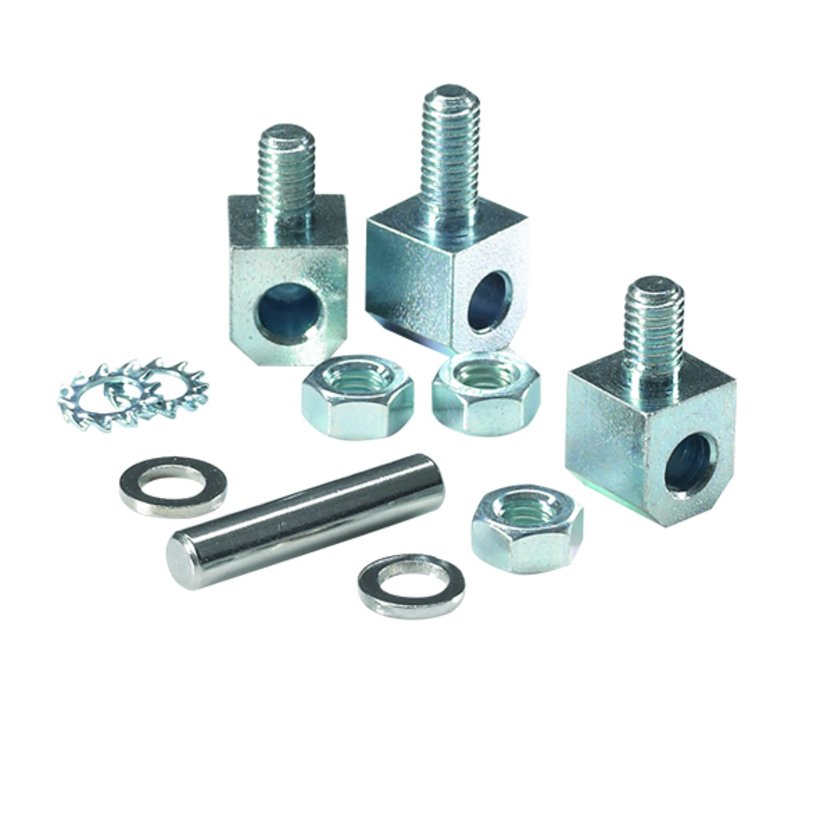

Hinge 180°, for overlaying doors

3080-0220-39-00

Hinge 180°, for overlaying doors

  • Fixation on frame connector: for screwing on
  • Fixation on door: for screwing on
  • For overlaying door

Product description

External hinge for door heights starting from 20 mm.

The version with thread M8 is detachable.

Technical data

  • Article number: 3080-0220-39-00
  • PRODUKTGRUPPENNAMEEBENE4: External hinges
  • Material: Sheet steel
  • Surface: Galvanized
  • Material and surface: of axis: steel nickel-plated
    intermediate washer: brass nickel-plated
    nuts and serrated lock washer: galvanized steel
  • Gewinde: M6
  • 1 Hinge with fixing material

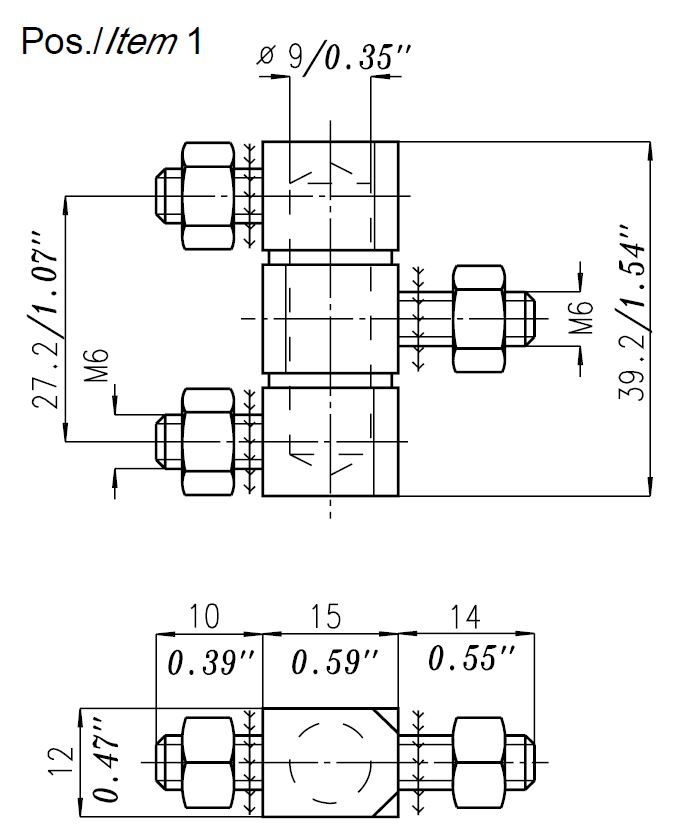

CAD data and other illustrations:
Hinge 180°, for overlaying doors
Hinge 180°, for overlaying doors
External hinge for door heights starting from 20 mm.
The version with thread M8 is detachable.

Art No.
Thread
Material
Surface
Remember
M6
Sheet steel
Galvanized
