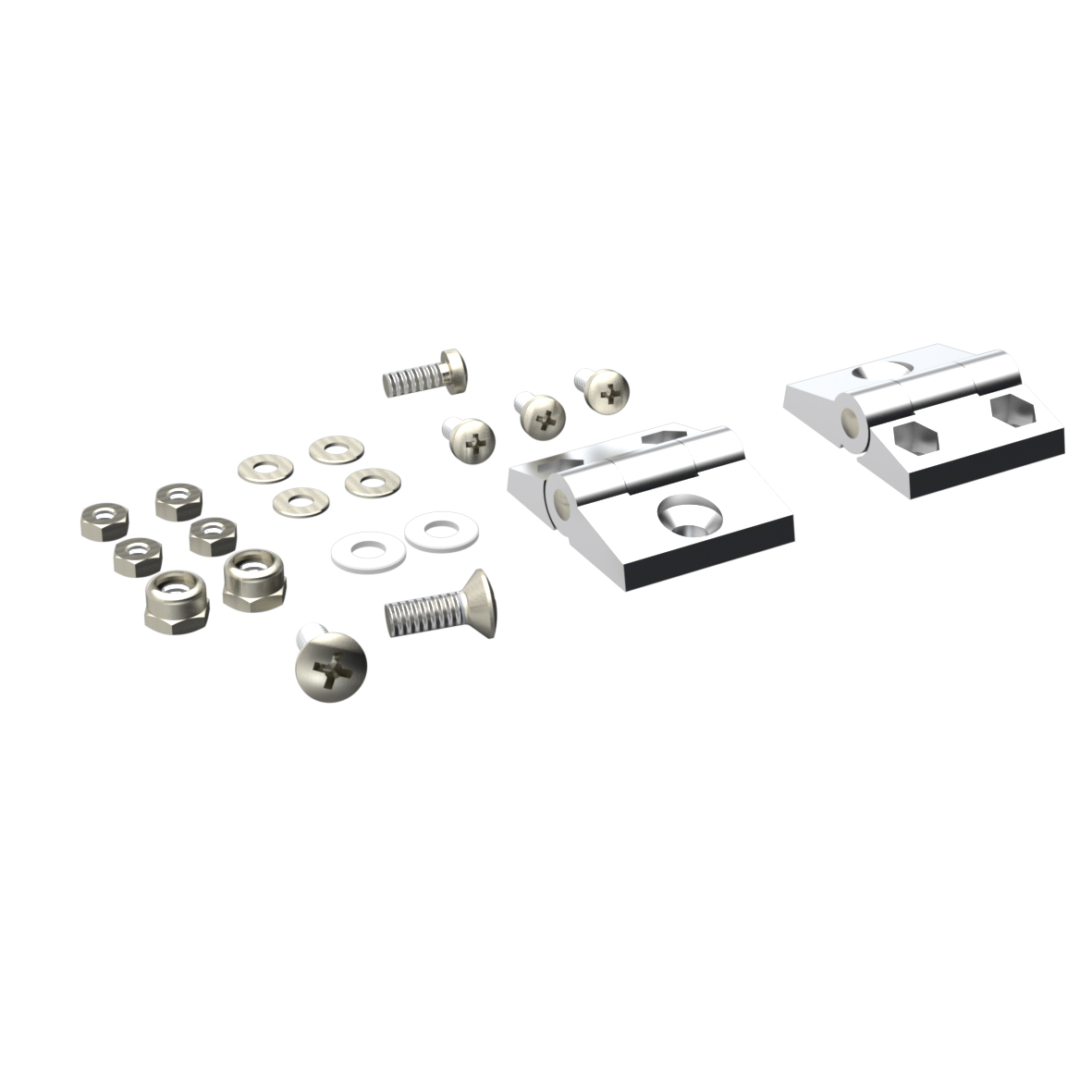

Screw-on hinge 120°

2408-7202-13-04

Screw-on hinge 120°

  • For surface mounted doors.
  • Hinge with minimum dimensions.

Product description

The external hinge can be bolted to the body and the door.

Universal application.

Easy and quick mounting.

Technical Data

  • Order No.: 2408-7202-13-04
  • Material: hinge: zinc die-casting, chrome-plated
    mounting hardware: stainless steel
    hinge pin: hardened steel
  • Dimension: Width : 29 mm  Height : 24 mm  Depth : 8.5 mm
  • Opening angle: max. 120°
  • 1 set = 2 hinges with mounting hardware
