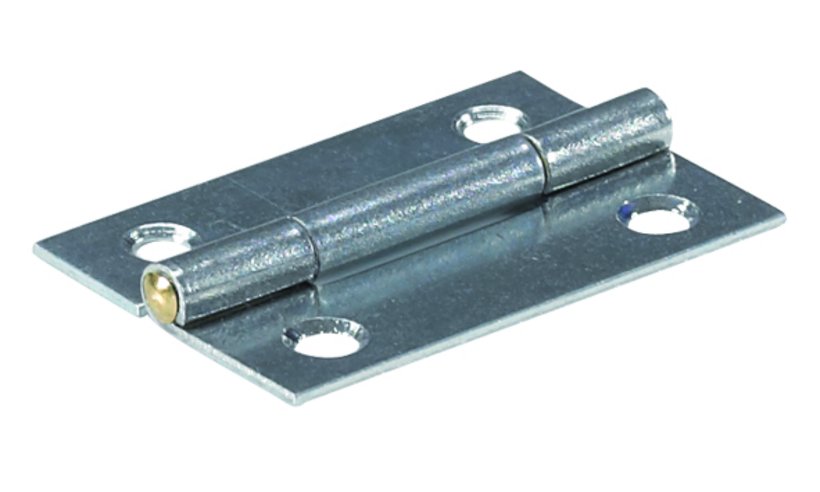

Straight Screw-On Hinge 180°

1201-0601-00-62

Straight Screw-On Hinge 180°

Product description

Universaly applicable hinge

Fixation of the belts by screws

Technical data

  • Article number: 1201-0601-00-62
  • PRODUKTGRUPPENNAMEEBENE4: External hinges
  • Material: Sheet steel
  • Surface: Galvanized
  • Dimensions: Width : 26 mm  Length : 40 mm
  • Sheet thickness: 0.9 mm
  • 1 hinge
Cable Duct kürzbar
1201-0106-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
60 x 60 mm/2,36 x 2,36"
Length
2500 mm
Material
Sheet steel
Cable Duct kürzbar
1201-0110-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
100 x 100 mm/3,94 x 3,94"
Length
2500 mm
Material
Sheet steel
Cable Duct kürzbar
1201-0112-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
200 x 100 mm/7,87 x 3,94"
Length
2500 mm
Material
Sheet steel
Cable Duct kürzbar
1201-0115-25-00
Cable Duct kürzbar
Type
Cable duct system type 1201
Cross section
150 x 150 mm/5,91 x 5,91"
Length
2500 mm
Material
Sheet steel

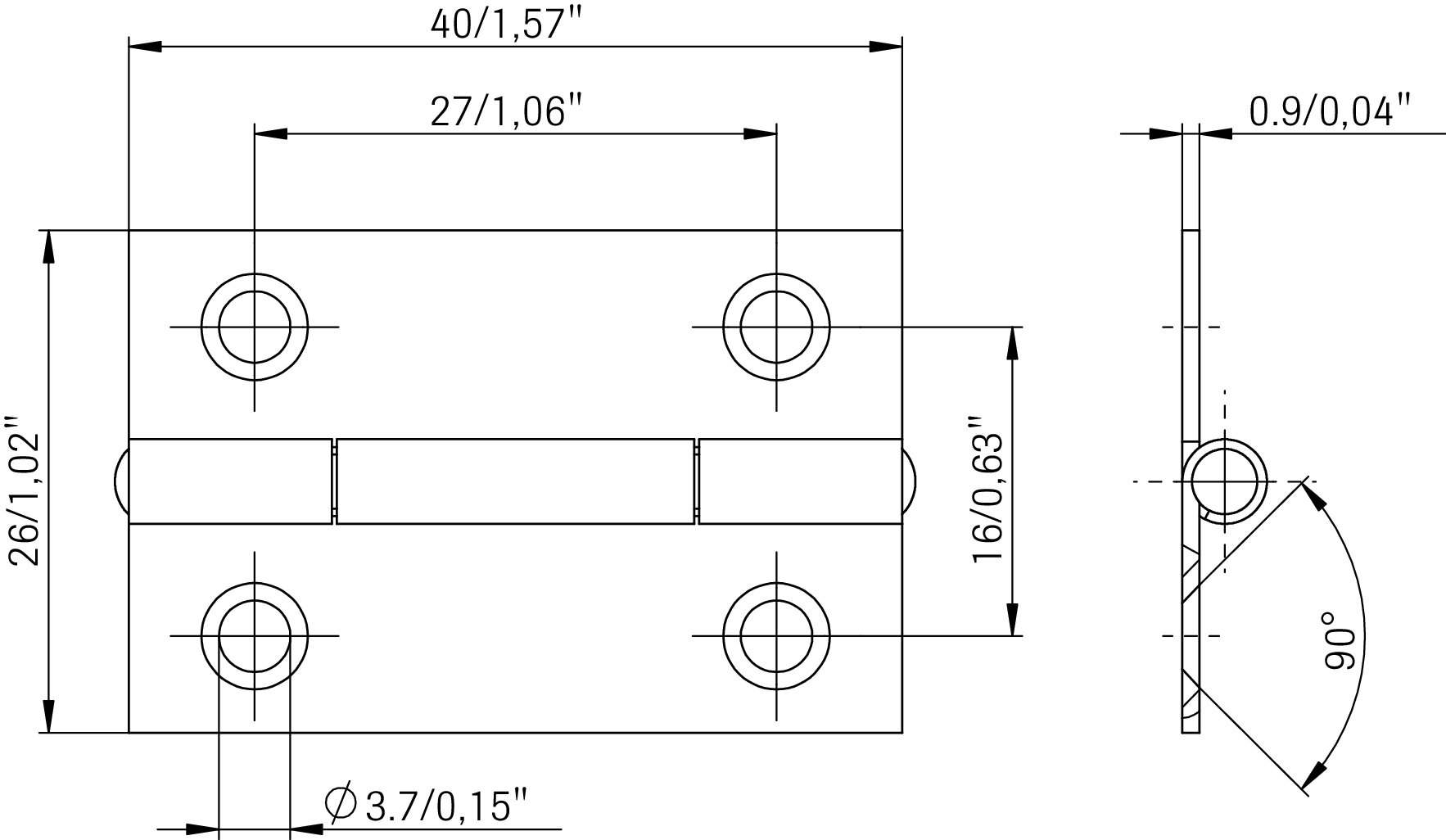

CAD data and other illustrations:
Straight Screw-On Hinge 180°
Straight Screw-On Hinge 180°
Universaly applicable hinge
Fixation of the belts by screws

Art No.
Material
Surface
Remember
Sheet steel
Galvanized
