Hinge 125°, with weldable socket, detachable

3080-0216-06-03

Hinge 125°, with weldable socket, detachable

  • Fixation on frame connector: for screwing on
  • Fixation on door: for spotting on

Product description

Applicable on the right and on the left.

Opening angle of door 125°.

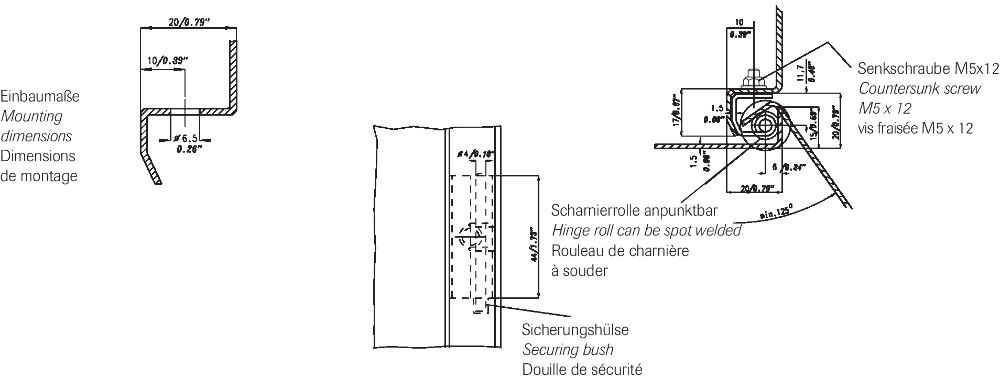

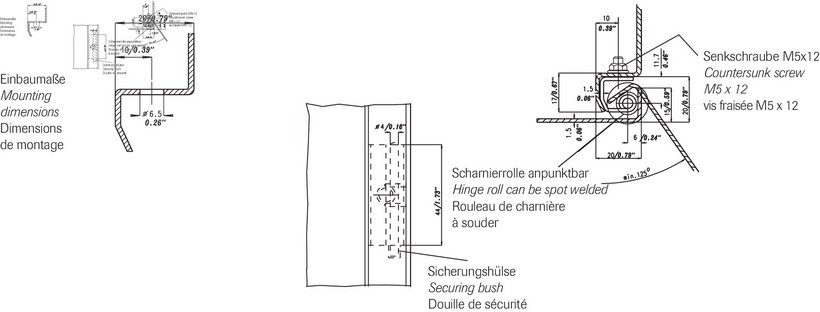

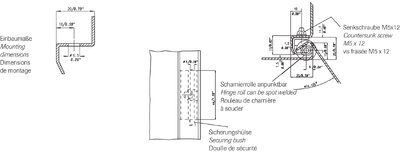

For door height 15 mm and frame connector width starting from 20 mm.

Hinge pin is protected from falling out.

Technical data

  • Article number: 3080-0216-06-03
  • PRODUKTGRUPPENNAMEEBENE4: Concealed hinges
  • Material and surface: hinge mounting: glavanized steel
    weldable socket: steel raw

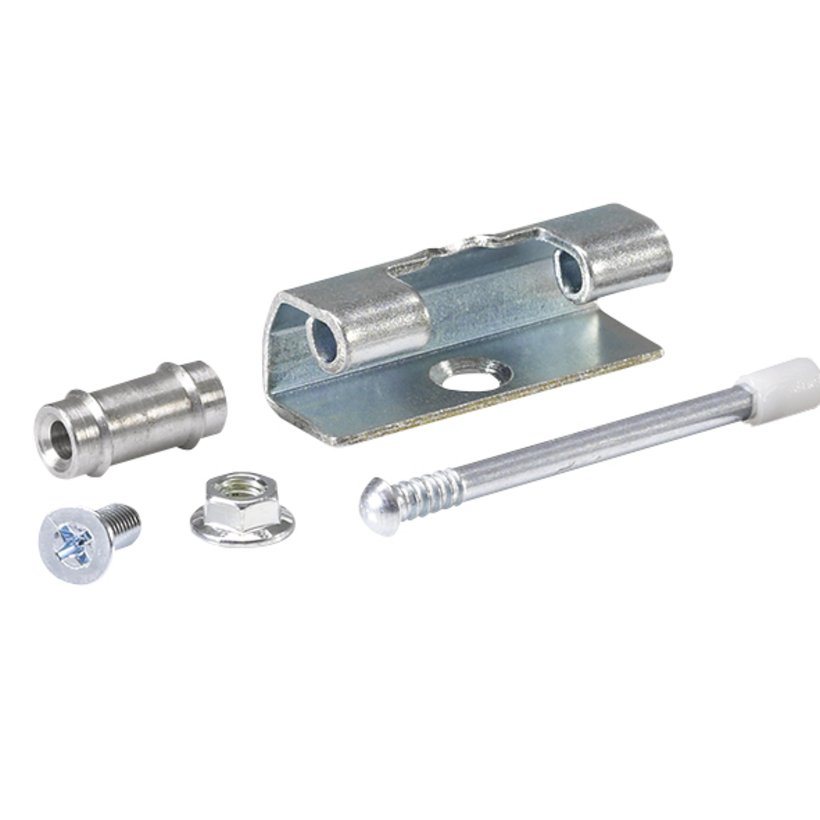

  • 1 hinge consisting of: hinge mounting, weldable socket, countersunk screw M5x12 and security nut DIN 6923 M5.
Hinge 125°, with weldable socket, detachable
Hinge 125°, with weldable socket, detachable
Applicable on the right and on the left.
Opening angle of door 125°.
For door height 15 mm and frame connector width starting from 20 mm.
Hinge pin is protected from falling out.

Art No.
Material and Surface
Remember
hinge mounting: glavanized steel
weldable socket: steel raw
