3070-7583-18-13
Quarter turn latch lock resistant to vibrations
- resistant to vibrations
- all-insulated
Product description
Screwable
Applicable as right hand or left hand lock
The key can be extracted in both positions
Technical Data
-
Order No.: 3070-7583-18-13
-
Material: Polyamide
-
Surface: black
-
lock height b: 18 mm
-
Material and Surface: enclosure, latch and turning lock handle from the same material; Fixing nut: galvanized steel
-
Closing stroke: 90 °
-
Locking: 1333, 333
-
Protection type: IP40

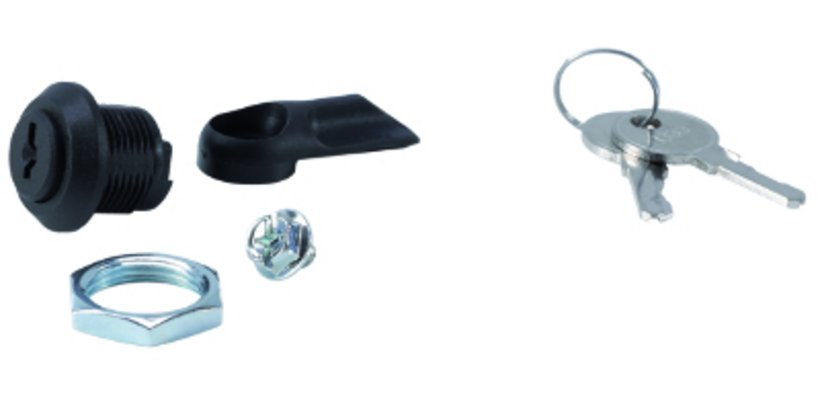

- 1 complete turning lock with latch, fixing parts and closing cylinder with 2 keys
3070-0304-23-00
Hook latch for quarter turn latch locks
Locking height
18 mm
Material
Sheet steel
Type
Small version
3070-0314-06-00
Latch for slide bars
b-Dimension
6 mm
Material
Sheet steel
With or without bolt
with
