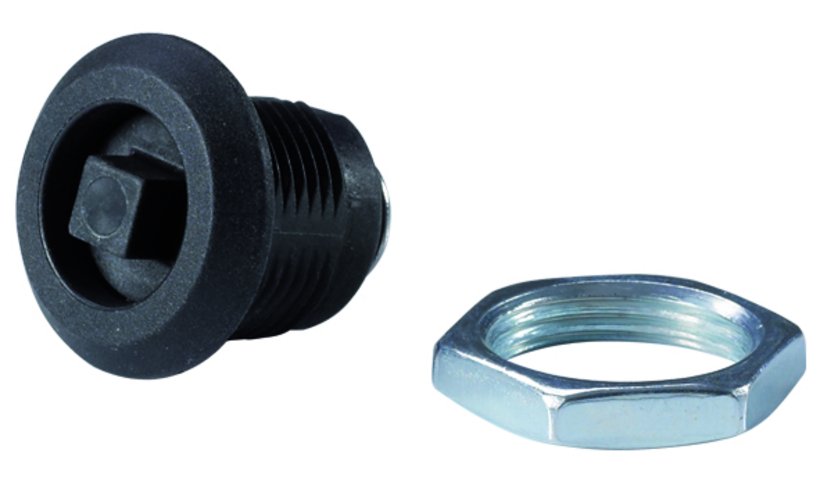

Quarter turn latch lock insulated

3070-7502-12-03

Quarter turn latch lock insulated

  • all-insulated version

Product description

Screwable

Applicable as right hand or left hand lock

Technical data

  • Article number: 3070-7502-12-03
  • PRODUKTGRUPPENNAMEEBENE4: Quarter turn latch lock
  • Material: Polyamide
  • Surface: black
  • Version: Square 7 mm
  • Temperature resistance: -40° - +120°
  • Material and surface: Housing material chrome-plated zinc die-casting, nut, sheet steel bolt galvanized
  • Closing distance: 90 °
  • Protection class: IP40, with correctly mounted sealing set IP65

Notice

  • Other versions on request
  • 1 turning lock with fixing parts but without latch
Key for enclosure
3070-0032-00-00
Key for enclosure
Material
zinc die-casting
Surface
untreated
Type
Square 7 mm
Key for enclosure
3070-0033-00-00
Key for enclosure
Material
zinc die-casting
Surface
untreated
Type
Square 8 mm
Key for enclosure
3070-0034-00-00
Key for enclosure
Material
zinc die-casting
Surface
untreated
Type
Double bit 3 mm
Key for enclosure
3070-0035-00-00
Key for enclosure
Material
zinc die-casting
Surface
untreated
Type
Double bit 5 mm
Latch type D
3070-0304-06-35
Latch type D
b-Dimension
6 mm
Length of latch
35 mm
Latch type D
3070-0304-06-00
Latch type D
b-Dimension
6 mm
Length of latch
45 mm
Latch type D
3070-0304-10-35
Latch type D
b-Dimension
10 mm
Length of latch
35 mm
Latch type D
3070-0304-10-00
Latch type D
b-Dimension
10 mm
Length of latch
45 mm
Latch type D
3070-0304-14-00
Latch type D
b-Dimension
14 mm
Length of latch
45 mm
Latch type D
3070-0304-16-00
Latch type D
b-Dimension
16 mm
Length of latch
45 mm
Latch type D
3070-0304-18-25
Latch type D
b-Dimension
18 mm
Length of latch
25 mm
Latch type D
3070-0304-18-35
Latch type D
b-Dimension
18 mm
Length of latch
35 mm
Latch type D
3070-0304-15-00
Latch type D
b-Dimension
18 mm
Length of latch
45 mm
Latch type D
3070-0304-20-35
Latch type D
b-Dimension
20 mm
Length of latch
35 mm
Latch type D
3070-0304-18-00
Latch type D
b-Dimension
20 mm
Length of latch
45 mm
Latch type D
3070-0304-22-35
Latch type D
b-Dimension
22 mm
Length of latch
35 mm
Latch type D
3070-0304-20-00
Latch type D
b-Dimension
22 mm
Length of latch
45 mm
Latch type D
3070-0304-24-35
Latch type D
b-Dimension
24 mm
Length of latch
35 mm
Latch type D
3070-0304-28-35
Latch type D
b-Dimension
28 mm
Length of latch
35 mm
Latch type D
3070-0304-29-00
Latch type D
b-Dimension
28 mm
Length of latch
45 mm
Latch type D
3070-0304-32-00
Latch type D
b-Dimension
32 mm
Length of latch
45 mm
Latch type D
3070-0304-35-35
Latch type D
b-Dimension
35 mm
Length of latch
35 mm
Latch type D
3070-0304-35-00
Latch type D
b-Dimension
35 mm
Length of latch
45 mm
Latch type D
3070-0304-40-00
Latch type D
b-Dimension
40 mm
Length of latch
45 mm
Latch type D
3070-0304-50-00
Latch type D
b-Dimension
50 mm
Length of latch
45 mm
Hook latch for quarter turn latch locks
3070-0304-23-00
Hook latch for quarter turn latch locks
Material
Sheet steel
Surface
Galvanized
Type
Small version
Hook latch for quarter turn latch locks
3070-0304-28-00
Hook latch for quarter turn latch locks
Material
Sheet steel
Surface
Galvanized
Type
Big version
Quarter turn latch lock insulated
Quarter turn latch lock insulated
Screwable
Applicable as right hand or left hand lock

Remember
Square 7 mm
Polyamide
black
Square 8 mm
Polyamide
black
Double bit 3 mm
Polyamide
black
Double bit 5 mm
Polyamide
black
