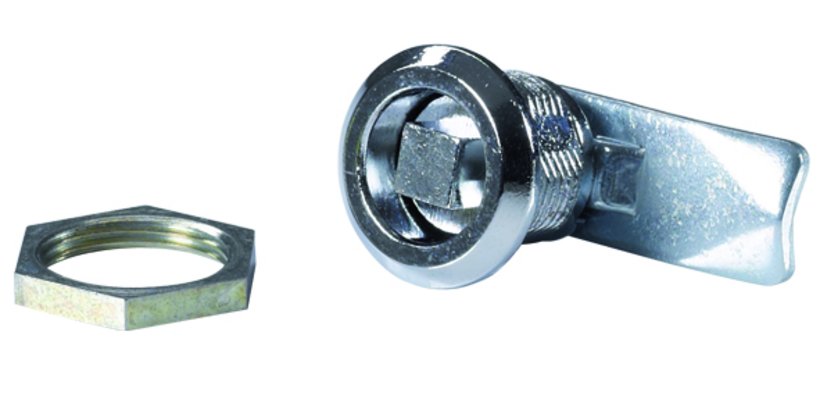

Quarter turn latch lock, small version E1

3070-7322-11-15

Quarter turn latch lock, small version E1

  • For smaller breakout

Product description

Screwable

Applicable as right hand and left hand lock

Mounting possible without disassembly

Completely pre-mounted

Technical data

  • Article number: 3070-7322-11-15
  • PRODUKTGRUPPENNAMEEBENE4: Quarter turn latch lock
  • Dimension L: 24 mm
  • Material: GDZn
  • Surface: chrome-plated
  • Version: Square 6 mm
  • Dimension b: 13.5 mm
  • Closing distance: 90 °
  • Protection class: IP40

Notice

  • Only the square key type 3070-0021-00-00 fits the 6 mm square bolt
  • Protection class IP 65 with optional sealing set type 3070-7322-65-00 (see accessories)
  • 1 quarter turn latch lock pre-assembled with latch and fixing parts
Quarter turn latch lock, small version E1
Quarter turn latch lock, small version E1
Screwable
Applicable as right hand and left hand lock
Mounting possible without disassembly
Completely pre-mounted

Remember
Square 6 mm
GDZn
chrome-plated
24 mm
13.5 mm
Square 6 mm
GDZn
chrome-plated
24 mm
19.5 mm
Slot
GDZn
chrome-plated
24 mm
13.5 mm
Slot
GDZn
chrome-plated
24 mm
19.5 mm
