3080-9081-02-50

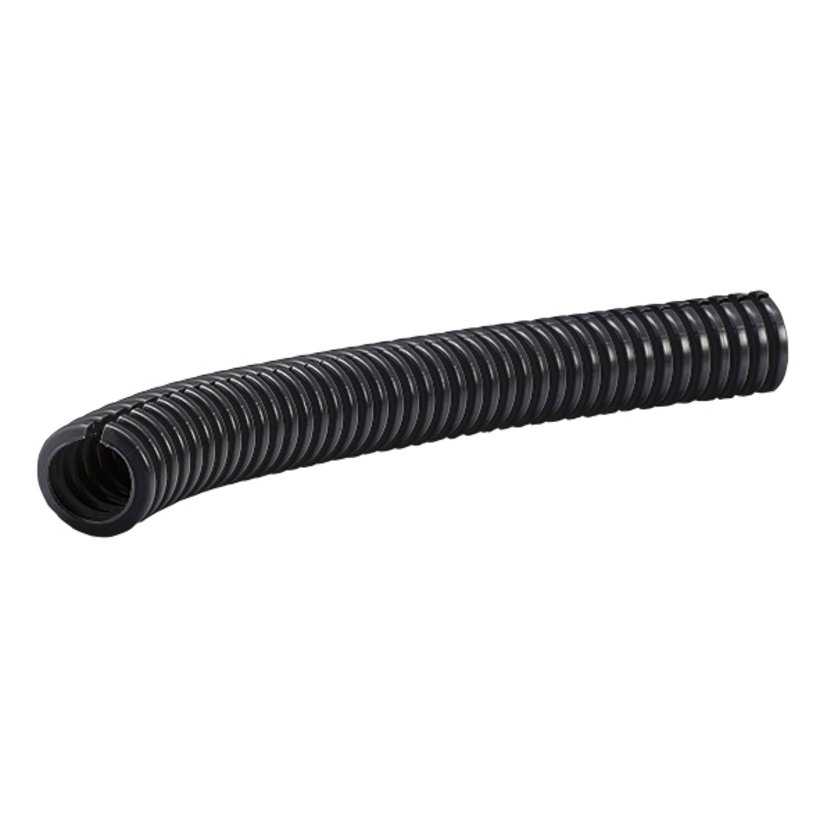

Cable protection conduit, open, flexible
- Specially approved for robot applications
Product description
To protect cables and bundle individual wires. .
Cable protection conduit suitable for extreme movements and high mechanical stresses.
The slotted conduit enables easy laying of pre-terminated cables with plugs
Also very well suited for repairing existing systems.
Main application: for robots, in handling systems and in cable drag chains.
Technical data
-
Article number: 3080-9081-02-50
-
PRODUKTGRUPPENNAMEEBENE4: Cable routing and installation
-
Material: Thermoplastic elastomer
-
Surface: black
-
Authorization: ROBI
-
BRANDKLASSE: HB
-
Temperature resistance: -40° - +120°
-
DRUCKBELASTUNG: >500 N/100 mm
-
Size: M 25/ P 21
Notice
- Larger diameters available upon request
- By the metre, min. 5 metres

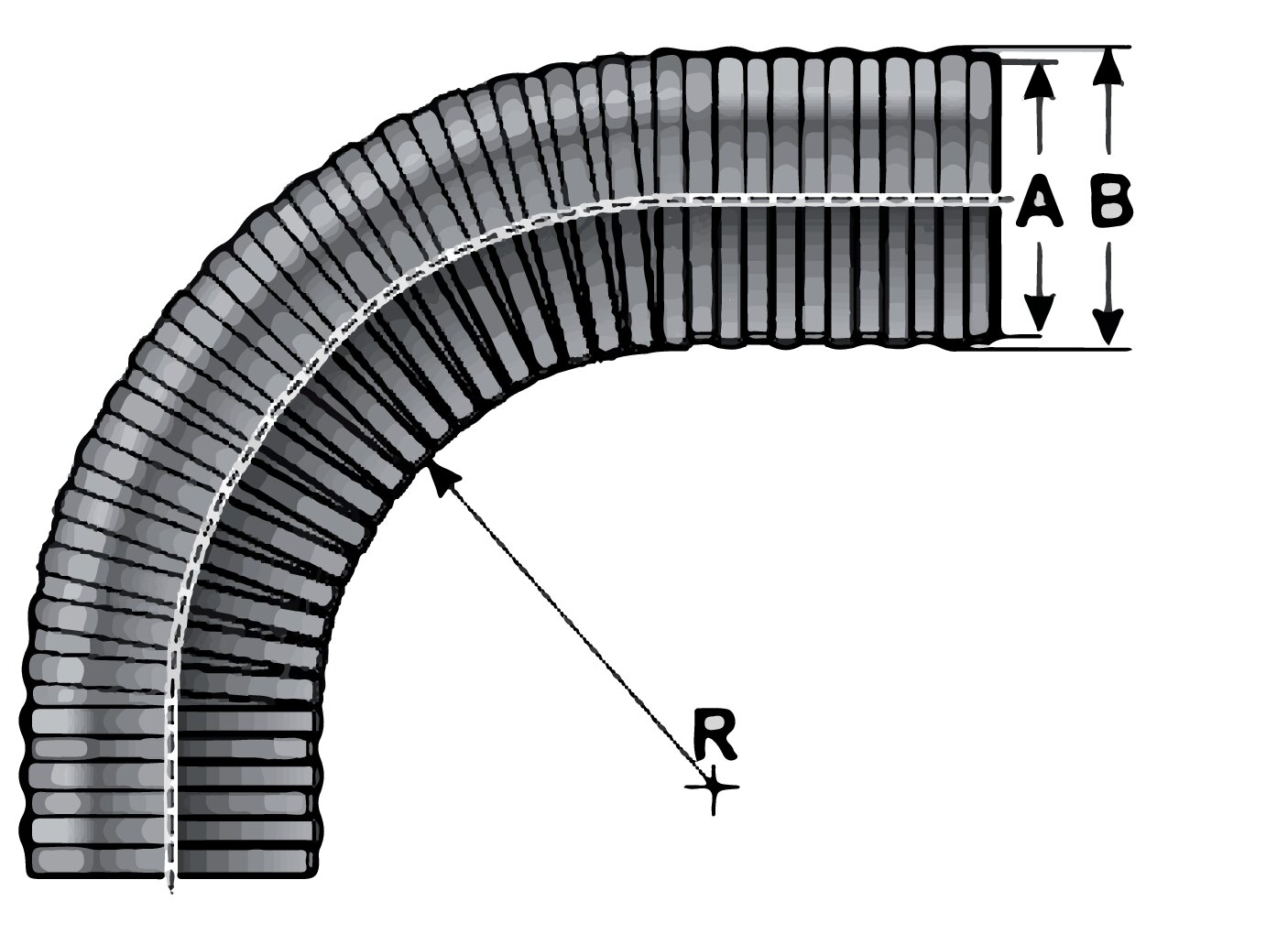

CAD data and other illustrations:
