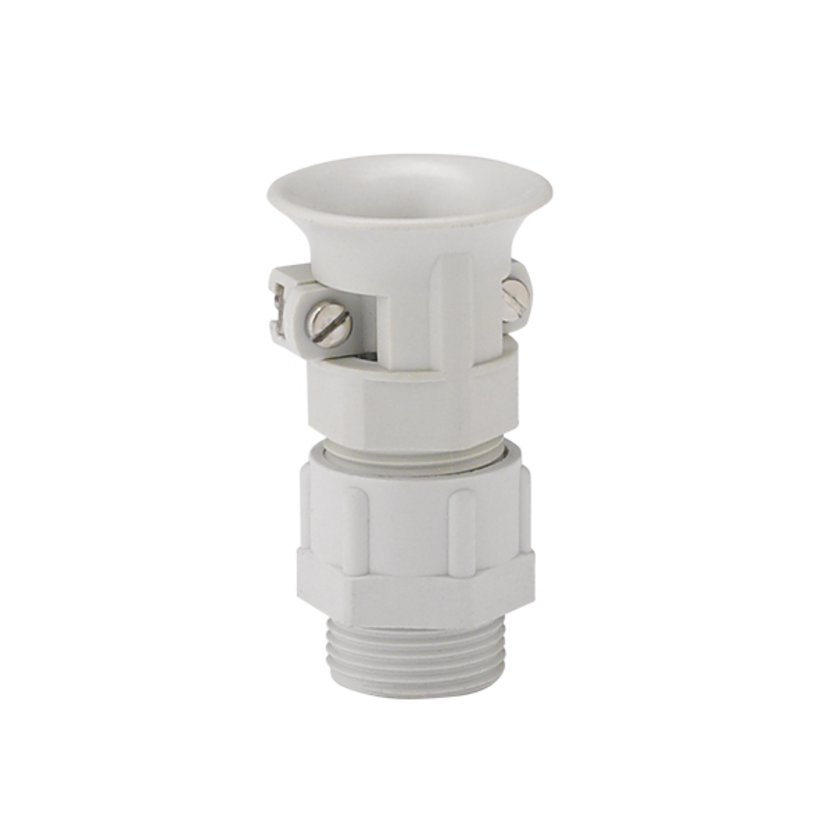

Cable gland with very high strain relief

2331-0226-12-15

Cable gland with very high strain relief

Product description

Provides also good bending protection. Very high tightening forces due to the separate strain relief.

Technical data

  • Article number: 2331-0226-12-15
  • PRODUKTGRUPPENNAMEEBENE4: Cable glands
  • PRODUKTGRUPPENNAMEEBENE5: Cable gland, plastic
  • Dimension L: 11 mm
  • Protection class: IP55
  • Connection thread: metric
  • Temperature resistance: from: -30 °C/-86 °F to +80 °C/+176 °F
  • Length: 53 mm
  • Length: 11 mm
  • Width across flats: 19 mm
  • Gewinde: M 12 x 1,5
  • Clamping range: from : 5.5 mm
  • Dimension H: 53 mm
  • 1 unit
Sealing ring
2331-0003-07-00
Sealing ring
For thread:
M 12; PG 7
CAD data and other illustrations:
Cable gland with very high strain relief
Cable gland with very high strain relief
Provides also good bending protection. Very high tightening forces due to the separate strain relief.

Remember
metric
M 12 x 1,5
5.5 mm
IP55
metric
M 16 x 1,5
5.5 mm
IP55
metric
M 20 x 1,5
7.5 mm
IP55
metric
M 20 x 1,5
9 mm
IP55
metric
M 20 x 1,5
10 mm
IP55
metric
M 25 x 1,5
10 mm
IP55
metric
M 25 x 1,5
13 mm
IP55
metric
M 32 x 1,5
13 mm
IP55
metric
M 32 x 1,5
18 mm
IP55
metric
M 40 x 1,5
18 mm
IP55
PG
PG 9
5.5 mm
IP55
PG
PG 11
7.5 mm
IP55
PG
PG 13,5
9 mm
IP55
PG
PG 16
10 mm
IP55
PG
PG 21
13 mm
IP55
