Cable gland with very high pressure relief, nickel-plated

2330-0196-12-15

Cable gland with very high pressure relief, nickel-plated

Product description

Easy-to-install gland with good sealing and clamping range.

To be used with high mechanical and chemical stability requirements. Very high tightening forces due to the separate strain relief.

Technical data

  • Article number: 2330-0196-12-15
  • PRODUKTGRUPPENNAMEEBENE4: Cable glands
  • PRODUKTGRUPPENNAMEEBENE5: Cable gland, nickel-plated

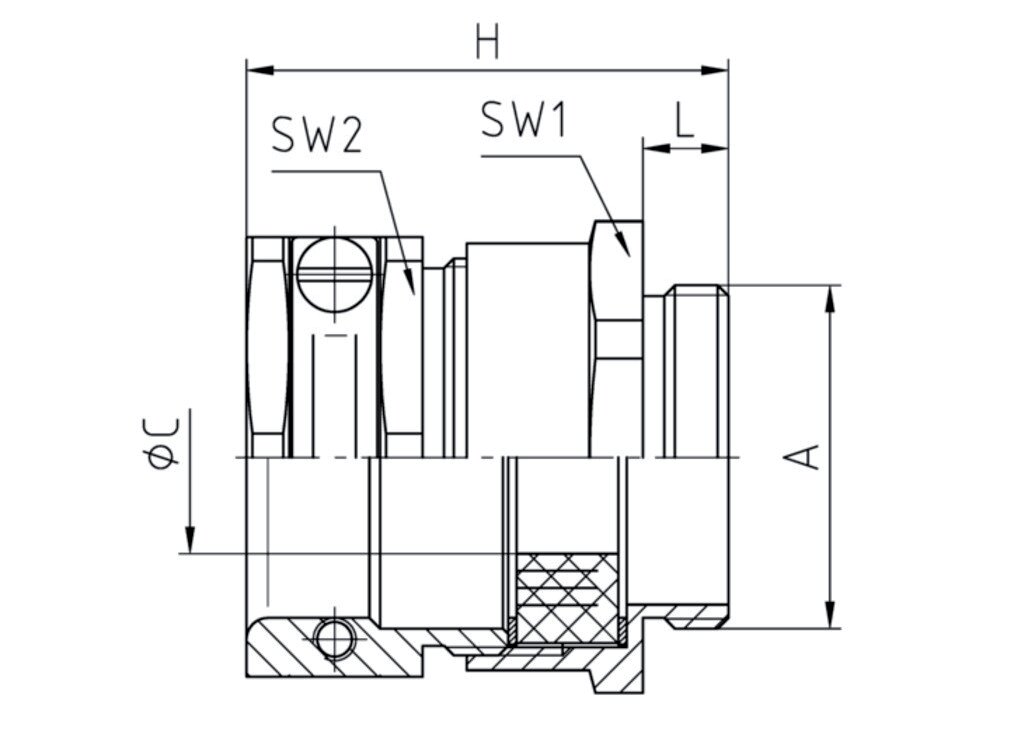

  • Dimension L: 6 mm
  • Protection class: IP55
  • Temperature resistance: from: -30 °C/-86 °F to: +100 °C/+212 °F
  • Gewinde: M 12 x 1,5
  • Dimension H: 31.5 mm

Notice

  • Glands with larger threads available upon request
  • 1 unit
Hexagon nut
2330-0002-12-15
Hexagon nut
Material
brass
Thread
M 12 x 1,5
Hexagon nut
2330-0002-16-15
Hexagon nut
Material
brass
Thread
M 16 x 1,5
Hexagon nut
2330-0002-20-15
Hexagon nut
Material
brass
Thread
M 20 x 1,5
Hexagon nut
2330-0002-25-15
Hexagon nut
Material
brass
Thread
M 25 x 1,5
Hexagon nut
2330-0002-32-15
Hexagon nut
Material
brass
Thread
M 32 x 1,5
Hexagon nut
2330-0002-40-15
Hexagon nut
Material
brass
Thread
M 40 x 1,5
Hexagon nut
2330-0002-07-05
Hexagon nut
Material
brass
Thread
PG 7
Hexagon nut
2330-0002-09-05
Hexagon nut
Material
brass
Thread
PG 9
Hexagon nut
2330-0002-11-05
Hexagon nut
Material
brass
Thread
PG 11
Hexagon nut
2330-0002-13-05
Hexagon nut
Material
brass
Thread
PG 13,5
Hexagon nut
2330-0002-16-05
Hexagon nut
Material
brass
Thread
PG 16
Hexagon nut
2330-0002-21-05
Hexagon nut
Material
brass
Thread
PG 21
Hexagon nut
2330-0002-29-05
Hexagon nut
Material
brass
Thread
PG 29
Hexagon nut
2330-0002-36-05
Hexagon nut
Material
brass
Thread
PG 36
Hexagon nut
2330-0002-42-05
Hexagon nut
Material
brass
Thread
PG 42
Hexagon nut
2330-0002-48-05
Hexagon nut
Material
brass
Thread
PG 48
Cable gland with very high pressure relief, nickel-plated
Cable gland with very high pressure relief, nickel-plated
Easy-to-install gland with good sealing and clamping range.
To be used with high mechanical and chemical stability requirements. Very high tightening forces due to the separate strain relief.
