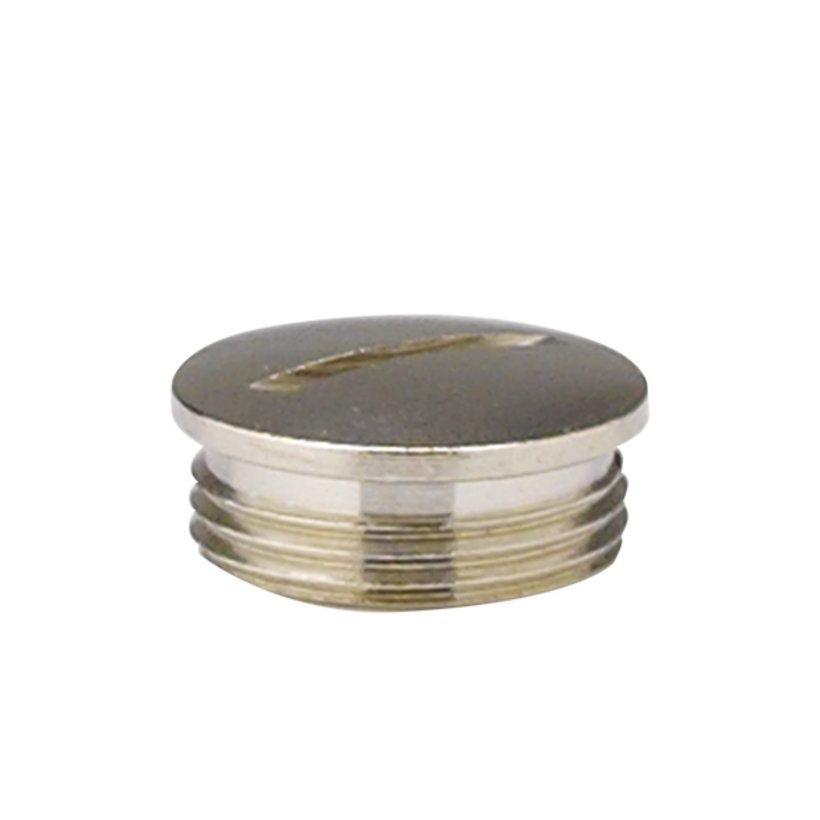

Product description
To close unused threaded or through-bores.
Technical Data
-
Order No.: 2330-0101-12-15
-

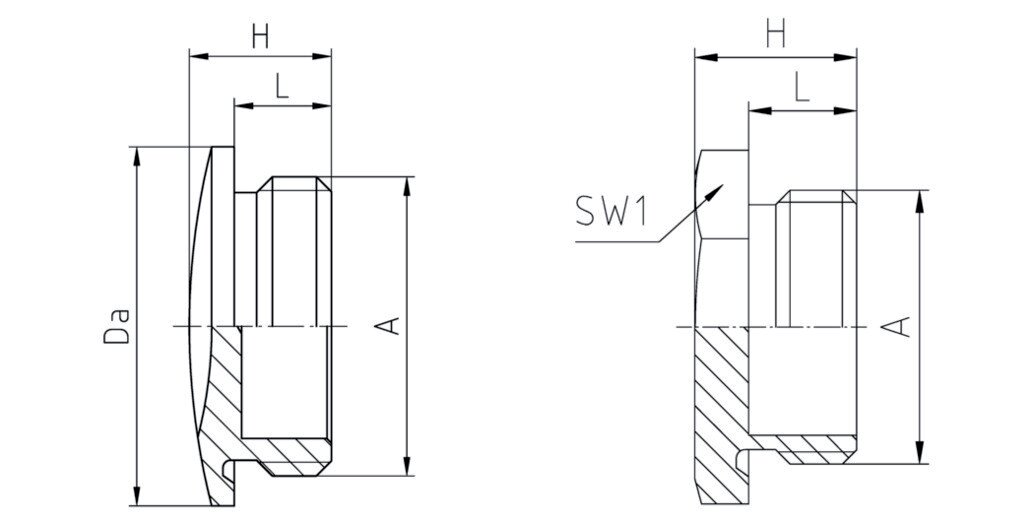

Dimension L: 5 mm
-
Da: 16 mm
-
Material: brass
-
Surface: electroplated nickel
-
Temperature resistance: from: -60 °C/-140 °F to: +200 °C/+392 °F
-
Thread: M 12 x 1,5
-
Dimension H: 8 mm
Notice
- Other PG sizes available upon request
- 1 unit
