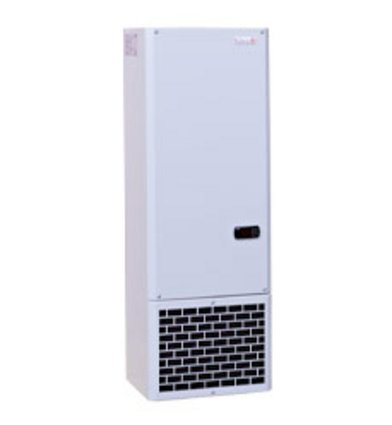

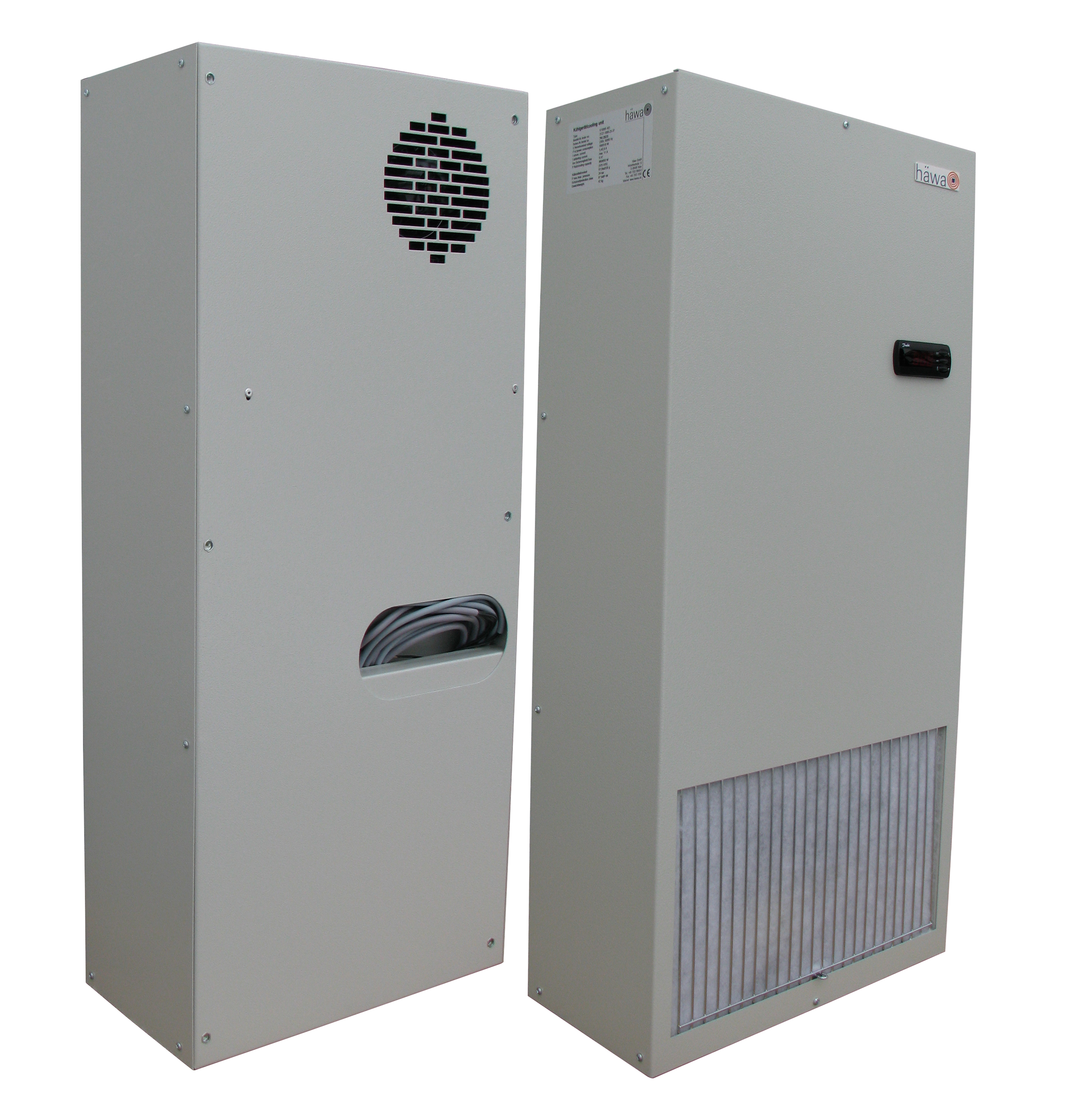

Air Conditioners with Filter and Compact Controller

3127-1000-23-37

Air Conditioners with Filter and Compact Controller

  • Compact design
  • High cooling capacity
  • Protection class: IP54
  • Resistant
  • Approval: CE

Product description

häwa air conditioners can be us as independent devices up to an ambient temperature of max. 50/55 °C. They have two separate IP54-sealed air circuits, equipped with 1 fan each.

Heat transfer from the inside of the cabinet to the outside takes place through active cooling (refrigerating unit).

This allows to cool down the temperature in the cabinet below the ambient temperature. häwa air conditioners operate with the CFC-free, ozone-friendly refrigerant R134a.

External fan operates only when cooling, which avoids unnecessary noise and pollution.

The temperature is set at the factory to +35 °C. It can be field-adjusted after removal of the cover panel, or for devices equipped with a display, from the outside.

A control line for the door switch, separately connected for units with a cooling capacity of 800 W or more, permits remote ON/OFF switching of the unit without power disconnect. General fault signal as potential-free changeover contact fed out in the control line.

Free from silicone compounds, PCB, PCT, formaldehyde and cadmium.

Compact controller: A compact controller with display, built in at the front of the device controls the compressor and the external fan. The internal fan is controlled via the door switch.

For devices of 1000 W or more, the condensation is drained off directly via a discharge nozzle in the bottom panel.

Power connection via a power cord fed through the rear panel of the device.

Technical data

  • Article number: 3127-1000-23-37
  • PRODUKTGRUPPENNAMEEBENE4: Air conditioners with filter
  • Frequency: 50 Hz/60 Hz
  • Protection class: IP54, external fan IP44
  • UMGEBUNGSTEMPERATUR_DICT: from: +20 °C/+68 °F to: +55 °C/+131 °F
  • Refrigerant: R134a
  • KUEHLLEISTUNG: 850 / 960 W
  • Nominal voltage: 230 V AC
  • LUFTLEISTUNG: Cold/warm side: 575/860 m³/h
  • Material: Sheet steel
  • Regulation: Compact Controller
  • Factory setting: +35 °C/+95 °F
  • Mounting type: external mounting
  • Electrical connection: power cord
  • LEISTUNGSAUFNAHME: at 50 Hz: 510 W
    at 60 Hz: 590 W
  • NENNSTROM: at 50 Hz: 2,9 A
    at 60 Hz: 3,4 A
  • Starting current: 11 A max.
  • Authorization: CE
  • Weight: 42 kg
  • Dimensions: Width : 400 mm  Height : 900 mm  Depth : 210 mm
  • Surface: Powder coating RAL 7035, texture finish
  • SICHERUNG: 6 AT
  • type: K1000F-RD

Notice

  • Power consumption and useful cooling capacity specifications relate to L35-L35 according to DIN EN 14511.
Air Conditioners with Filter and Compact Controller
Air Conditioners with Filter and Compact Controller
External fan operates only when cooling, which avoids unnecessary noise and pollution.
The temperature is set at the factory to +35 °C. It can be field-adjusted after removal of the cover panel, or for devices equipped with a display, from the outside.
A control line for the door switch, separately connected for units with a cooling capacity of 800 W or more, permits remote ON/OFF switching of the unit without power disconnect. General fault signal as potential-free changeover contact fed out in…

Remember
K1000F-RD
850 / 960 W
230 V AC
CE
Compact Controller
external mounting
Sheet steel
K1000FD-RD
980 W
230 V AC
CE
Compact Controller
external mounting
Sheet steel
K1500FD-RD
1550 W
230 V AC
CE
Compact Controller
external mounting
Sheet steel
K1500FD-RD
1500 W
230 V AC
CE
Compact Controller
external mounting
Stainless steel
K2600FD-RD
2600 W
400 V AC 3~
CE
Compact Controller
external mounting
Sheet steel
