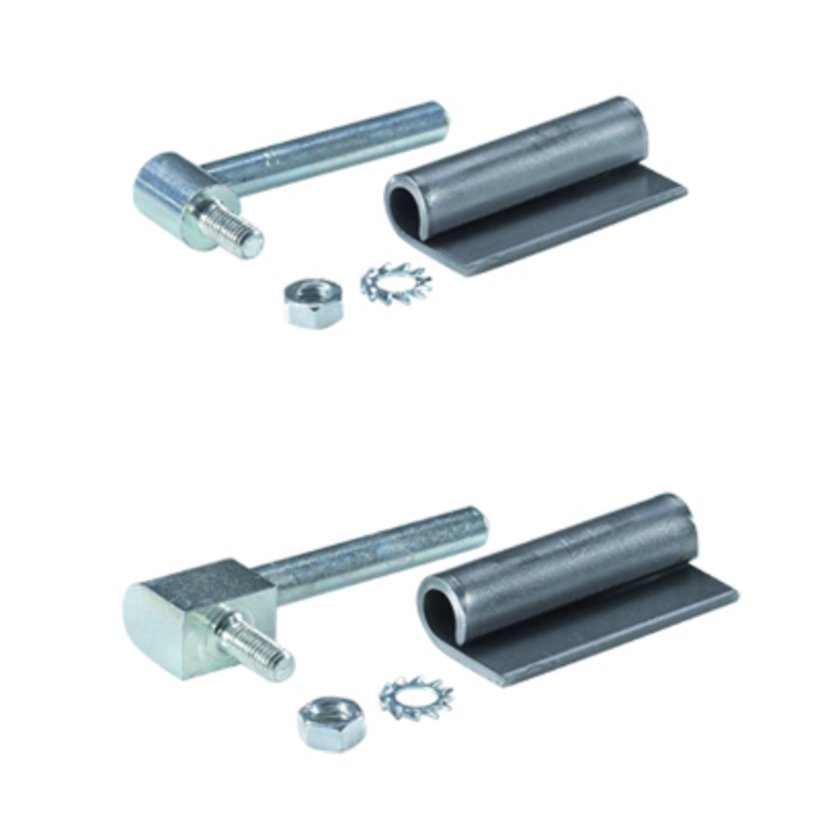

Hinge with hinge belt, detachable

3080-9215-10-02

Hinge with hinge belt, detachable

  • Fixation on frame connector: for screwing on
  • Fixation on door: for spotting on
  • For overlaying doors

Product description

External hinge

Technical data

  • Article number: 3080-9215-10-02
  • PRODUKTGRUPPENNAMEEBENE4: External hinges
  • Material: Sheet steel
  • Surface: Galvanized
  • Material and surface: of axis: steel nickel-plated; nuts and serrated lock washer: galvanized steel
  • Hinge bearing from: flat material
  • Thread length L: 10 mm
  • Door opening angle: 180°

Notice

  • You will find single components at Accessories Hinges
  • 1 set with 20 hinges with fixing material

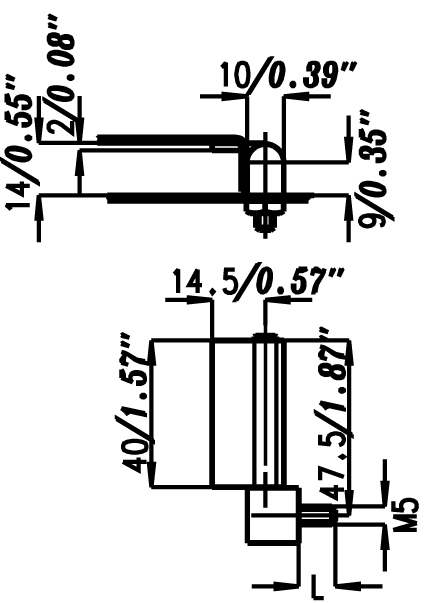

CAD data and other illustrations:
Hinge with hinge belt, detachable
Hinge with hinge belt, detachable
External hinge

Remember
Sheet steel
Galvanized
10 mm
flat material
Sheet steel
Galvanized
10 mm
flat material
Sheet steel
Galvanized
40 mm
flat material
Sheet steel
Galvanized
40 mm
flat material
Sheet steel
Galvanized
10 mm
round material
Sheet steel
Galvanized
10 mm
round material
