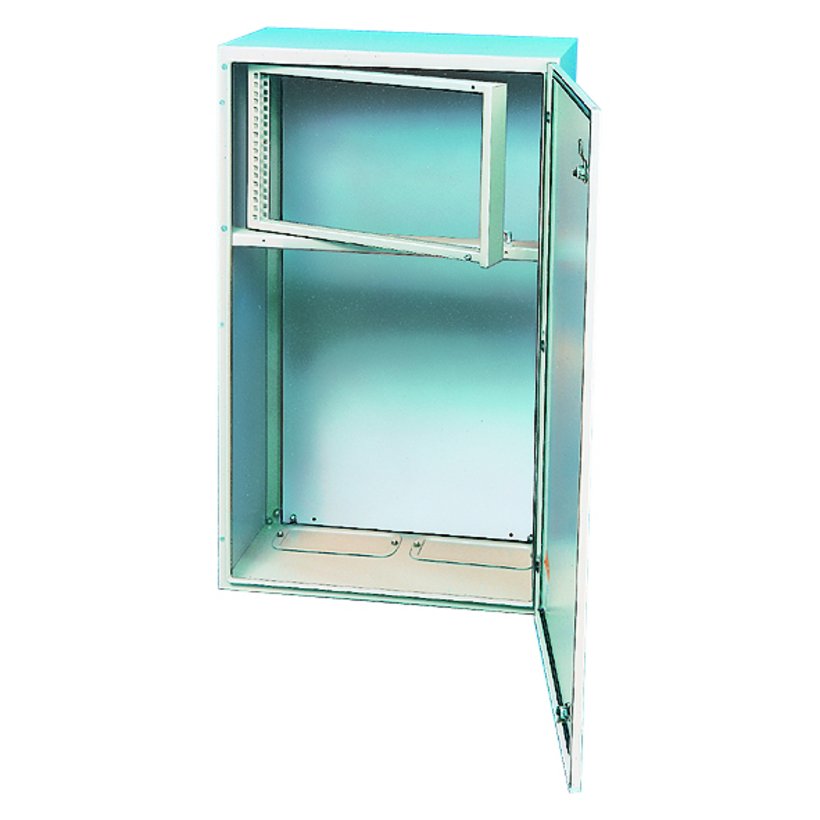

Swing Frame
Product description
19" swivelling frame suitable for wallmount enclosure and häwa control enclosures with 600 mm width.
Connection of protective earth conductor according to DIN EN 61439-1, connection on frame.
Opening angle 120° or 180 °. Mounting bars, installation-ready (Swivel parts for 180° paning).
Lock: casement fastener with 3 mm dual-bit lock.
Left-hand or right-hand hinging.
Technical data
-
Article number: 0360-7003-60-07
-
Material: Sheet steel 1,5 mm / 16 ga
-
Height: 217 mm
-

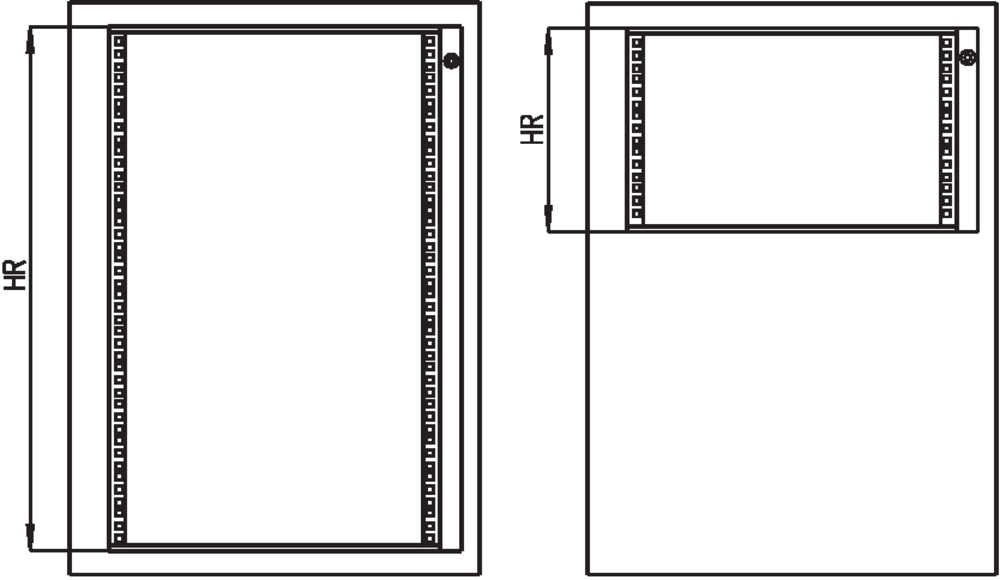

HR: 165 mm
-
HE: 3
-
Distance between fixing holes: 154 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Maximum installation depth: 240 mm

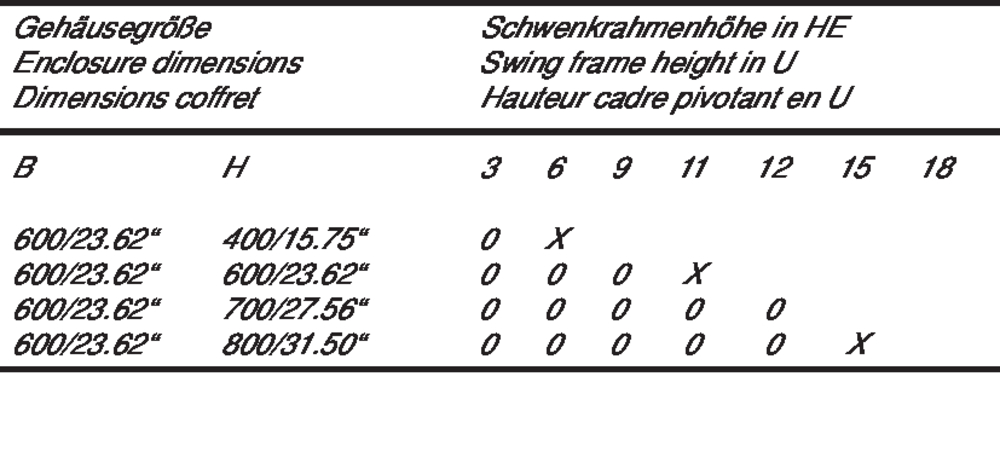

Notice
- Only for 600 mm/23.62" wide enclosures
- 1 swing frame complete with mounted supporting bars, and fasteners.
0335-6010-49-07
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-17
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
3331-6040-20-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
3331-6040-20-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
3331-6040-35-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
without mounting plate
3331-6040-35-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
with mounting plate
3331-6060-20-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
3331-6060-20-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
3331-6060-35-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
without mounting plate
3331-6060-35-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
with mounting plate
3331-6060-40-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
without mounting plate
3331-6060-40-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
with mounting plate
3331-6070-20-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
700 mm
Depth
200 mm
Type
without mounting plate
3331-6070-20-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
700 mm
Depth
200 mm
Type
with mounting plate
3331-6080-20-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
3331-6080-20-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
3331-6080-30-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
3331-6080-30-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
3331-6080-40-06
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
3331-6080-40-16
Wall-mount enclosure EMC, sheet steel 1 door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
3331-6040-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6040-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
400 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-35-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-35-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
350 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6060-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6070-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
700 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6070-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
700 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-20-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-20-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
200 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-30-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-30-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
300 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-40-07
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
3331-6080-40-17
Wall-mount enclosures series 33 sheet steel, 1 door
Width
600 mm
Height
800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP66
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Type 1, 2, 5, 12, 4; Optional Type 3, 3R
Approval
cULus
